11

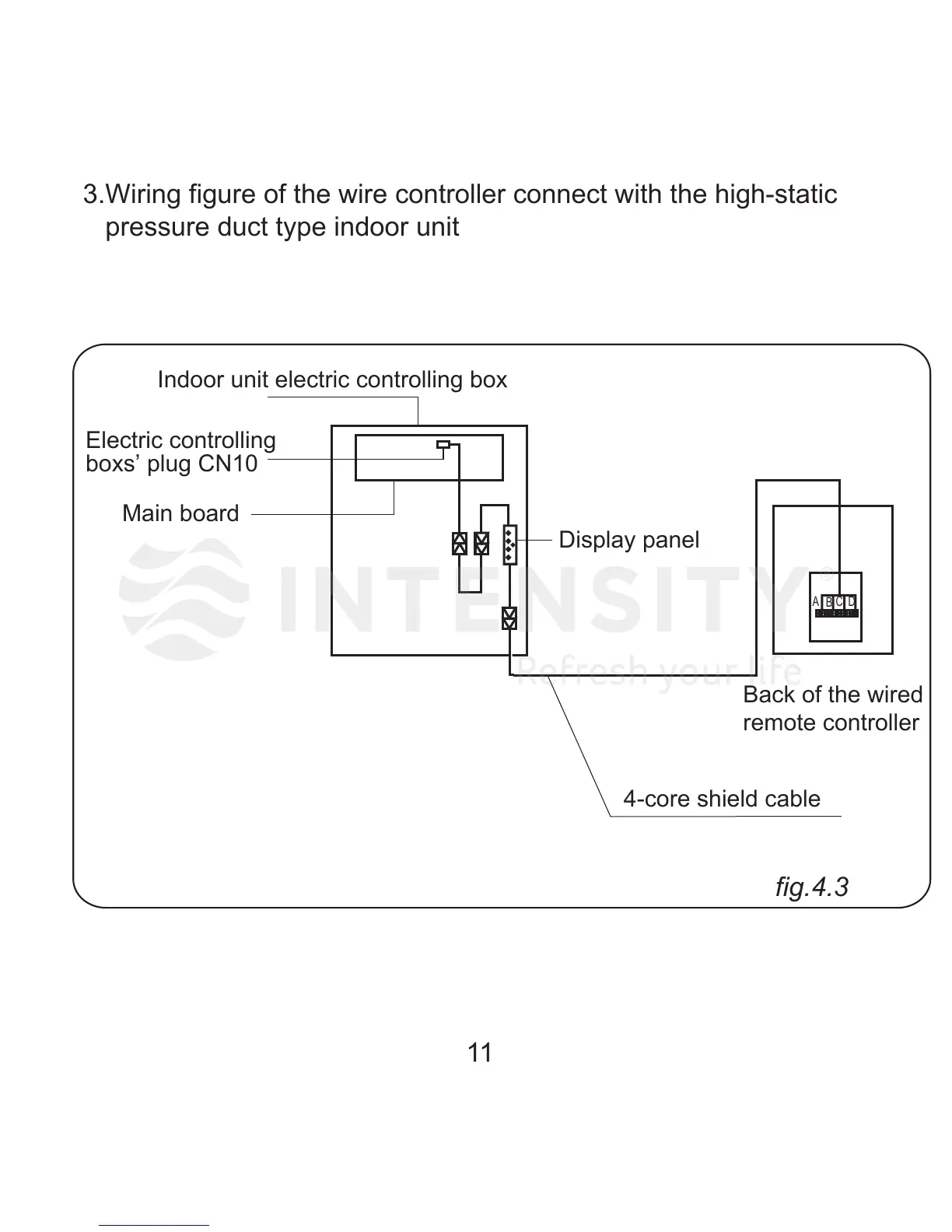

3.Wiring figure of the wire controller connect with the high-static
pressure duct type indoor unit
A
B
C D
fig.4.3
Electric controlling
boxs’ plug CN10
Main board
Display panel
Back of the wired
remote controller
Indoor unit electric controlling box
4-core shield cable
