12

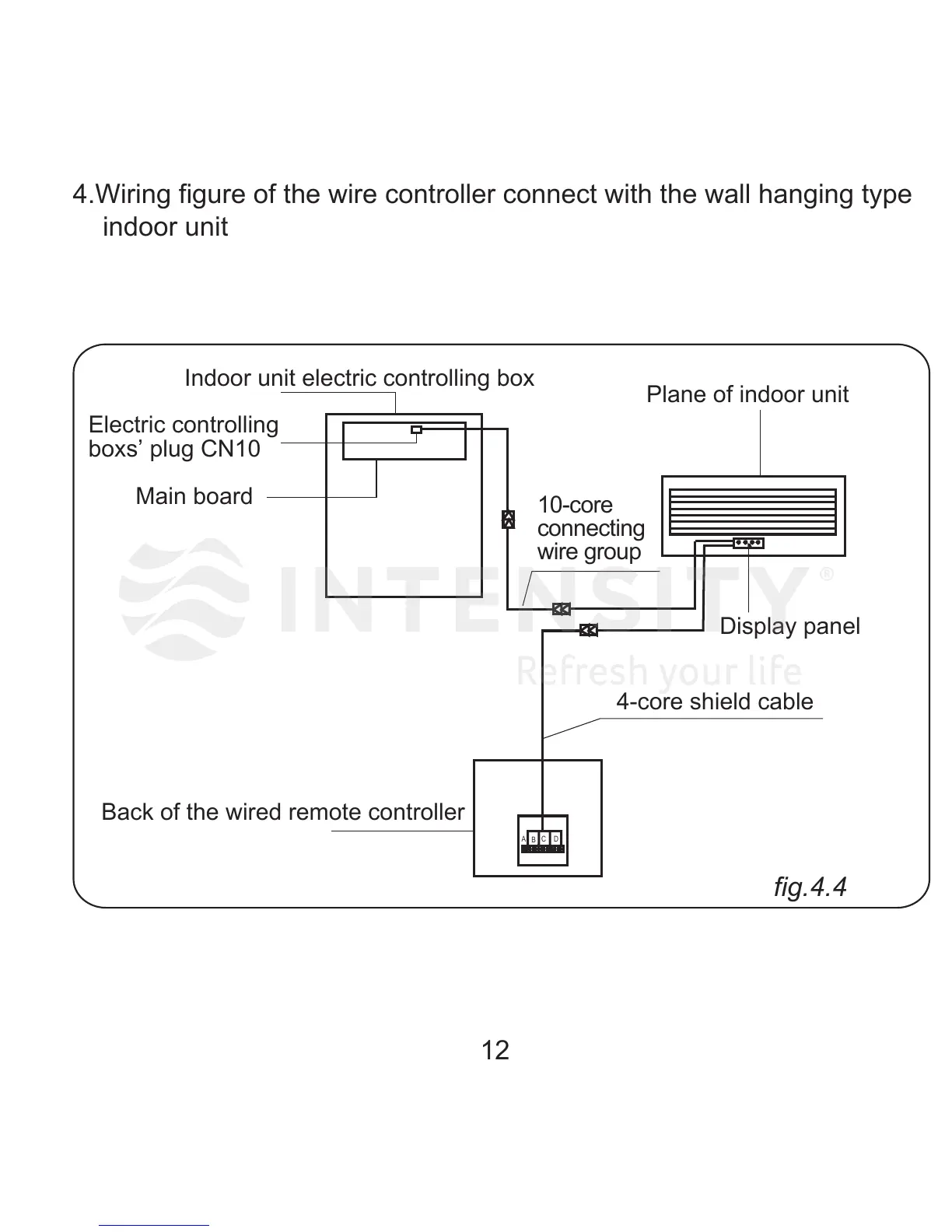

4.Wiring figure of the wire controller connect with the wall hanging type
indoor unit
fig.4.4
A
B
C D
Indoor unit electric controlling box
Electric controlling
boxs’ plug CN10
Main board
10-core
connecting
wire group
Plane of indoor unit
Display panel
Back of the wired remote controller
4-core shield cable
