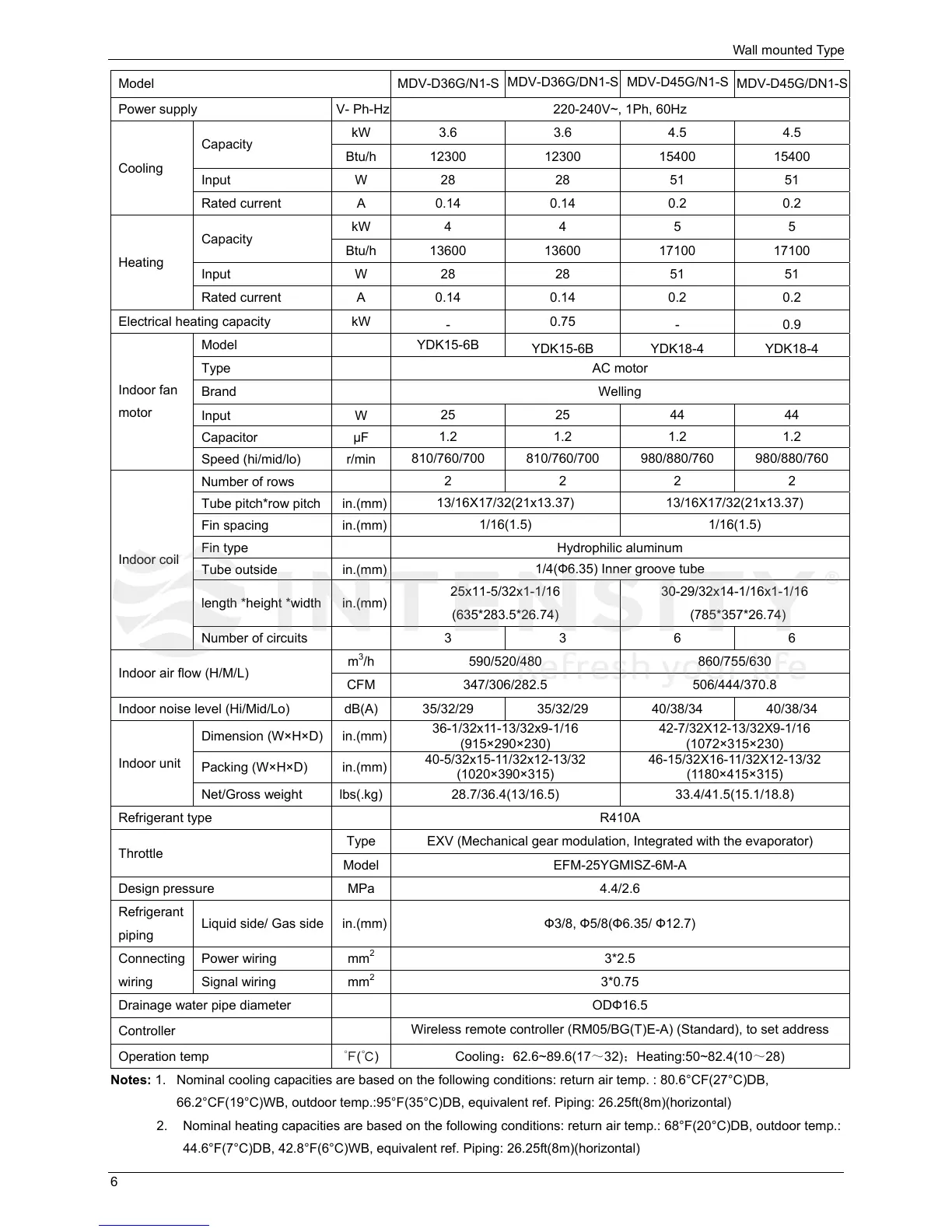

Wall mounted Type

Model MDV-D36G/N1-S
MDV-D36G/DN1-S MDV-D45G/N1-S
MDV-D45G/DN1-S
Power supply V- Ph-Hz 220-240V~, 1Ph, 60Hz
Cooling
Capacity
kW 3.6 3.6 4.5 4.5
Btu/h
12300 12300 15400 15400
Input W 28 28 51 51
Rated current A 0.14 0.14 0.2 0.2
Heating
Capacity
kW
4 4 5 5
Btu/h 13600 13600 17100 17100
Input W 28 28 51 51
Rated current A
0.14 0.14 0.2 0.2
Electrical heating capacity kW
-
0.75
- 0.9
Indoor fan
motor
Model  YDK15-6B
YDK15-6B YDK18-4 YDK18-4
Type  AC motor
Brand  Welling
Input W
25 25 44 44
Capacitor ȝF
1.2 1.2 1.2 1.2
Speed (hi/mid/lo) r/min
810/760/700 810/760/700 980/880/760 980/880/760
Indoor coil
Number of rows 
2 2 2 2
Tube pitch*row pitch in.(mm)
13/16X17/32(21x13.37) 13/16X17/32(21x13.37)
Fin spacing in.(mm)
1/16(1.5) 1/16(1.5)
Fin type  Hydrophilic aluminum
Tube outside in.(mm)
1/4(Ɏ6.35) Inner groove tube
length *height *width in.(mm)
25x11-5/32x1-1/16
(635*283.5*26.74)
30-29/32x14-1/16x1-1/16
(785*357*26.74)
Number of circuits  3 3 6 6
Indoor air flow (H/M/L)
m
3
/h
590/520/480 860/755/630
CFM 347/306/282.5 506/444/370.8
Indoor noise level (Hi/Mid/Lo) dB(A) 35/32/29 35/32/29 40/38/34 40/38/34
Indoor unit
Dimension (W×H×D) in.(mm)
36-1/32x11-13/32x9-1/16
(915×290×230)
42-7/32X12-13/32X9-1/16
(1072×315×230)
Packing (W×H×D) in.(mm)
40-5/32x15-11/32x12-13/32
(1020×390×315)
46-15/32X16-11/32X12-13/32
(1180×415×315)
Net/Gross weight lbs(.kg) 28.7/36.4(13/16.5) 33.4/41.5(15.1/18.8)
Refrigerant type  R410A
Throttle
Type EXV (Mechanical gear modulation, Integrated with the evaporator)
Model EFM-25YGMISZ-6M-A
Design pressure MPa 4.4/2.6
Refrigerant
piping
Liquid side/ Gas side in.(mm) Ɏ3/8, Ɏ5/8(Ɏ6.35/ Ɏ12.7)
Connecting
wiring
Power wiring mm
2
3*2.5
Signal wiring mm
2
3*0.75
Drainage water pipe diameter  ODɎ16.5
Controller 
Wireless remote controller (RM05/BG(T)E-A) (Standard), to set address
Operation temp
ē(đ) Cooling˖62.6~89.6(1732)˗Heating:50~82.4(1028)
1RWHV1. Nominal cooling capacities are based on the following conditions: return air temp. : 80.6°CF(27°C)DB,
66.2°CF(19°C)WB, outdoor temp.:95°F(35°C)DB, equivalent ref. Piping: 26.25ft(8m)(horizontal)
2. Nominal heating capacities are based on the following conditions: return air temp.: 68°F(20°C)DB, outdoor temp.:
44.6°F(7°C)DB, 42.8°F(6°C)WB, equivalent ref. Piping: 26.25ft(8m)(horizontal)
