Wall mounted Type 


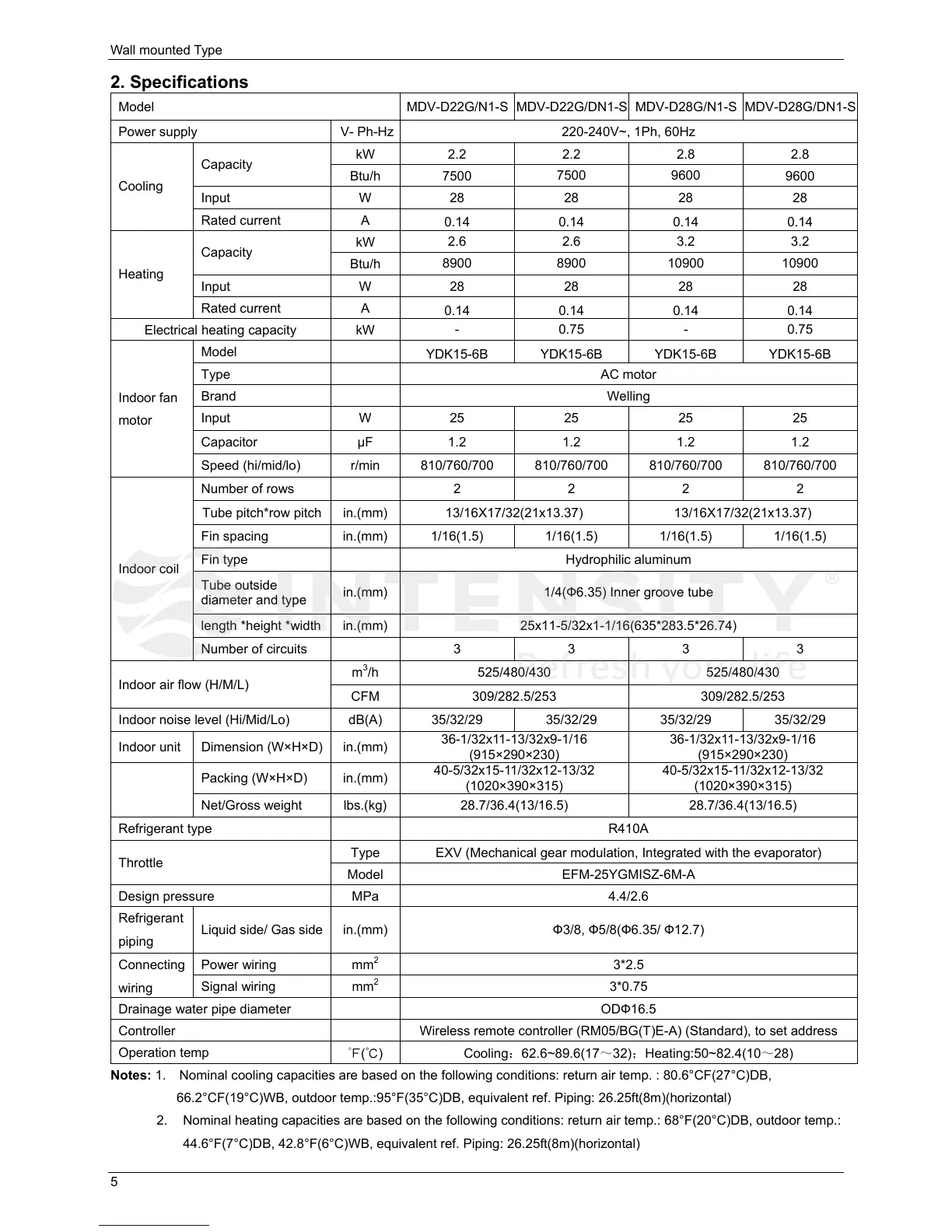

6SHFLILFDWLRQV
Model MDV-D22G/N1-S MDV-D22G/DN1-S MDV-D28G/N1-S MDV-D28G/DN1-S
Power supply V- Ph-Hz 220-240V~, 1Ph, 60Hz
Cooling
Capacity
kW 2.2 2.2 2.8 2.8
Btu/h 7500
7500 9600
9600
Input W 28 28 28 28
Rated current A
0.14 0.14 0.14 0.14
Heating
Capacity
kW
2.6 2.6 3.2 3.2
Btu/h
8900 8900 10900 10900
Input W 28 28 28 28
Rated current A
0.14 0.14 0.14 0.14
Electrical heating capacity kW
- 0.75 - 0.75
Indoor fan
motor
Model 
YDK15-6B YDK15-6B YDK15-6B YDK15-6B
Type  AC motor
Brand  Welling
Input W 25 25 25 25
Capacitor ȝF 1.2 1.2 1.2 1.2
Speed (hi/mid/lo) r/min
810/760/700 810/760/700 810/760/700
810/760/700
Indoor coil
Number of rows  2 2 2 2
Tube pitch*row pitch in.(mm) 13/16X17/32(21x13.37) 13/16X17/32(21x13.37)
Fin spacing in.(mm) 1/16(1.5) 1/16(1.5) 1/16(1.5) 1/16(1.5)
Fin type  Hydrophilic aluminum
Tube outside
diameter and type
in.(mm) 1/4(Ɏ6.35) Inner groove tube
length *height *width in.(mm) 25x11-5/32x1-1/16(635*283.5*26.74)
Number of circuits  3 3 3 3
Indoor air flow (H/M/L)
m
3
/h 525/480/430 525/480/430
CFM 309/282.5/253 309/282.5/253
Indoor noise level (Hi/Mid/Lo) dB(A) 35/32/29 35/32/29 35/32/29 35/32/29
Indoor unit Dimension (W×H×D) in.(mm)
36-1/32x11-13/32x9-1/16
(915×290×230)
36-1/32x11-13/32x9-1/16
(915×290×230)
Packing (W×H×D) in.(mm)
40-5/32x15-11/32x12-13/32
(1020×390×315)
40-5/32x15-11/32x12-13/32
(1020×390×315)
Net/Gross weight lbs.(kg) 28.7/36.4(13/16.5) 28.7/36.4(13/16.5)
Refrigerant type  R410A
Throttle
Type EXV (Mechanical gear modulation, Integrated with the evaporator)
Model EFM-25YGMISZ-6M-A
Design pressure MPa 4.4/2.6
Refrigerant
piping
Liquid side/ Gas side in.(mm) Ɏ3/8, Ɏ5/8(Ɏ6.35/ Ɏ12.7)
Connecting
wiring
Power wiring mm
2
3*2.5
Signal wiring mm
2
3*0.75
Drainage water pipe diameter  ODɎ16.5
Controller  Wireless remote controller (RM05/BG(T)E-A) (Standard), to set address
Operation temp
ē(đ) Cooling˖62.6~89.6(1732)˗Heating:50~82.4(1028)
1RWHV1. Nominal cooling capacities are based on the following conditions: return air temp. : 80.6°CF(27°C)DB,
66.2°CF(19°C)WB, outdoor temp.:95°F(35°C)DB, equivalent ref. Piping: 26.25ft(8m)(horizontal)
2. Nominal heating capacities are based on the following conditions: return air temp.: 68°F(20°C)DB, outdoor temp.:
44.6°F(7°C)DB, 42.8°F(6°C)WB, equivalent ref. Piping: 26.25ft(8m)(horizontal)
