Wall mounted Type



'LPHQVLRQ

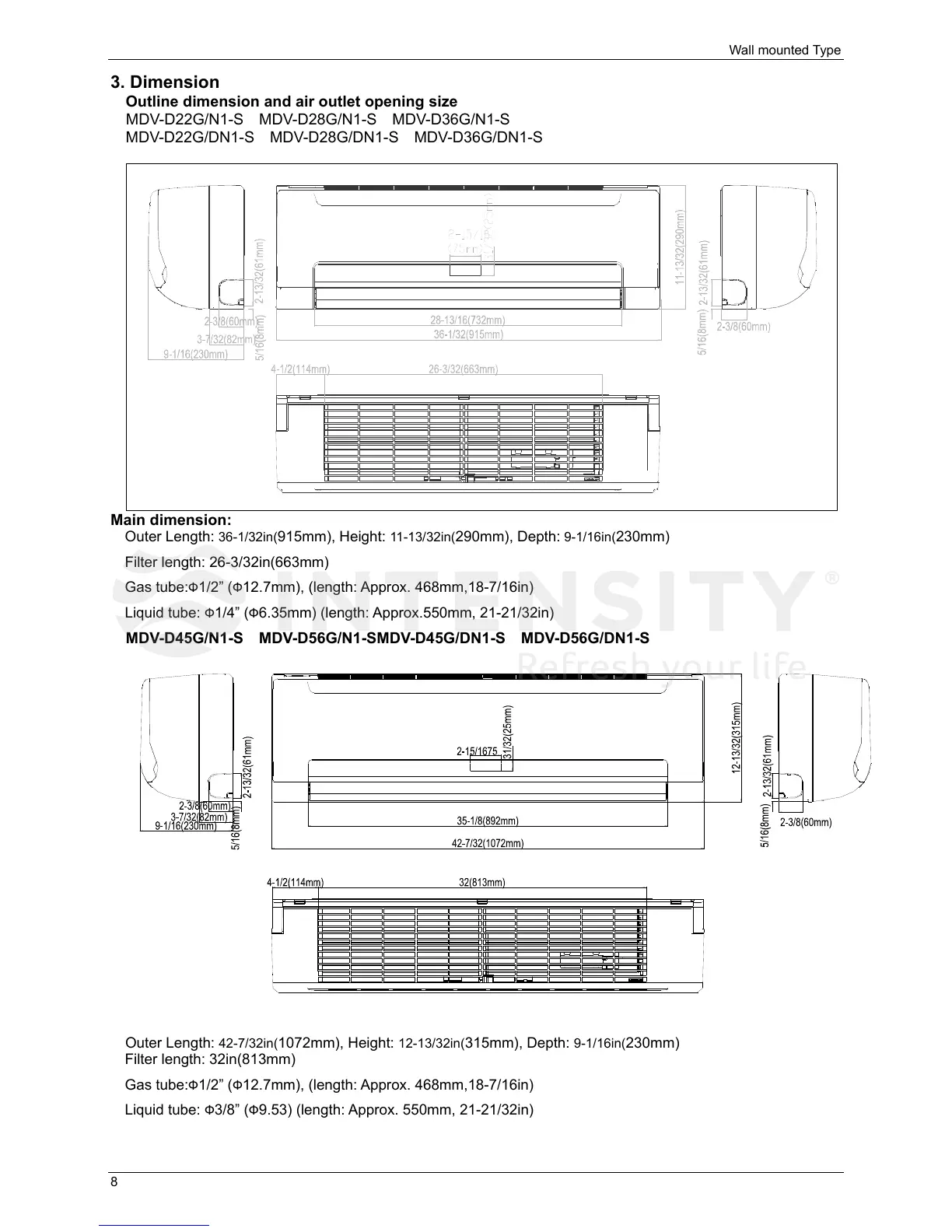

2XWOLQHGLPHQVLRQDQGDLURXWOHWRSHQLQJVL]H

MDV-D22G/N1-S MDV-D28G/N1-S MDV-D36G/N1-S

MDV-D22G/DN1-S MDV-D28G/DN1-S MDV-D36G/DN1-S



0DLQGLPHQVLRQ

Outer Length:

36-1/32in(

915mm), Height:

11-13/32in(

290mm), Depth:

9-1/16in(

230mm)

Filter length: 26-3/32in(663mm)

Gas tube:

1/2” (

12.7mm), (length: Approx. 468mm,18-7/16in)

Liquid tube:

1/4” (

6.35mm) (length: Approx.550mm, 21-21/32in)

0'9'*16  0'9'*160'9'*'16  0'9'*'16



Outer Length:

42-7/32in(

1072mm), Height:

12-13/32in(

315mm), Depth:

9-1/16in(

230mm)

Filter length: 32in(813mm)

Gas tube:

1/2” (

12.7mm), (length: Approx. 468mm,18-7/16in)

Liquid tube:

3/8” (

9.53) (length: Approx. 550mm, 21-21/32in)
