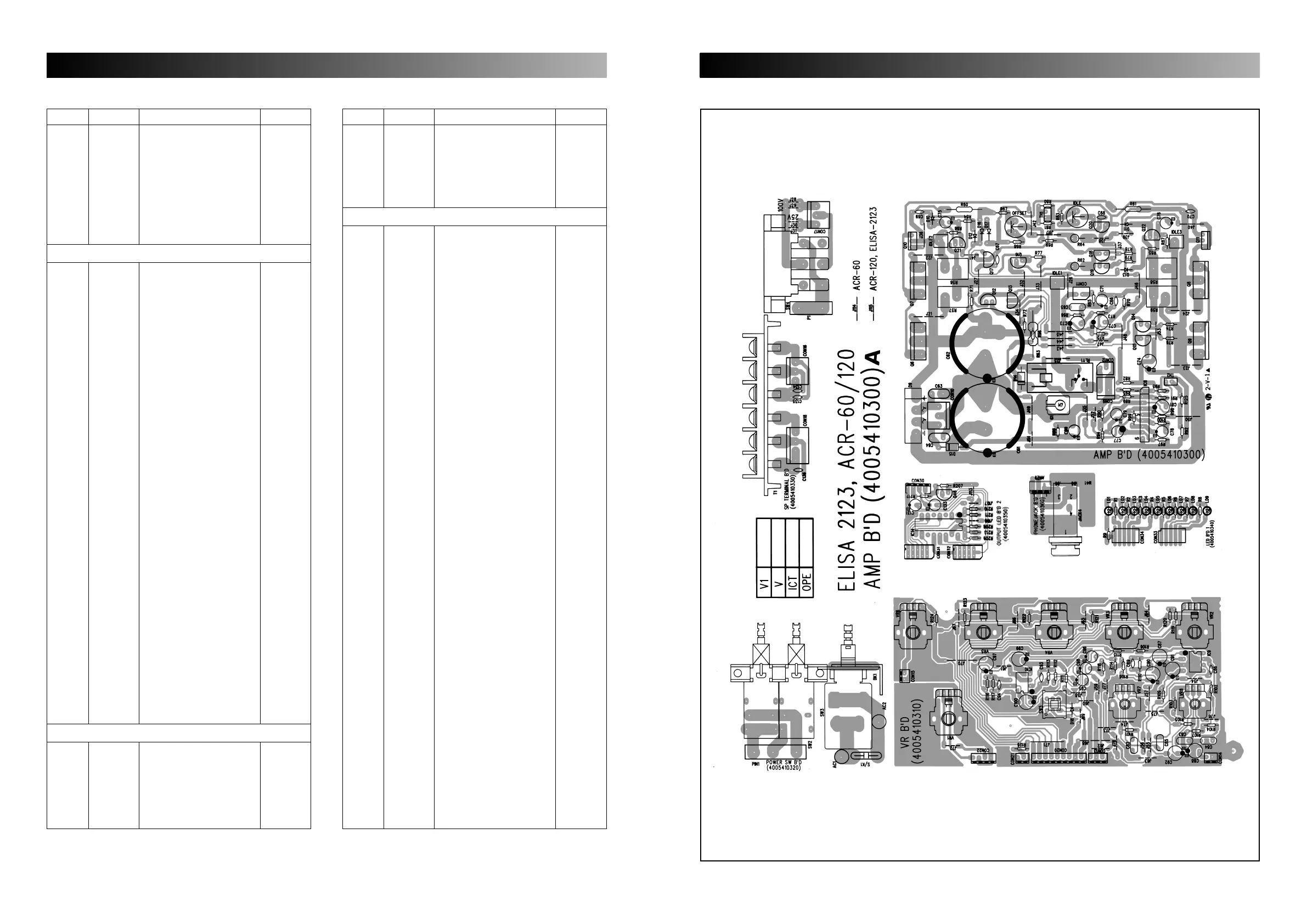

TOP AND BOTTOM VIEW OF P.C. BOARD
CN305 4428536329 WAFER FMN-BTRK-29P/IMM.JST CON 29P
CN306 4428595011 LW5267/LWB0640/2.5MM-11P CON 11P
CN310 4428532204 WAFER S04B-EH/2.5MM/ANGLE:JST CON 4P
D301-304 2058304100 DIODE IN4148 1N4148
IC301 2128000835 IC AN8806SB MATSUSHITA AN8806SB
IC302 2128220435 IC AN8389SR MATSUSHITA AN8389SB
IC303 2128514055 IC MN662720RB MATSUSHITA MN662720RB
IC304 2128820535 IC SM5878AM NPC SM5878AM
IC305 2128121007 IC CPU KS88P2432QW SAMSUNG KS88P2432
IC306-307 2118010432 IC NJM2068DD JRC NJM 2068DD
IC308-309 2118020710 IC TA7291S TOSHIBA TA7291S
IC310 2138010979 IC M51953B MITSUBISHI M51953BL
L301-302 2648099990 COIL INDUCTOR 10UH CDC-9300 100K
Q301, Q304, 2008606113-T TR PNP KTA 1271(A1515) KEC KTA 1271Y
Q307
Q302, 2008606998-T TR NPN KTD 1302 KEC ONLY 2SD 1302R
Q305-306
Q303 2008613954-T TR DTC 124ES DTC 124ES
R301-302, 3009124973 RES CF 120K 1/5W J N 120K
R331
R303-306 3009183973 RES CF 18K 1/5W J N 18K
R308 3009824973 RES CF 820K 1/5W J N 820K
R307, R344, 3009470973 RES CF 47 1/5W J N 47
R373, R375
R309 3009823973 RES CF 82K 1/5W J N 82K
R310-311 3009272973 RES CF 2.7K 1/5W J N 2.7K
R312 OPEN OPEN OPEN
R313 3009123973 RES CF 12K 1/5W J N 12K
R314, R317 3009393973 RES CF 39K 1/5W J N 39K
R315, R323, 3009103973 RES CF 10K 1/5W J N 10K
R332, R337,
R339, R342,
R366-367,
R379-386
R316, 3009471973 RES CF 470 1/5W J N 470
R333-335,
R340, R346,
R371-372
R318, R376 3009472973 RES CF 4.7K 1/5W J N 4.7K
R319, R322 3009224973 RES CF 220K 1/5W J N 220K
R320-321, 3009223973 RES CF 22K 1/5W J N 22K
R341, R353,
R355, R364
R324, R348, 3009562973 RES CF 5.6K 1/5W J N 5.6K
R356, R360,
R369
R328 3009155973 RES CF 1.5M 1/5W J N 1.5M
R329, 3009681973 RES CF 680 1/5W J N 680
R351-352
R330 3039100572-F RES MO 10 2W J N 10 2W
R336, R338, 3009102973 RES CF 1K 1/5W J N 1K
R343, R368,
R370, R374,
R377-378
R345, R357 3009682973 RES CF 6.8K 1/5W J N 6.8K
R347, R365 3009000973 RES CF 0 1/5W J N 0
R350, R362 3009101973 RES CF 100 1/5W J N 100
R354, R363 3009203973 RES CF 20K 1/5W J N 20K
R358-359 3009753973 RES CF 75K 1/5W J N 75K
R387 OPEN OPEN OPEN
R388 1508400501 JUMP WIRE (0.5/25M/M) short
X301 3908101060 CRYSTAL 16.9344MHz KD6586FFB
X302 3908101080 CRYSTAL 4.19MHz 4.19MHz
AN306 4353983802 CON ASS’Y 11P 90MM CON 11P
AN305 4428536329 CON ASS’Y 4P 100MM CON 4P
LD301-318 2308232222-T SLR 34URF 25 LED
LCD301 2338170394 LCD KXN29150DAN CD KEC KXN2915DAN
S301 4628985710 TACT (5MM) SKHV10906A (KBW89) REPEAT
S302 4628985710 TACT (5MM) SKHV10906A (KBW89) CLEAR
S303 4628985710 TACT (5MM) SKHV10906A (KBW89) MEMORY
S304 4628985710 TACT (5MM) SKHV10906A (KBW89) DISPLAY
S305 4628985710 TACT (5MM) SKHV10906A (KBW89) RESET
S306 4628985710 TACT (5MM) SKHV10906A (KBW89) STOP
S307 4628985710 TACT (5MM) SKHV10906A (KBW89) PLAY
S308 4628985710 TACT (5MM) SKHV10906A (KBW89) S-FF
S309 4628985710 TACT (5MM) SKHV10906A (KBW89) S-REW
S310 4628985710 TACT (5MM) SKHV10906A (KBW89) FF
S311 4628985710 TACT (5MM) SKHV10906A (KBW89) REW
S312 4628985710 TACT (5MM) SKHV10906A (KBW89) DISC
S313 4628985710 TACT (5MM) SKHV10906A (KBW89) MODE
S314 4628985710 TACT (5MM) SKHV10906A (KBW89) RANDOM
AN307 4353981003 CON ASS’Y 4P 100MM CON 4P
S315 4628985710 TACT (5MM) SKHV10906A (KBW89) DISC1
S316 4628985710 TACT (5MM) SKHV10906A (KBW89) DISC2
S317 4628985710 TACT (5MM) SKHV10906A (KBW89) DISC3
Ref No. Part No. ValueDescriptionRef No. Part No. ValueDescription
CD DISPLAY B’D (4003484120)
CD EJECT B’D (4003484110)
VR B’D (4005410310)
12 13
