1
AMP SECTION

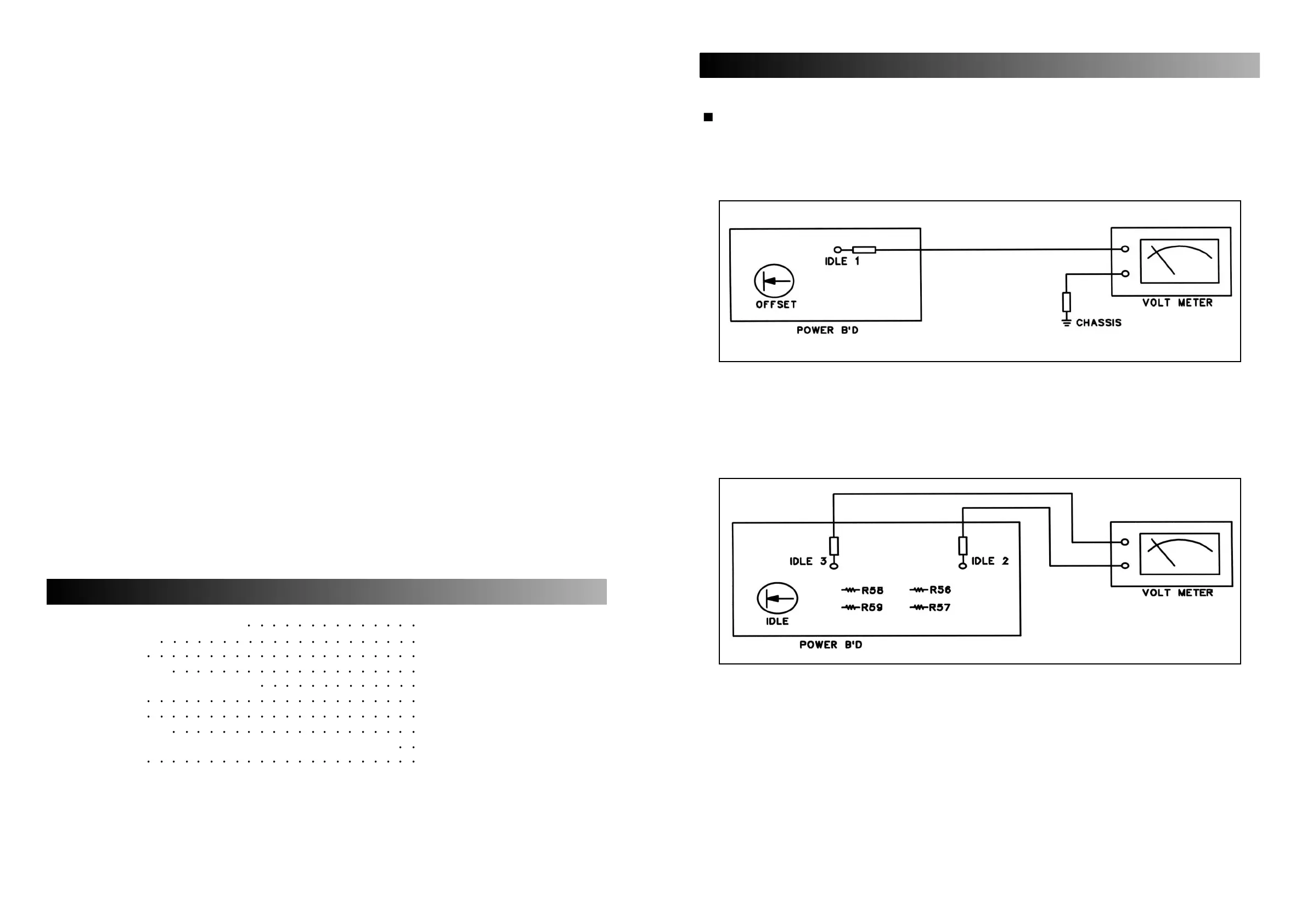

1. OFF SET VOLTAGE
A. Setting
Set the master volume controls minimum.
B. Connection
C. Adjustment
Control OFFSET until voltmeter is the “0” position.
2. IDLE CURRENT
A. Setting
Set the master volume controls minimum.
B. Connection
C. Adjustment
Adjust IDLE so that the current through the R56, R57, R58, R59 become 10 milliampere. When that
voltage across the IDLE2 TO IDLE3 becomes 10 millivolt, the current becomes 10 milliampere.
ELECTRICAL ADJUSTMENT PROCEDURE
Electrical Adjustment Procedure 1, 2, 3
Micom Data (CD) 4, 5, 6, 7
Specifications
8
Electrical Parts List
9, 10, 11, 12
Top and Bottom View of P.C. Board
13, 14, 15
Wiring Diagram 16
Block Diagram 17
Schematic Diagram
18, 19, 20, 21, 22, 23
Exploded View of Cabinet & Chassis / Mechanical Parts List
24, 25
Ass’y Drawing 26, 27
CONTENTS
