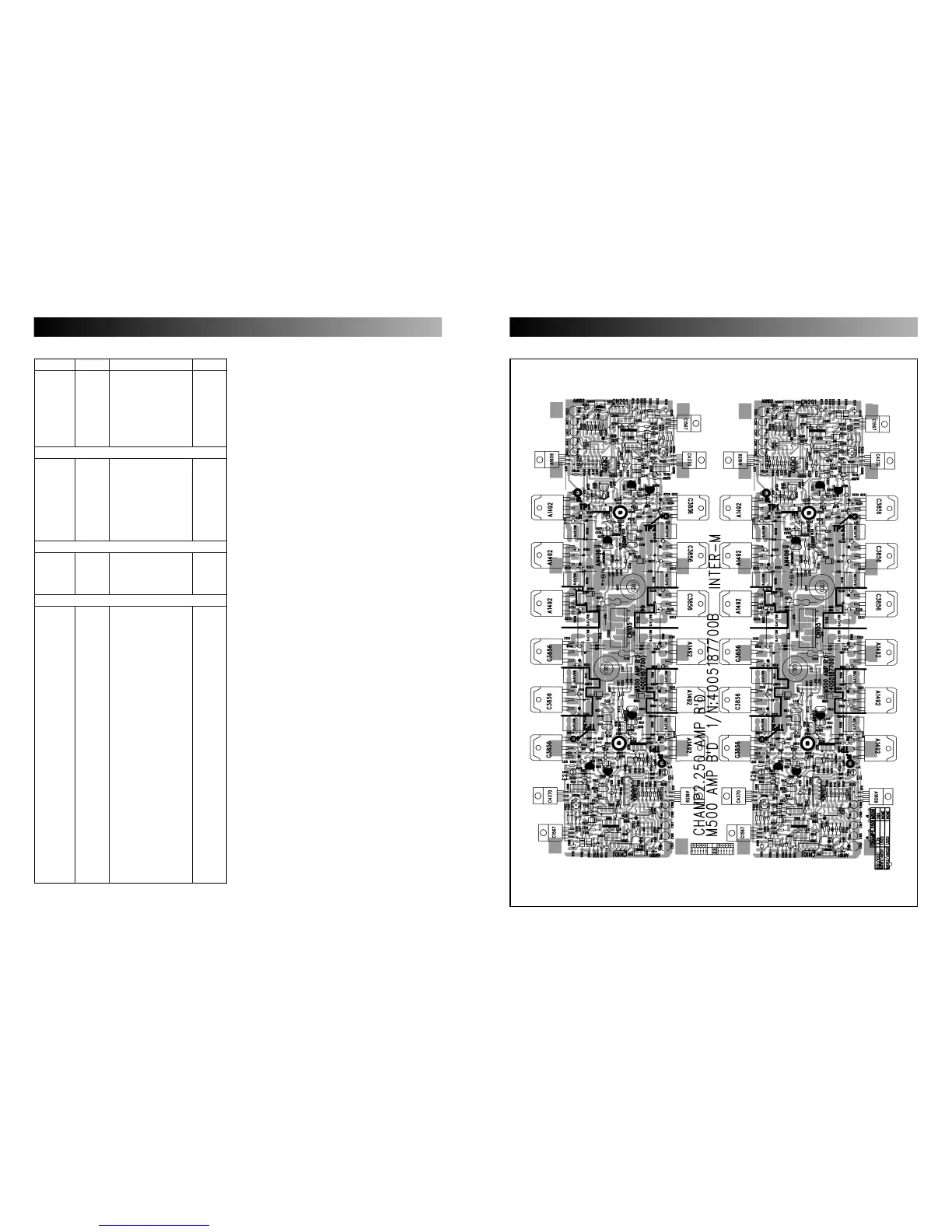

TOP AND BOTTOM VIEW OF P.C. BOARD
98
C403 C405 C453 3409210071-T CAP AF RSG 10UF 50V 5 P 10/50
C455
C401-402 3409247971-T CAP AF RSG 4.7UF 50V 5 P 4.7/50
C451-452
C404 C454 3609104120-T CAP MA 0.1UF 100V J 0.1/100(M)
AN408 AN458 4355466703 WIRE ASS’Y 5P 100MM ASS’Y6P
AN103 AN203 4355801007 CON ASS’Y 6P ASS’Y6P
CN406 CN456 4428595002 LW5267/LWB0640/2.5MM-02P WAFER/2P
CN403-405 4428595003 LW5267/LWB0640/2.5MM-03P WAFER/3P
CN401-402 4428595005 LW5267/LWB0640/2.5MM-05P WAFER/5P
SW401 SW451 4628992410 SW PUSH SPUN19X1M011 (SUA29) LIMIT SW
Q409 Q459 2008606108-T TR NPN KTC2240BL (KTC 3200BL) C2240
D404 D454 2058304100 DIODE IN4148M 1N 4148
IC402 2118010232 IC NJM072D JRC TL072
R412 R462 3004100953 RES CF 100 1/5W FN SMA-4000 100
R415 R465 3009105973 RES CF 1M 1/5W J N 1M
R414 R464 3009334973 RES CF 330K 1/5W J N 330K
R413 R463 3009822973 RES CF 8.2K 1/5W J N 8.2K
C407 C457 3409810971-T CAP AF NP 1UF 50V 6 P 1/50
C406 C456 3509151231-A CAP CE B 150PF 50V K AXIAL 150P
C408 C458 3539473531-A CAP CE YF 47000PF 50V Z AXIAL 47000P
CN407 CN457 4428595004 LW5267/LWB0640/2.5MM-04P WAFER/4P
CN408 CN458 4428595005 LW5267/LWB0640/2.5MM-05P WAFER/5P
LD603-604 2300050105 LED LTL-307E-041A LITEON R5RE
LD601 2300052105 LED LTL-307G-041A LITEON R5GR
LD602 2301053105 LED SLA-114L SHINYOUNG (ORG) R5OR
R601-606 3009392973 RES CF 3.9K 1/5W J N 3.9K
R607-610 3009472973 RES CF 4.7K 1/5W J N 4.7K
AN401 4355824503 CON ASS’Y 5P ASS’Y5P
LD703-704 2300050105 LED LTL-307E-041A LITEON R5RE
LD701 2300052105 LED LTL-307G-041A LITEON R5GR
LD702 2301053105 LED SLA-114L SHINYOUNG (ORG) R5OR
R701-706 3009392973 RES CF 3.9K 1/5W J N 3.9K
R707-710 3009472973 RES CF 4.7K 1/5W J N 4.7K
AN402 4355824503 CON ASS’Y 5P ASS’Y5P
Ref No. Part No. ValueDescription
CM7.5/10.5 BKT B’D (4005183610)
CM7.5/10.5 LED1 B’D (4005185640)
CM7.5/10.5 LED2 B’D (4005185650)
