7
EP-9216
EMERGENCY PANEL
Suggestions for Rack InstallationSuggestions for Rack Installation
1. Switch off power to the EP-9216 before installing the system.
2. Connect the Inter-M PX-9116 to the MATRIX CONNECTOR (2) on the rear panel.
3. Connect the PRE OUT jack (7) to the input of your main amplifier.
4. Connect audio output of your auto broadcasting system to the AUTO ANN input jack (6), and the DC 24V In
jack of your auto broadcasting system to the DC 24V OUT jack (1) of the EP-9216.
5. Connect the output jack of the Inter-M PW-9242N to the TIMER jack (5).
6. Connect the output of your remote pre-amp to the REMOTE INPUT jack (4) and the pre-amp of the main
broadcasting system to the PRE-AMP INPUT jack (3).
7. If using a remote mic, connect the microphone and switch to the rear panel REMOTE MIC TERMINAL (8) and
REMOTE MIC SWITCH (9).
Operating ProcedureOperating Procedure
Switch off the EP-9216 Power Switch.
Select either External mode or Internal mode (10) before installing the system.
Using the TEST SWITCH, an alarm is broadcast through the built-in speaker.
Test the microphone, setting the MIC VOLUME (6) as desired.
NOTE: The Pre-Amp Input, Remote 1 and 2 Input, Timer Input, and Auto-Ann Input are sent to the PRE OUT in
the following priority.
PRIORITY INPUT SIGNAL
1 Auto-Ann
2 Timer
3 Remote 1
4 Remote 2
5 Pre-Amp

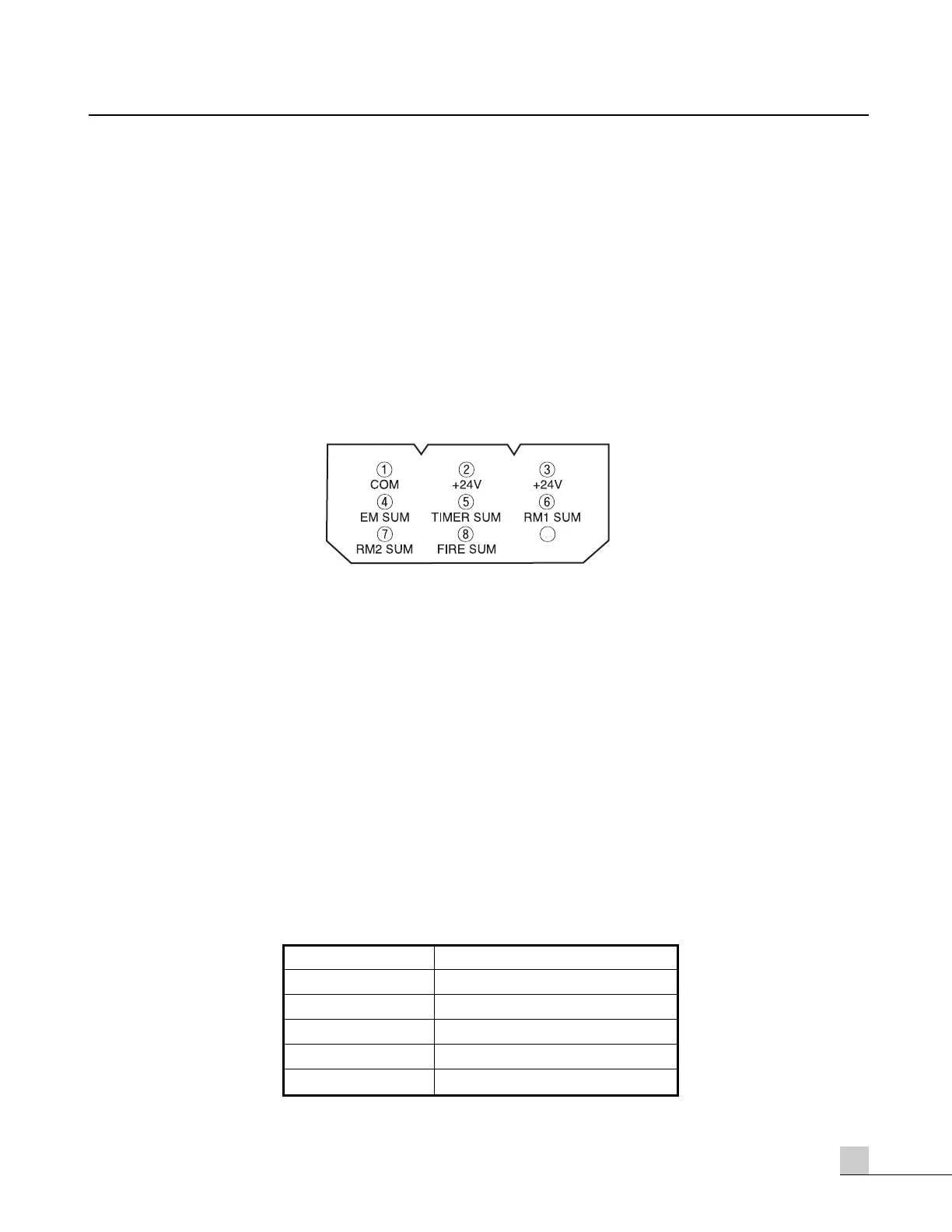

TABLE 1: MATRIX CONNECTOR PIN NO. & FUNCTION
