Inter-m MX-1424 User Manual

10

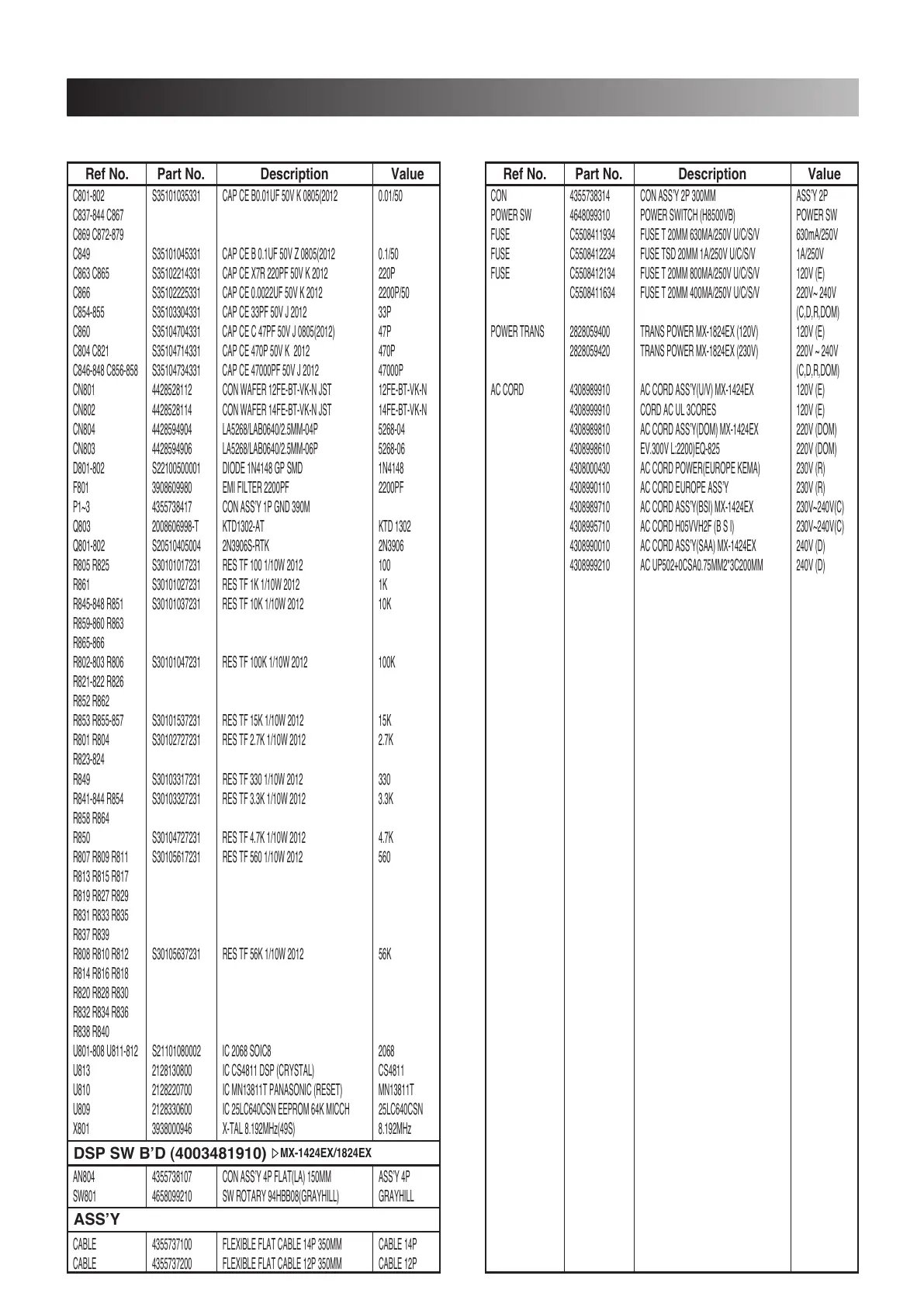

Ref No. Part No. ValueDescriptionRef No. Part No. ValueDescription
C801-802 S35101035331 CAP CE B0.01UF 50V K 0805(2012 0.01/50
C837-844 C867
C869 C872-879
C849 S35101045331 CAP CE B 0.1UF 50V Z 0805(2012 0.1/50
C863 C865 S35102214331 CAP CE X7R 220PF 50V K 2012 220P
C866 S35102225331 CAP CE 0.0022UF 50V K 2012 2200P/50
C854-855 S35103304331 CAP CE 33PF 50V J 2012 33P
C860 S35104704331 CAP CE C 47PF 50V J 0805(2012) 47P
C804 C821 S35104714331 CAP CE 470P 50V K 2012 470P
C846-848 C856-858 S35104734331 CAP CE 47000PF 50V J 2012 47000P
CN801 4428528112 CON WAFER 12FE-BT-VK-N JST 12FE-BT-VK-N
CN802 4428528114 CON WAFER 14FE-BT-VK-N JST 14FE-BT-VK-N
CN804 4428594904 LA5268/LAB0640/2.5MM-04P 5268-04
CN803 4428594906 LA5268/LAB0640/2.5MM-06P 5268-06
D801-802 S22100500001 DIODE 1N4148 GP SMD 1N4148
F801 3908609980 EMI FILTER 2200PF 2200PF
P1~3 4355738417 CON ASS’Y 1P GND 390M
Q803 2008606998-T KTD1302-AT KTD 1302
Q801-802 S20510405004 2N3906S-RTK 2N3906
R805 R825 S30101017231 RES TF 100 1/10W 2012 100
R861 S30101027231 RES TF 1K 1/10W 2012 1K
R845-848 R851 S30101037231 RES TF 10K 1/10W 2012 10K
R859-860 R863
R865-866
R802-803 R806 S30101047231 RES TF 100K 1/10W 2012 100K
R821-822 R826
R852 R862
R853 R855-857 S30101537231 RES TF 15K 1/10W 2012 15K
R801 R804 S30102727231 RES TF 2.7K 1/10W 2012 2.7K
R823-824
R849 S30103317231 RES TF 330 1/10W 2012 330
R841-844 R854 S30103327231 RES TF 3.3K 1/10W 2012 3.3K
R858 R864
R850 S30104727231 RES TF 4.7K 1/10W 2012 4.7K
R807 R809 R811 S30105617231 RES TF 560 1/10W 2012 560
R813 R815 R817
R819 R827 R829
R831 R833 R835
R837 R839
R808 R810 R812 S30105637231 RES TF 56K 1/10W 2012 56K
R814 R816 R818
R820 R828 R830
R832 R834 R836
R838 R840
U801-808 U811-812 S21101080002 IC 2068 SOIC8 2068
U813 2128130800 IC CS4811 DSP (CRYSTAL) CS4811
U810 2128220700 IC MN13811T PANASONIC (RESET) MN13811T
U809 2128330600 IC 25LC640CSN EEPROM 64K MICCH 25LC640CSN
X801 3938000946 X-TAL 8.192MHz(49S) 8.192MHz
AN804 4355738107 CON ASS’Y 4P FLAT(LA) 150MM ASS’Y 4P
SW801 4658099210 SW ROTARY 94HBB08(GRAYHILL) GRAYHILL
CABLE 4355737100 FLEXIBLE FLAT CABLE 14P 350MM CABLE 14P
CABLE 4355737200 FLEXIBLE FLAT CABLE 12P 350MM CABLE 12P
CON 4355738314 CON ASS’Y 2P 300MM ASS’Y 2P
POWER SW 4648099310 POWER SWITCH (H8500VB) POWER SW
FUSE C5508411934 FUSE T 20MM 630MA/250V U/C/S/V 630mA/250V
FUSE C5508412234 FUSE TSD 20MM 1A/250V U/C/S/V 1A/250V
FUSE C5508412134 FUSE T 20MM 800MA/250V U/C/S/V 120V (E)
C5508411634 FUSE T 20MM 400MA/250V U/C/S/V 220V~ 240V
(C,D,R,DOM)
POWER TRANS 2828059400 TRANS POWER MX-1824EX (120V) 120V (E)
2828059420 TRANS POWER MX-1824EX (230V) 220V ~ 240V
(C,D,R,DOM)
AC CORD 4308989910 AC CORD ASS’Y(U/V) MX-1424EX 120V (E)
4308999910 CORD AC UL 3CORES 120V (E)
4308989810 AC CORD ASS’Y(DOM) MX-1424EX 220V (DOM)
4308998610 EV.300V L:2200)EQ-825 220V (DOM)
4308000430 AC CORD POWER(EUROPE KEMA) 230V (R)
4308990110 AC CORD EUROPE ASS’Y 230V (R)
4308989710 AC CORD ASS’Y(BSI) MX-1424EX 230V~240V(C)
4308995710 AC CORD H05VVH2F (B S I) 230V~240V(C)
4308990010 AC CORD ASS’Y(SAA) MX-1424EX 240V (D)
4308999210 AC UP502+0CSA0.75MM2*3C200MM 240V (D)
DSP SW B’D (4003481910)
▷
MX-1424EX/1824EX
ASS’Y
MX-1424/1824 S/M 2003.2.27 5:33 PM 페이지13
