2

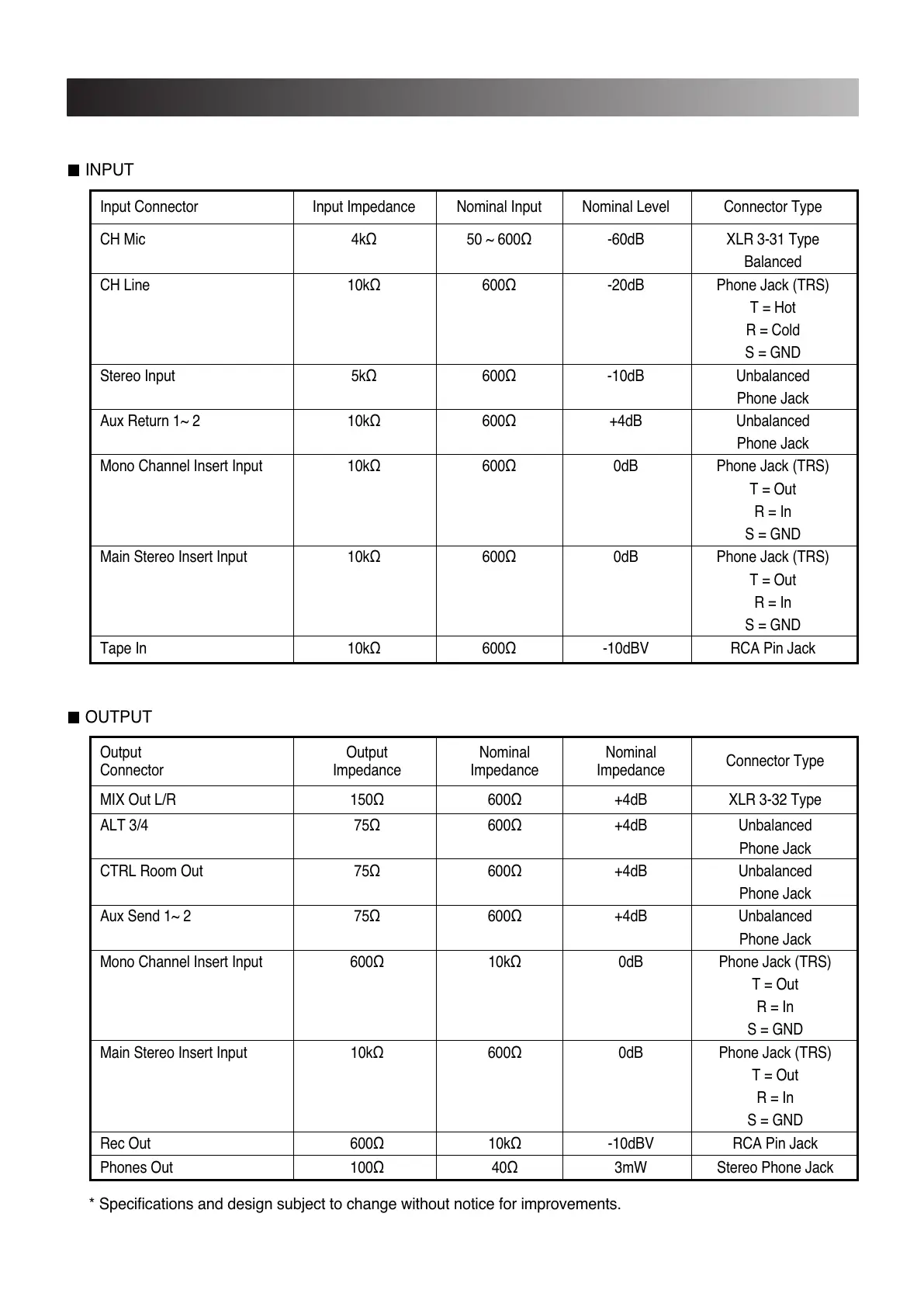

INPUT
OUTPUT
* Specifications and design subject to change without notice for improvements.
Output Output Nominal Nominal
Connector Type
Connector Impedance Impedance Impedance
MIX Out L/R 150Ω 600Ω +4dB XLR 3-32 Type
ALT 3/4 75Ω 600Ω +4dB Unbalanced
Phone Jack
CTRL Room Out 75Ω 600Ω +4dB Unbalanced
Phone Jack
Aux Send 1~ 2 75Ω 600Ω +4dB Unbalanced
Phone Jack
Mono Channel Insert Input 600Ω 10kΩ 0dB Phone Jack (TRS)
T = Out
R = In
S = GND
Main Stereo Insert Input 10kΩ 600Ω 0dB Phone Jack (TRS)
T = Out
R = In
S = GND
Rec Out 600Ω 10kΩ -10dBV RCA Pin Jack
Phones Out 100Ω 40Ω 3mW Stereo Phone Jack
Input Connector Input Impedance Nominal Input Nominal Level Connector Type
CH Mic 4kΩ 50 ~ 600Ω -60dB XLR 3-31 Type
Balanced
CH Line 10kΩ 600Ω -20dB Phone Jack (TRS)
T = Hot
R = Cold
S = GND
Stereo Input 5kΩ 600Ω -10dB Unbalanced
Phone Jack
Aux Return 1~ 2 10kΩ 600Ω +4dB Unbalanced
Phone Jack
Mono Channel Insert Input 10kΩ 600Ω 0dB Phone Jack (TRS)
T = Out
R = In
S = GND
Main Stereo Insert Input 10kΩ 600Ω 0dB Phone Jack (TRS)
T = Out
R = In
S = GND
Tape In 10kΩ 600Ω -10dBV RCA Pin Jack
