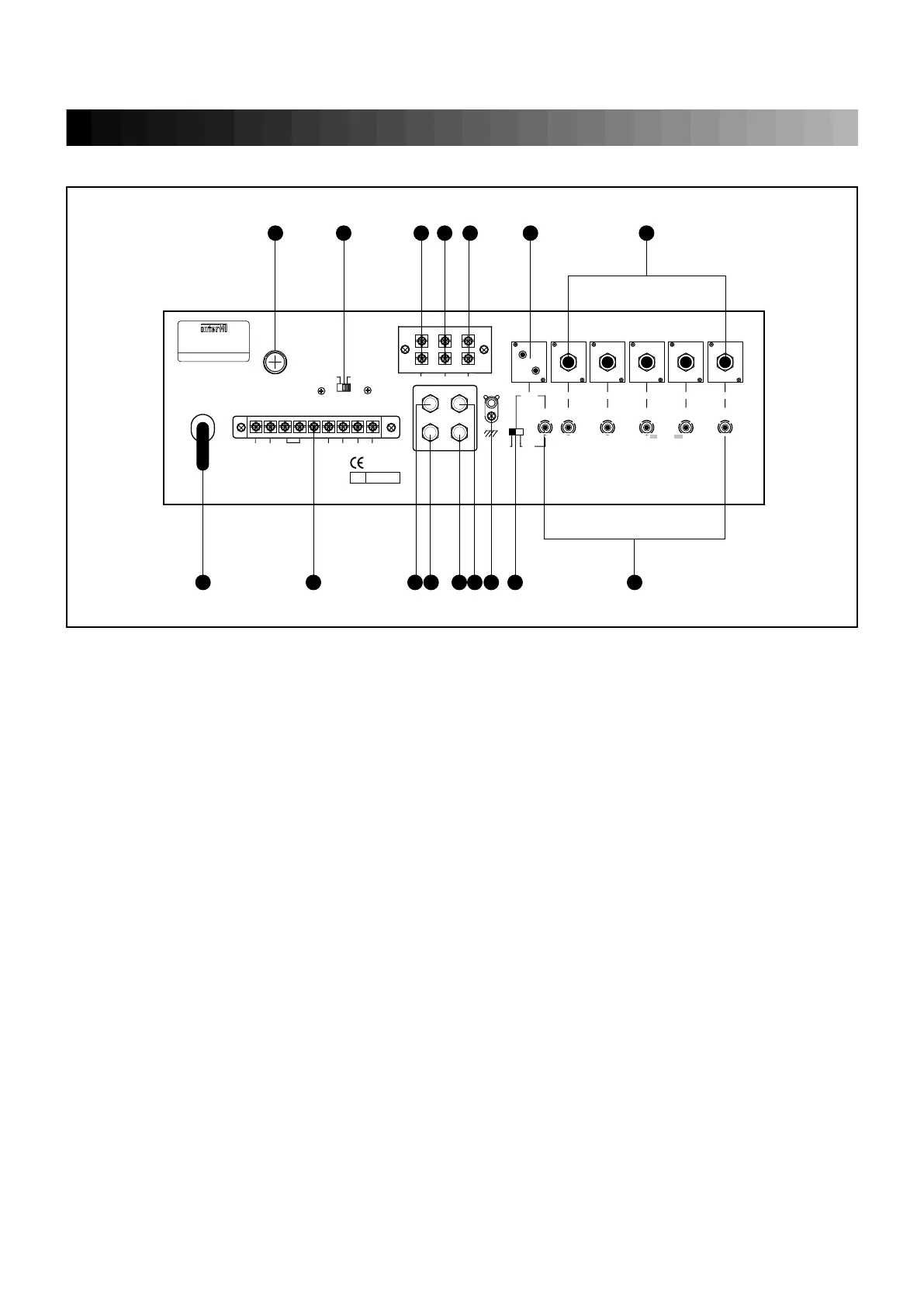

REAR PANEL CONTROLS
4
111213141615 10
1 2 3 45 6 7 8 9
SP 4SP SP 2 3
SP 1
A
AUX
MIC
MIC ATT
GAIN
AUX
MIC
MIC ATT
GAIN
AUX
MIC
MIC ATT
GAIN
AUX
MIC
MIC ATT
GAIN
AUX
MIC
MIC ATT
GAIN
AUX
MIC
MIC ATT
GAIN
CH 6
CH 5 CH 4 CH 3 CH 2 CH 1
~AC INPUT
120V/60Hz, 64W
GND
LINK OUT
LINK IN
PREAMP
OUT
AMP
IN
PHONO
MIC
/
AUX
70V
(83Ω )
25V
(10.4Ω )
SPEAKER OUTPUT
4Ω
8Ω COM
SP 5
FUSE
2A/250V
EXT
CHIME
EXT
MUTE
TEL
IN
S/N
MO DEL NO;PA-
4000
PUBLIC ADDRESS
AMPLIFIER
OUTPUT POWER : 120W
MADE IN KOREA
WARNING
;
SHOCK HAZARD DO NOT OPEN. NO USER SERVICEABLE
PARTS INSIDE. DO NOT EXPOSE UNIT TO RAIN OR MOISTURE
RISQUE DE CHOCELECTRIQUE NEPAS
OUVRIR.
VIS
;
CAUTION; REPLACE WITH THE SAME TYPE FUSE ASINDICATED.
UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE.
1. AC CORD
Plug this AC input cord into AC outlet.
2.
SPEAKER OUTPUT TERMINAL
These terminals are for the connecting the speakers. Select the terminals of 4Ω , 8Ω or High impedance
(PA-2000(R):83Ω or 10.4Ω , PA-4000(R):42Ω or 5.2Ω ) not to overload.
NOTE: Pay attention that only high impedance terminal can be controlled by the speaker selector of front panel.
3. LINK OUT JACK
This jack is used to connecting the same kinds amp of this unit and record out of deck.
4. LINK IN
To the expantion of input channels, this jack is provided to connect with the output terminal of external mixer.
5. PRE AMP OUT JACK
This jack is for connecting the preamp out signal to external effect deive or external musical instrument. If the
plug is inserted on this jack mixed signal of all input is not connect to main amplifier and only amp in signal
is connected.
6. AMP IN JACK
This jack is for connecting the external signal input. If plug is inserted on this jack, mixed signal of all
input is not connected to main amplifier, and only amp in signal is connected.
NOTE:When switch selected the PHONO, the input gain volume of CH6 is not adjusted.
7. GND TERMINAL
This is ground terminal to be connected with chassis of the turntable to reduce hum to minimum. To
further minimize hum, it may be necessary to connect this terminal with a wire to the nearest water pipe w-
hich goes directly to real ground.
