PUBLIC ADDRESS POWER AMPLIFIER
7
PA-6312/6324/6336/6348

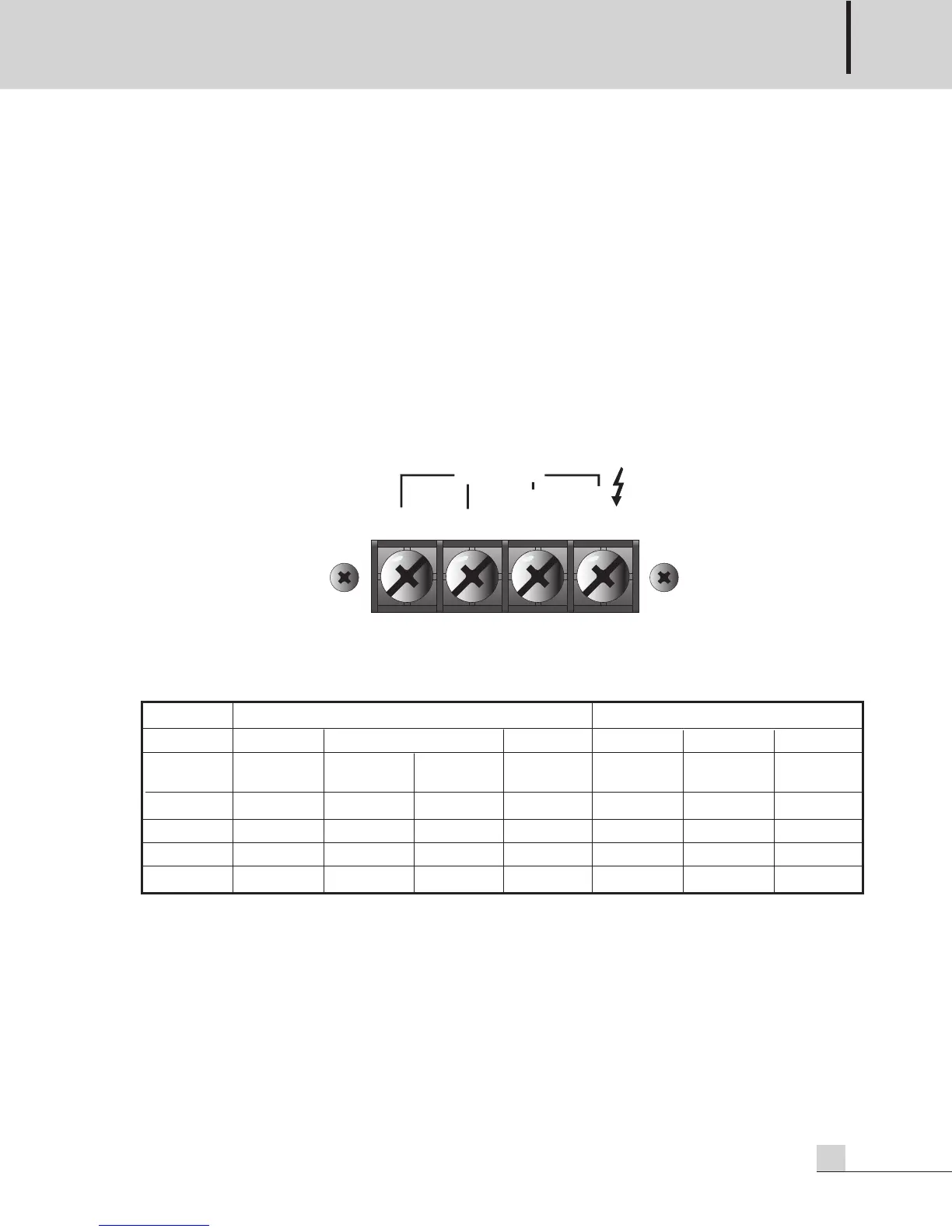

Connecting Speakers
Connecting Speakers
Before connecting speakers to your PA-6312/6324/6336/6348 unit, be sure to disconnect the AC power
cable. Make certain that the total impedance is not less than the rated impedance indicated.
For 4 speakers, connect the positive (+) connector to the 4 terminal and the negative (-) connectors to the
COM terminal.
For high-voltage distributed systems, connect with matching transformer to the COM and either B or A
terminals. Be certain that the total impedance does not equal less than the rated impedance.
*The impedance and output voltage are as follows.
4
OUTPUT
COM
A
B
Countries
USA/CANADA & Associated Version EC & Associated, JAPAN Version
Impedance Low High (B) High (A) Low High (B) High (A)
Output
4 8 25V 70V 4 70V 100V
Terminals
PA-6312 22V - 5.2
41 22V 41 83
PA-6324 31V - 2.6
21 31V 21 42
PA-6336 38V
54V
-
13.6 38V 13.6 27.8
PA-6348
43.8V 62V - 10.2 43.8V 10.2 20.8
