ELECTRICAL ADJUSTMENT PROCEDURE
1
󱇲󱇲
IDLE CURRENT

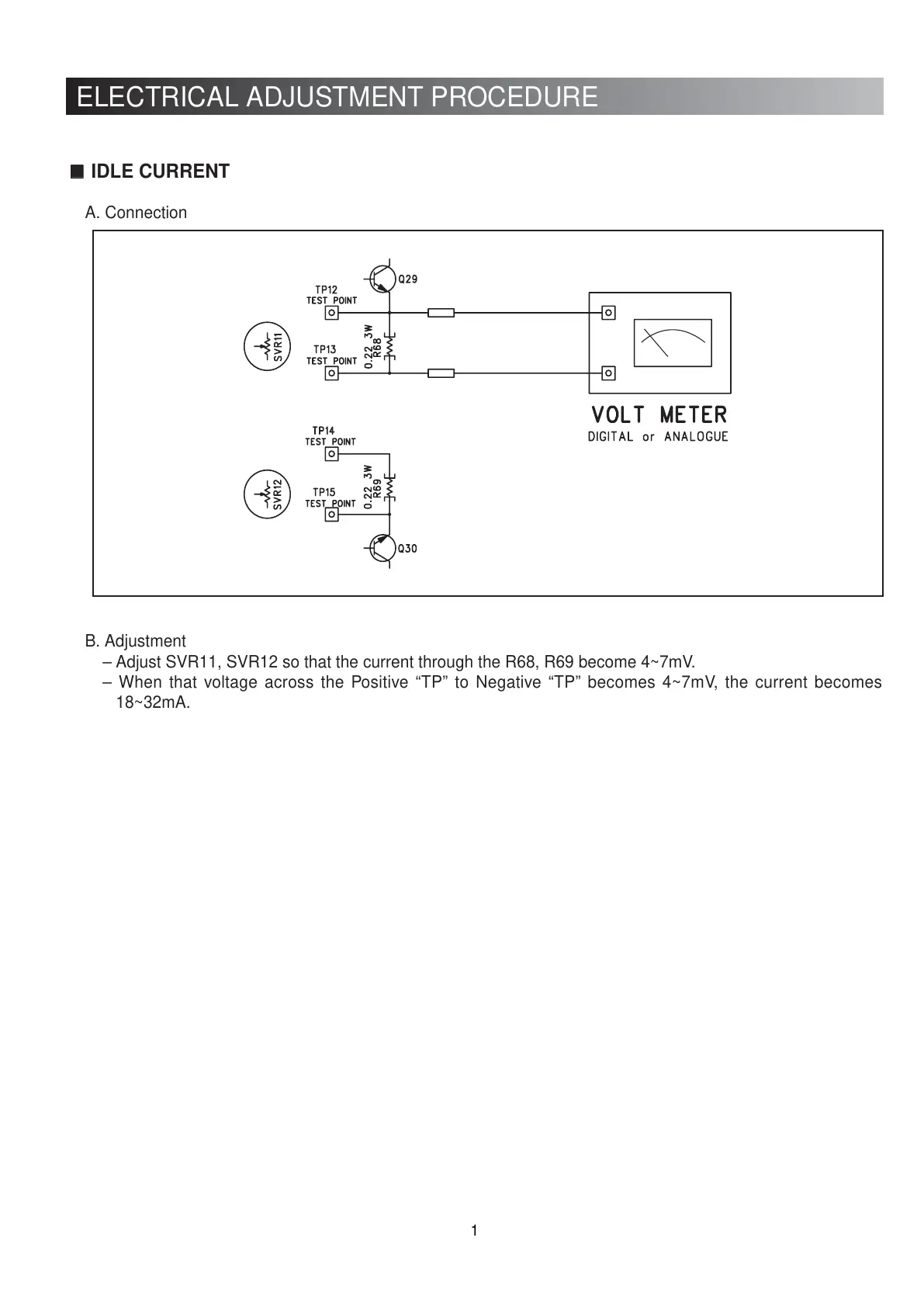

A. Connection
B. Adjustment
– Adjust SVR11, SVR12 so that the current through the R68, R69 become 4~7mV.
– When that voltage across the Positive “TP” to Negative “TP” becomes 4~7mV, the current becomes
18~32mA.
