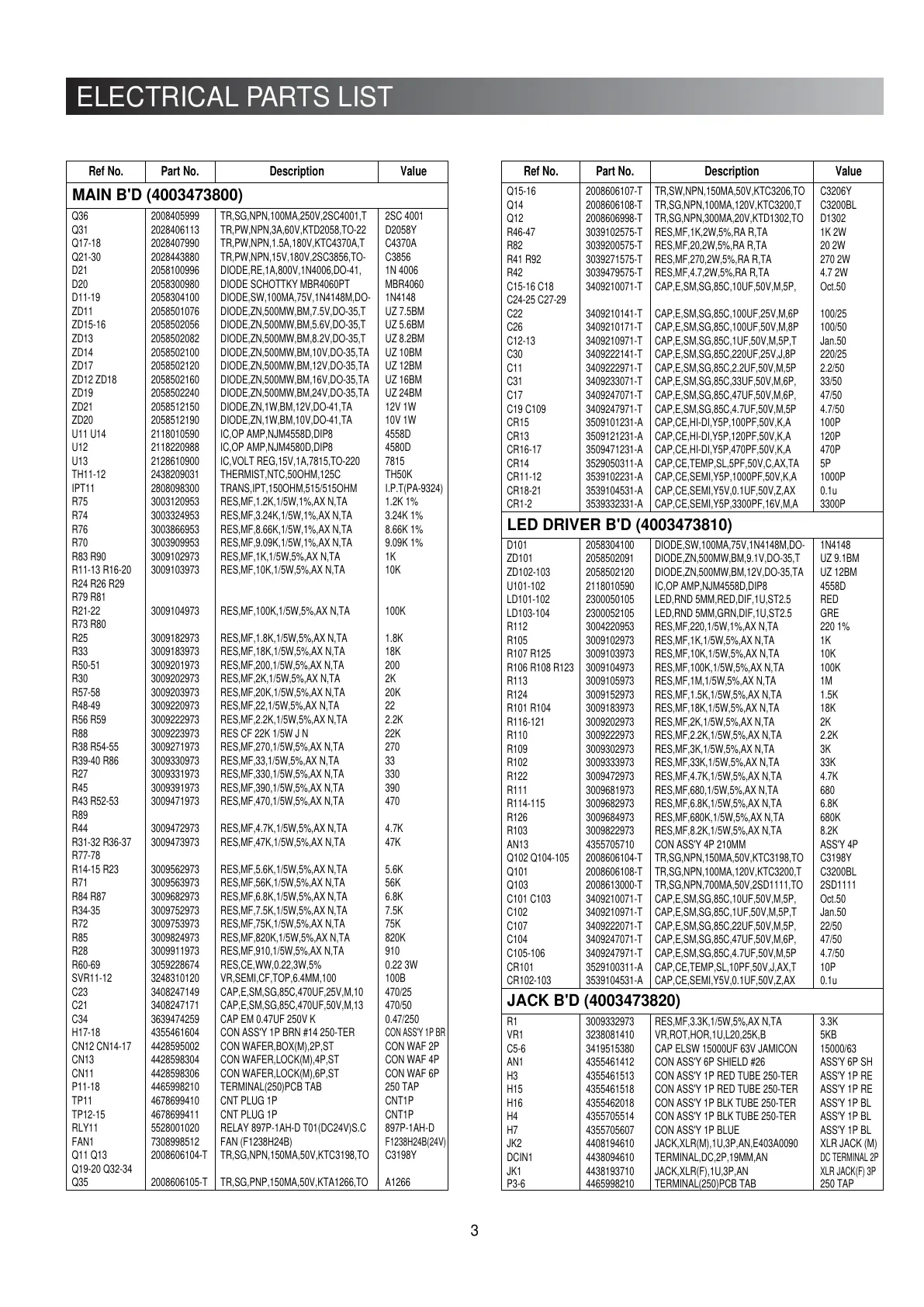

ELECTRICAL PARTS LIST
3
Ref No. Part No. ValueDescription
Q36 2008405999 TR,SG,NPN,100MA,250V,2SC4001,T 2SC 4001
Q31 2028406113 TR,PW,NPN,3A,60V,KTD2058,TO-22 D2058Y
Q17-18 2028407990 TR,PW,NPN,1.5A,180V,KTC4370A,T C4370A
Q21-30 2028443880 TR,PW,NPN,15V,180V,2SC3856,TO- C3856
D21 2058100996 DIODE,RE,1A,800V,1N4006,DO-41, 1N 4006
D20 2058300980 DIODE SCHOTTKY MBR4060PT MBR4060
D11-19 2058304100 DIODE,SW,100MA,75V,1N4148M,DO- 1N4148
ZD11 2058501076 DIODE,ZN,500MW,BM,7.5V,DO-35,T UZ 7.5BM
ZD15-16 2058502056 DIODE,ZN,500MW,BM,5.6V,DO-35,T UZ 5.6BM
ZD13 2058502082 DIODE,ZN,500MW,BM,8.2V,DO-35,T UZ 8.2BM
ZD14 2058502100 DIODE,ZN,500MW,BM,10V,DO-35,TA UZ 10BM
ZD17 2058502120 DIODE,ZN,500MW,BM,12V,DO-35,TA UZ 12BM
ZD12 ZD18 2058502160 DIODE,ZN,500MW,BM,16V,DO-35,TA UZ 16BM
ZD19 2058502240 DIODE,ZN,500MW,BM,24V,DO-35,TA UZ 24BM
ZD21 2058512150 DIODE,ZN,1W,BM,12V,DO-41,TA 12V 1W
ZD20 2058512190 DIODE,ZN,1W,BM,10V,DO-41,TA 10V 1W
U11 U14 2118010590 IC,OP AMP,NJM4558D,DIP8 4558D
U12 2118220988 IC,OP AMP,NJM4580D,DIP8 4580D
U13 2128610900 IC,VOLT REG,15V,1A,7815,TO-220 7815
TH11-12 2438209031 THERMIST,NTC,50OHM,125C TH50K
IPT11 2808098300 TRANS,IPT,150OHM,515/515OHM I.P.T(PA-9324)
R75 3003120953 RES,MF,1.2K,1/5W,1%,AX N,TA 1.2K 1%
R74 3003324953 RES,MF,3.24K,1/5W,1%,AX N,TA 3.24K 1%
R76 3003866953 RES,MF,8.66K,1/5W,1%,AX N,TA 8.66K 1%
R70 3003909953 RES,MF,9.09K,1/5W,1%,AX N,TA 9.09K 1%
R83 R90 3009102973 RES,MF,1K,1/5W,5%,AX N,TA 1K
R11-13 R16-20 3009103973 RES,MF,10K,1/5W,5%,AX N,TA 10K
R24 R26 R29
R79 R81
R21-22 3009104973 RES,MF,100K,1/5W,5%,AX N,TA 100K
R73 R80
R25 3009182973 RES,MF,1.8K,1/5W,5%,AX N,TA 1.8K
R33 3009183973 RES,MF,18K,1/5W,5%,AX N,TA 18K
R50-51 3009201973 RES,MF,200,1/5W,5%,AX N,TA 200
R30 3009202973 RES,MF,2K,1/5W,5%,AX N,TA 2K
R57-58 3009203973 RES,MF,20K,1/5W,5%,AX N,TA 20K
R48-49 3009220973 RES,MF,22,1/5W,5%,AX N,TA 22
R56 R59 3009222973 RES,MF,2.2K,1/5W,5%,AX N,TA 2.2K
R88 3009223973 RES CF 22K 1/5W J N 22K
R38 R54-55 3009271973 RES,MF,270,1/5W,5%,AX N,TA 270
R39-40 R86 3009330973 RES,MF,33,1/5W,5%,AX N,TA 33
R27 3009331973 RES,MF,330,1/5W,5%,AX N,TA 330
R45 3009391973 RES,MF,390,1/5W,5%,AX N,TA 390
R43 R52-53 3009471973 RES,MF,470,1/5W,5%,AX N,TA 470
R89
R44 3009472973 RES,MF,4.7K,1/5W,5%,AX N,TA 4.7K
R31-32 R36-37 3009473973 RES,MF,47K,1/5W,5%,AX N,TA 47K
R77-78
R14-15 R23 3009562973 RES,MF,5.6K,1/5W,5%,AX N,TA 5.6K
R71 3009563973 RES,MF,56K,1/5W,5%,AX N,TA 56K
R84 R87 3009682973 RES,MF,6.8K,1/5W,5%,AX N,TA 6.8K
R34-35 3009752973 RES,MF,7.5K,1/5W,5%,AX N,TA 7.5K
R72 3009753973 RES,MF,75K,1/5W,5%,AX N,TA 75K
R85 3009824973 RES,MF,820K,1/5W,5%,AX N,TA 820K
R28 3009911973 RES,MF,910,1/5W,5%,AX N,TA 910
R60-69 3059228674 RES,CE,WW,0.22,3W,5% 0.22 3W
SVR11-12 3248310120 VR,SEMI,CF,TOP,6.4MM,100 100B
C23 3408247149 CAP,E,SM,SG,85C,470UF,25V,M,10 470/25
C21 3408247171 CAP,E,SM,SG,85C,470UF,50V,M,13 470/50
C34 3639474259 CAP EM 0.47UF 250V K 0.47/250
H17-18 4355461604 CON ASS'Y 1P BRN #14 250-TER
CON ASS'Y 1P BR
CN12 CN14-17 4428595002 CON WAFER,BOX(M),2P,ST CON WAF 2P
CN13 4428598304 CON WAFER,LOCK(M),4P,ST CON WAF 4P
CN11 4428598306 CON WAFER,LOCK(M),6P,ST CON WAF 6P
P11-18 4465998210 TERMINAL(250)PCB TAB 250 TAP
TP11 4678699410 CNT PLUG 1P CNT1P
TP12-15 4678699411 CNT PLUG 1P CNT1P
RLY11 5528001020 RELAY 897P-1AH-D T01(DC24V)S.C 897P-1AH-D
FAN1 7308998512 FAN (F1238H24B)
F1238H24B(24V)
Q11 Q13 2008606104-T TR,SG,NPN,150MA,50V,KTC3198,TO C3198Y
Q19-20 Q32-34
Q35 2008606105-T TR,SG,PNP,150MA,50V,KTA1266,TO A1266
MAIN B'D (4003473800)
Ref No. Part No. ValueDescription
Q15-16 2008606107-T TR,SW,NPN,150MA,50V,KTC3206,TO C3206Y
Q14 2008606108-T TR,SG,NPN,100MA,120V,KTC3200,T C3200BL
Q12 2008606998-T TR,SG,NPN,300MA,20V,KTD1302,TO D1302
R46-47 3039102575-T RES,MF,1K,2W,5%,RA R,TA 1K 2W
R82 3039200575-T RES,MF,20,2W,5%,RA R,TA 20 2W
R41 R92 3039271575-T RES,MF,270,2W,5%,RA R,TA 270 2W
R42 3039479575-T RES,MF,4.7,2W,5%,RA R,TA 4.7 2W
C15-16 C18 3409210071-T CAP,E,SM,SG,85C,10UF,50V,M,5P, Oct.50
C24-25 C27-29
C22 3409210141-T CAP,E,SM,SG,85C,100UF,25V,M,6P 100/25
C26 3409210171-T CAP,E,SM,SG,85C,100UF,50V,M,8P 100/50
C12-13 3409210971-T CAP,E,SM,SG,85C,1UF,50V,M,5P,T Jan.50
C30 3409222141-T CAP,E,SM,SG,85C,220UF,25V,J,8P 220/25
C11 3409222971-T CAP,E,SM,SG,85C,2.2UF,50V,M,5P 2.2/50
C31 3409233071-T CAP,E,SM,SG,85C,33UF,50V,M,6P, 33/50
C17 3409247071-T CAP,E,SM,SG,85C,47UF,50V,M,6P, 47/50
C19 C109 3409247971-T CAP,E,SM,SG,85C,4.7UF,50V,M,5P 4.7/50
CR15 3509101231-A CAP,CE,HI-DI,Y5P,100PF,50V,K,A 100P
CR13 3509121231-A CAP,CE,HI-DI,Y5P,120PF,50V,K,A 120P
CR16-17 3509471231-A CAP,CE,HI-DI,Y5P,470PF,50V,K,A 470P
CR14 3529050311-A CAP,CE,TEMP,SL,5PF,50V,C,AX,TA 5P
CR11-12 3539102231-A CAP,CE,SEMI,Y5P,1000PF,50V,K,A 1000P
CR18-21 3539104531-A CAP,CE,SEMI,Y5V,0.1UF,50V,Z,AX 0.1u
CR1-2 3539332331-A CAP,CE,SEMI,Y5P,3300PF,16V,M,A 3300P
D101 2058304100 DIODE,SW,100MA,75V,1N4148M,DO- 1N4148
ZD101 2058502091 DIODE,ZN,500MW,BM,9.1V,DO-35,T UZ 9.1BM
ZD102-103 2058502120 DIODE,ZN,500MW,BM,12V,DO-35,TA UZ 12BM
U101-102 2118010590 IC,OP AMP,NJM4558D,DIP8 4558D
LD101-102 2300050105 LED,RND 5MM,RED,DIF,1U,ST2.5 RED
LD103-104 2300052105 LED,RND 5MM,GRN,DIF,1U,ST2.5 GRE
R112 3004220953 RES,MF,220,1/5W,1%,AX N,TA 220 1%
R105 3009102973 RES,MF,1K,1/5W,5%,AX N,TA 1K
R107 R125 3009103973 RES,MF,10K,1/5W,5%,AX N,TA 10K
R106 R108 R123 3009104973 RES,MF,100K,1/5W,5%,AX N,TA 100K
R113 3009105973 RES,MF,1M,1/5W,5%,AX N,TA 1M
R124 3009152973 RES,MF,1.5K,1/5W,5%,AX N,TA 1.5K
R101 R104 3009183973 RES,MF,18K,1/5W,5%,AX N,TA 18K
R116-121 3009202973 RES,MF,2K,1/5W,5%,AX N,TA 2K
R110 3009222973 RES,MF,2.2K,1/5W,5%,AX N,TA 2.2K
R109 3009302973 RES,MF,3K,1/5W,5%,AX N,TA 3K
R102 3009333973 RES,MF,33K,1/5W,5%,AX N,TA 33K
R122 3009472973 RES,MF,4.7K,1/5W,5%,AX N,TA 4.7K
R111 3009681973 RES,MF,680,1/5W,5%,AX N,TA 680
R114-115 3009682973 RES,MF,6.8K,1/5W,5%,AX N,TA 6.8K
R126 3009684973 RES,MF,680K,1/5W,5%,AX N,TA 680K
R103 3009822973 RES,MF,8.2K,1/5W,5%,AX N,TA 8.2K
AN13 4355705710 CON ASS'Y 4P 210MM ASS'Y 4P
Q102 Q104-105 2008606104-T TR,SG,NPN,150MA,50V,KTC3198,TO C3198Y
Q101 2008606108-T TR,SG,NPN,100MA,120V,KTC3200,T C3200BL
Q103 2008613000-T TR,SG,NPN,700MA,50V,2SD1111,TO 2SD1111
C101 C103 3409210071-T CAP,E,SM,SG,85C,10UF,50V,M,5P, Oct.50
C102 3409210971-T CAP,E,SM,SG,85C,1UF,50V,M,5P,T Jan.50
C107 3409222071-T CAP,E,SM,SG,85C,22UF,50V,M,5P, 22/50
C104 3409247071-T CAP,E,SM,SG,85C,47UF,50V,M,6P, 47/50
C105-106 3409247971-T CAP,E,SM,SG,85C,4.7UF,50V,M,5P 4.7/50
CR101 3529100311-A CAP,CE,TEMP,SL,10PF,50V,J,AX,T 10P
CR102-103 3539104531-A CAP,CE,SEMI,Y5V,0.1UF,50V,Z,AX 0.1u
R1 3009332973 RES,MF,3.3K,1/5W,5%,AX N,TA 3.3K
VR1 3238081410 VR,ROT,HOR,1U,L20,25K,B 5KB
C5-6 3419515380 CAP ELSW 15000UF 63V JAMICON 15000/63
AN1 4355461412 CON ASS'Y 6P SHIELD #26 ASS'Y 6P SH
H3 4355461513 CON ASS'Y 1P RED TUBE 250-TER ASS'Y 1P RE
H15 4355461518 CON ASS'Y 1P RED TUBE 250-TER ASS'Y 1P RE
H16 4355462018 CON ASS'Y 1P BLK TUBE 250-TER ASS'Y 1P BL
H4 4355705514 CON ASS'Y 1P BLK TUBE 250-TER ASS'Y 1P BL
H7 4355705607 CON ASS'Y 1P BLUE ASS'Y 1P BL
JK2 4408194610 JACK,XLR(M),1U,3P,AN,E403A0090 XLR JACK (M)
DCIN1 4438094610 TERMINAL,DC,2P,19MM,AN
DC TERMINAL 2P
JK1 4438193710 JACK,XLR(F),1U,3P,AN
XLR JACK(F) 3P
P3-6 4465998210 TERMINAL(250)PCB TAB 250 TAP
LED DRIVER B'D (4003473810)
JACK B'D (4003473820)
