INSTALLATION OF THE SPEAKERS
When you connect the speaker, remove the power cord from AC outlet. And use the suitable terminals
connecting way as belows. Be sure that total impedance is not less than rated impedance.
• AC VOLTAGE: 220V–240V ONLY
VOLTAGE
PA-920 8.9V 12.65V 70V 100V
PA-935 11.8V 16.73V 70V 100V
IMPEDANCE
PA-920 4 OHMS 8 OHMS 245 OHMS 500 OHMS
PA-935 4 OHMS 8 OHMS 140 OHMS 285 OHMS
FOR 4Ω TERMINAL
12V 16.7V 140Ω 285Ω (PA-935)
9V 12.8V 245Ω 500Ω (PA-920)
FOR 70V TERMINAL
12V 16.7V 140Ω 285Ω (PA-935)
9V 12.8V 245Ω 500Ω (PA-920)
FOR 100V TERMINAL
12V 16.7V 140Ω 285Ω (PA-935)
9V 12.8V 245Ω 500Ω (PA-920)
FOR 8Ω TERMINAL
12V 16.7V 140Ω 285Ω (PA-935)
9V 12.8V 245Ω 500Ω (PA-920)

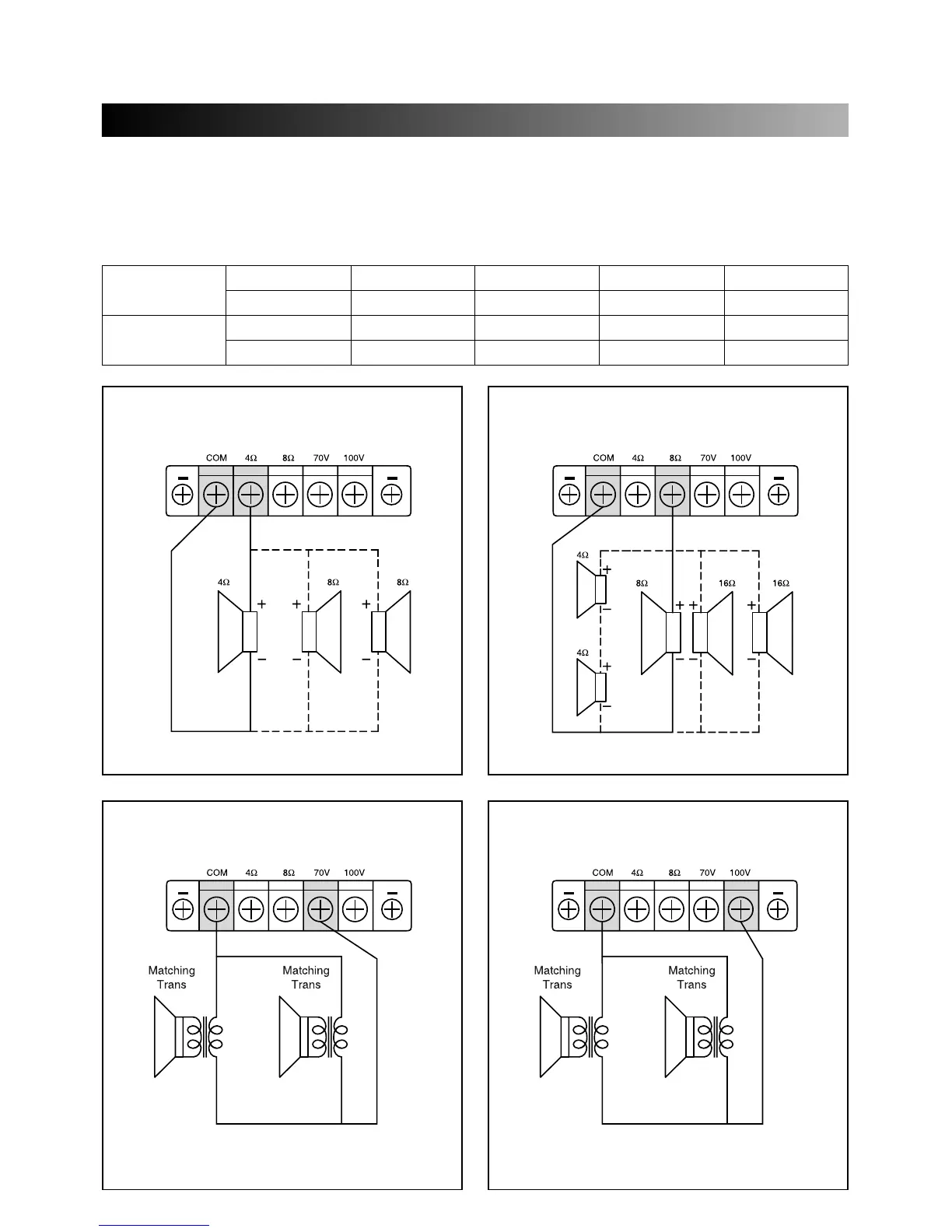

(Figure 2-1)
(Figure 2-4)(Figure 2-3)
Be sure that total impedance is not less than
rated impedance.
Be sure that total impedance is not less than
rated impedance.
(Figure 2-2)
