CONNECTION OF THE ANTENNA AND THE EARTHING CABLE
10
FM RECEIVING ANTENNA
The electric wave of FM broadcasting is weakening in hills and valleys, around buildings and in iron-re-
inforced buildings because of its own nature.
INSTALLATION OF AN ANTENNA EXCLUSIVELY FOR FM
Connect the feeder of the antenna of the terminal of 300Ω (Fig. 1).
Listening to the broadcasting, fix it after deciding the location and the direction so that the receipt con-
dition may be optimum.
INSTALLATION OF AN ANTENNA USING THE COAXIAL CABLE
You may feel the noise at the crowded downtown, city streets and factory sites as well as around power c-
ables, even in the case of using an antenna exclusively for FM. In these regions, install it through con-
nection with a coaxial cable of 75Ω .
INDOOR ANTENNA
In the regions where FM broadcasting is heard comparatively well due to the near distance to the sta-
tion or wooden structure, you can receive broadcasting of good quality by using T-type antenna.
Fix the antenna at the best place for receipt after connecting it with a terminal of 300Ω .
AM LEAD ANTENNA
Fix on side to AM terminal and the other to high place like a wall after making the coated cable of a s-
ingle cable about 6~8m long(Fig. 2).
AM OUTDOOR ANTENNA
Install the vinyl-coated cable at the outdoor place in case you cannot hear quite well though you have
installed the lead antenna. (Fig. 2)
AM
GND
300W
FM75W
ANTENNA
FM DIPOLE ANTENNA
DIRECTION OF
BROADCASTING STATION
FM ANTENNA
EARTH

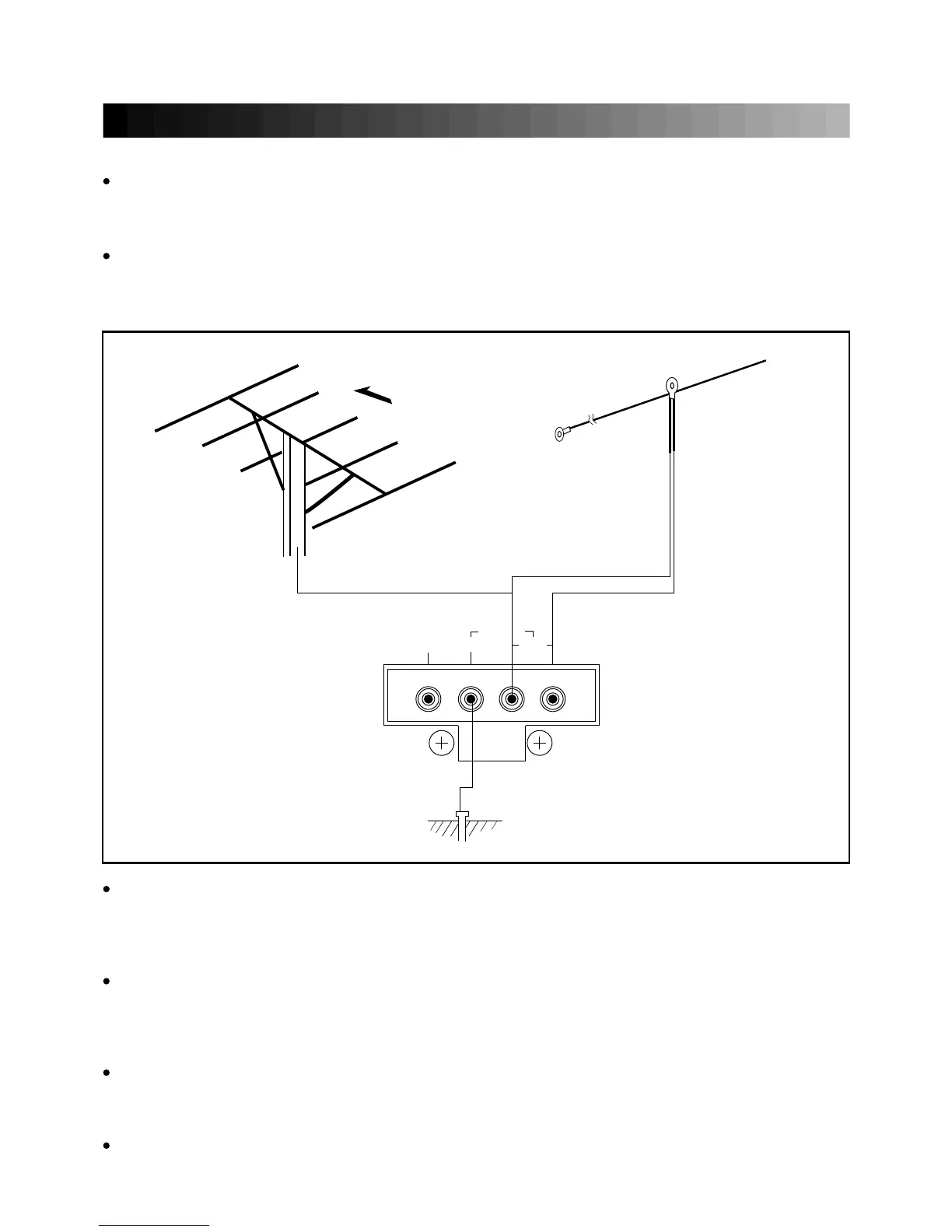

(FIGURE 1)
