Inter-m POP-30 User Manual

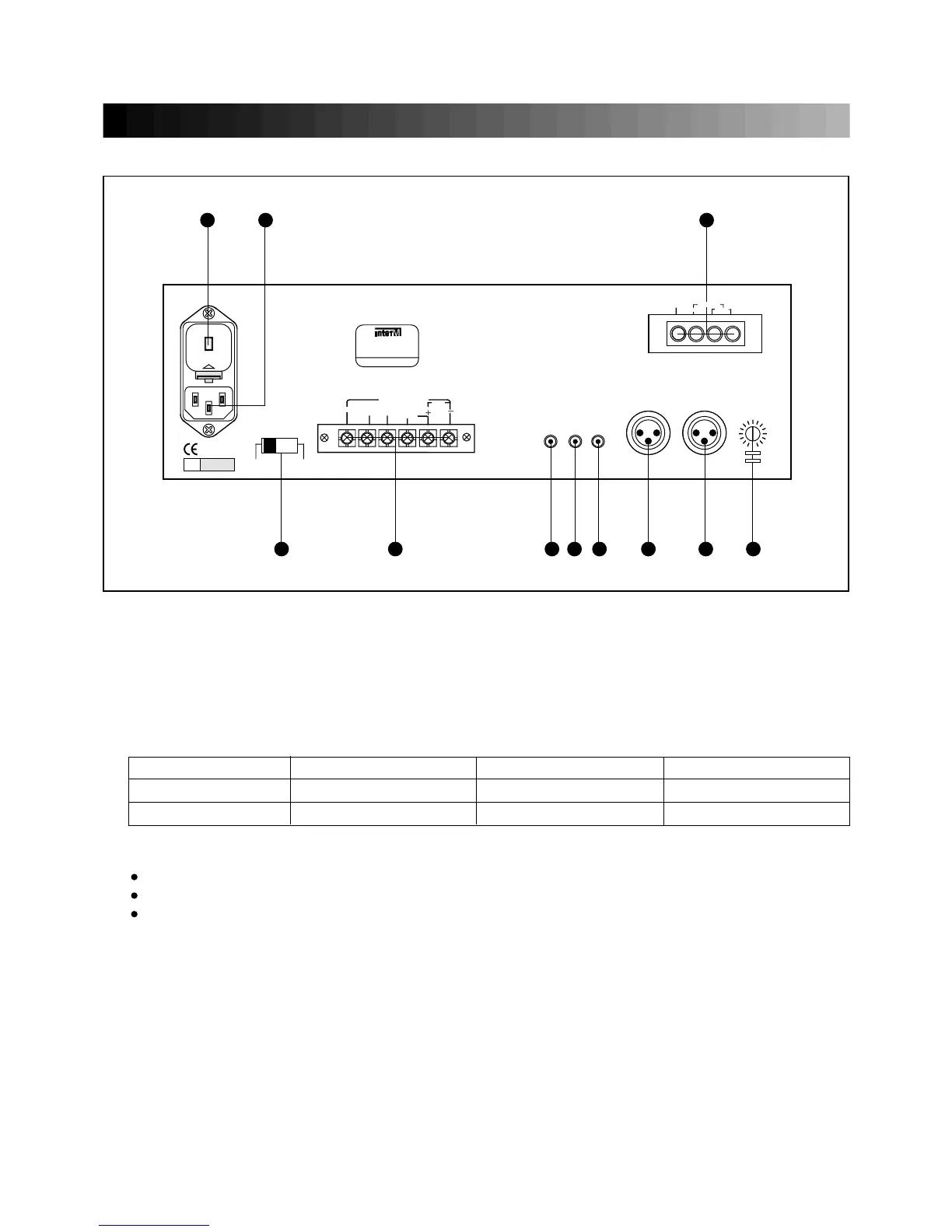

REAR PANEL CONTROLS
5
11 10
2 1 3
456789
1. AC PLUG
This AC INPUT CORD into AC INLET.
2. FUSE HOLDERS
This fuse holder contain AC fuse. When they are blown out replace them with same type fuse as
following page. If they continuously blow, stop replacing fuse and refer servicing to qualified personnel.
3. ANTENNA TERMINAL
FM Terminal : You can connect 75Ω coaxial cable or 300Ω feeder cable according to antennas.
AM Terminal : Connect it to the AM Terminal in case of using outdoor antenna.
GND Terminal : An erathing terminal for AM receipt. It is possible to protect the unit in a thunder sto-
rm and to clear the noise.
4. MUTE CONTROL
When the other signal is muted by MIC 1 and Chime, this control is used for adjusting the muting
level.
5. MIC 2 INPUT JACK
These jacks are for the MIC 2 input. Input sensitivity is 1mV and the input impedance balanced 10KΩ
or 600Ω , is optional.
6. MIC 3 INPUT JACK
These jacks are for the MIC 3 input. Input sensitivity is 1mV and the input impedance balanced 10KΩ
or 600Ω , is optional.
1.5A/250V/0.75A/250V 2A/250V/1A/250V 3A/250V/1.5A/250V
POP-30
POP-60
POP-120
FUSE RATING
VOLTAGE AC 115V/230V AC 115V/230V AC 115V/230V
MODEL
AM
RISQUE DE CHOCELECTRIQUE NEPAS OUVRIR.
SHOCK HAZARD DO NOT OPEN. NO USER SERVICEABLE
PARTS INSIDE. DO NOT EXPOSE UNIT TO RAIN OR MOISTURE
1
1
5
100V
(333Ω )
70V
(163Ω )
~AC INPUT:230V,50Hz 235W
FUSE:T1.6AL/250V
SPEAKER OUTPUT
B A
COM OPT
IN
AMP IN
PREAMP
OUTPUT
AUX
MIC 3 MIC 2
MUTE LEVEL
MIN
MA
X
WARNING;
AV IS;
CAUTION; REPLACE WITH THE SAME TYPE FUSE ASINDICAT ED. UTIL ISER
UN FUSIBL E DE RECHANGE DE MEME TYPE.
S/N
MODEL NO;POP-120
FULL LOGIC CASSETTE
RECEIVER AMPLIFIER
MADE IN KOREA
4Ω
ANT TERMINAL
300Ω
FM(75)Ω
GND
