PROGRAM TIMER
4
PW-6242B

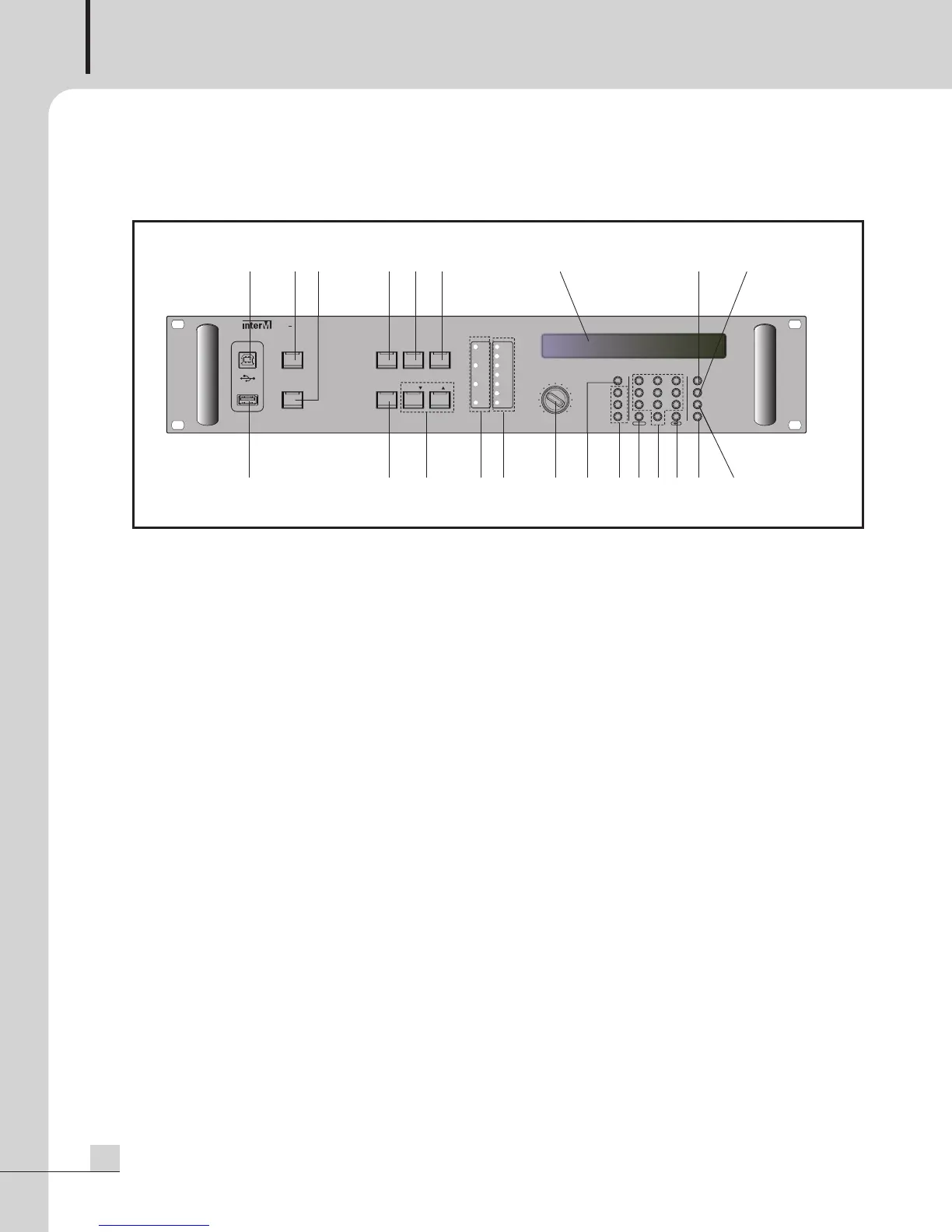

Front Panel
Front Panel
1. AC OUTLET (POWER OUTPUT) BUTTON
It is a button to turn ON/OFF AC power output of AC OUTLET 1, 2 terminals in back side and REMOTE
OUTLET contact terminal output. If pushing this button more than 2 seconds in default status, you can adjust
AC power output time.
2. PC CONNECTING TERMINAL (USB B TYPE)
It is a terminal to upload or download MP3 file saved to PC from/into SD Card in back side of equipment
via USB terminal connected to external PC. Under the status connecting with PC via USB cable, functional
buttons do not operate and if you want to play the file saved to mounted memory, remove the cable
connected with PC.
3. USB MEMORY CONNECTING TERMINAL (USB A TYPE)
It is a terminal used when connecting USB memory with the device. You can copy the sound source saved to
USB memory Into SD Card in back side of equipment.
- File system: FAT 32 (NTFS unsupported)
4. OUTPUT (MELODY OUTPUT) BUTTON
It is a button to control MELODY output. MELODY output turns ON/OFF depending on ON/OFF of output
button.
5. VOICE BUTTON
It is a button used when changing VOICE scheduling and scheduled content.
- If pushing the button at default status, it moves into VOICE scheduled content verification mode.
- If pushing the button more than 2 seconds at default status, it moves into VOICE scheduling mode.
6. MELODY BUTTON
It is a button used when changing MELODY play, scheduling and scheduled content.
PROGRAM TIMER
P
W
6242B
PC AC OUTLET
OUTPUT LEVEL
MEMORY
OUTPUT
VOICE
MODIFY
MELODY
DOWN
AC
CH1
MON
TUE
WED
THU
FRI
SAT
SUN
CH2
T
IME
1 2 3
4 5 6
7 8
0
9
AM/PM
DAY
CANCEL
HOUR /
M
INUTE
T
RACK
CHANNEL
D
ELETE
COPY
CH3
CH4
UP
MIN MAX
1 4 56 7 12 222 21
3 8 9
10 11 13 14 1 5 16 17 18 19 20
