QUAD AMPLIFIER
11
QD-4240/4480/4960, QX-4960

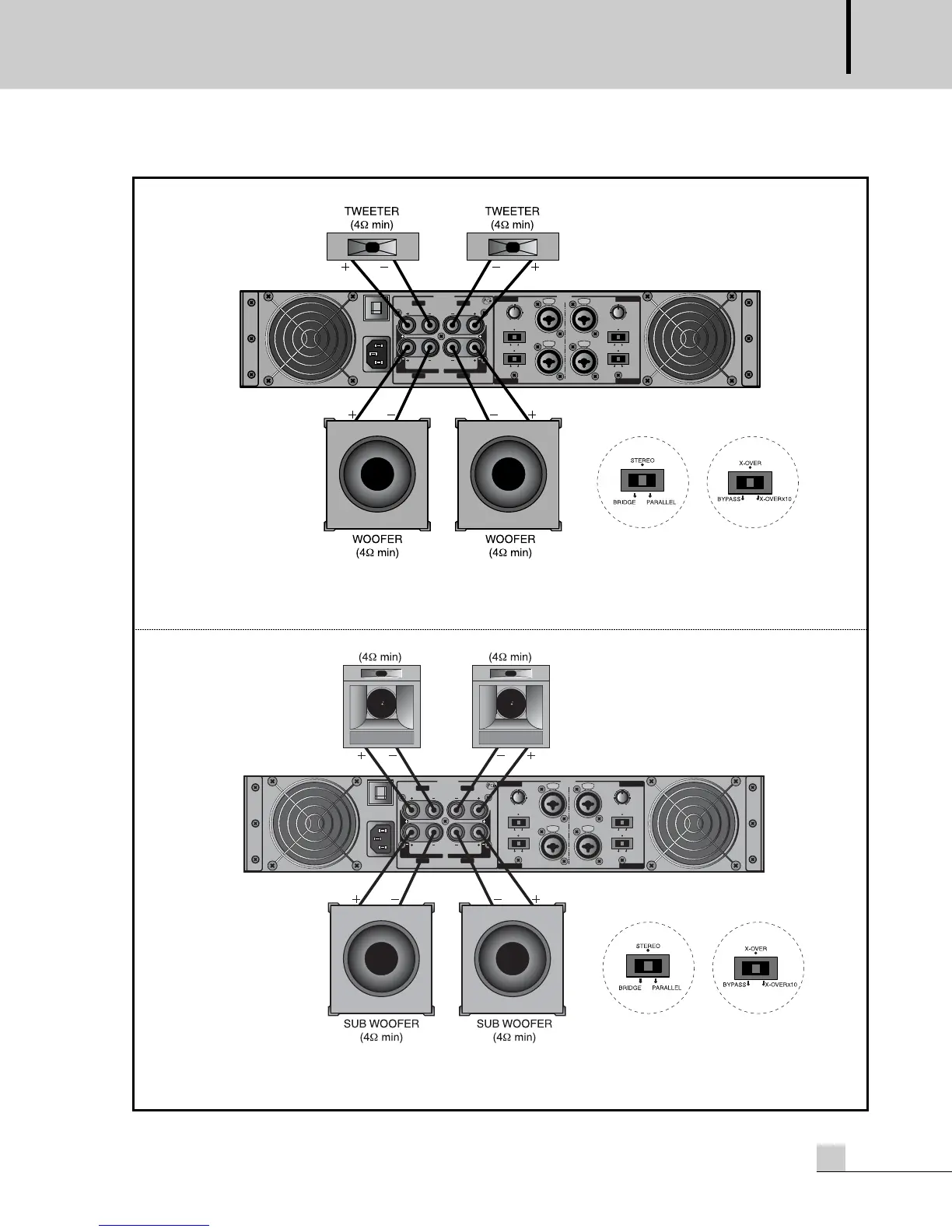

- X-OVER MODE CONNECTIONS 1
- X-OVER MODE CONNECTIONS 2
* CAUTION: When you apply to X-OVER MODE, you must connect correctly for protecting speakers from being
damaged. First, confirm output terminal on the rear panel of QX-4960, and then connect tweeter
speakers to CH1 & CH3 output and woofer speakers to CH2 & CH4 output.
* CAUTION: When you apply to X-OVER MODE, you must connect correctly for protecting speakers from being
damaged. First, confirm output terminal on the rear panel of QX-4960, and then connect tweeter
speakers to CH1 & CH3 output and woofer speakers to CH2 & CH4 output.
