SYSTEM REMOTE MIC STATION/12KEY MIC STATION KEYPAD
6
RM-6024/RM-6012KP
2. Disassemble and Assemble of Side Pad (Required when expanding the keypad.)
3. Assemble the expansion keypad (RM-6012KP)
- After dissembling the RM-6024 side pad, connect the RM-6012KP and internal connector.
- Assemble the RM-6024 and RM-6012KP using same instructions as above for side pad.
- Assemble the dissembled side pad in RM-6012KP.

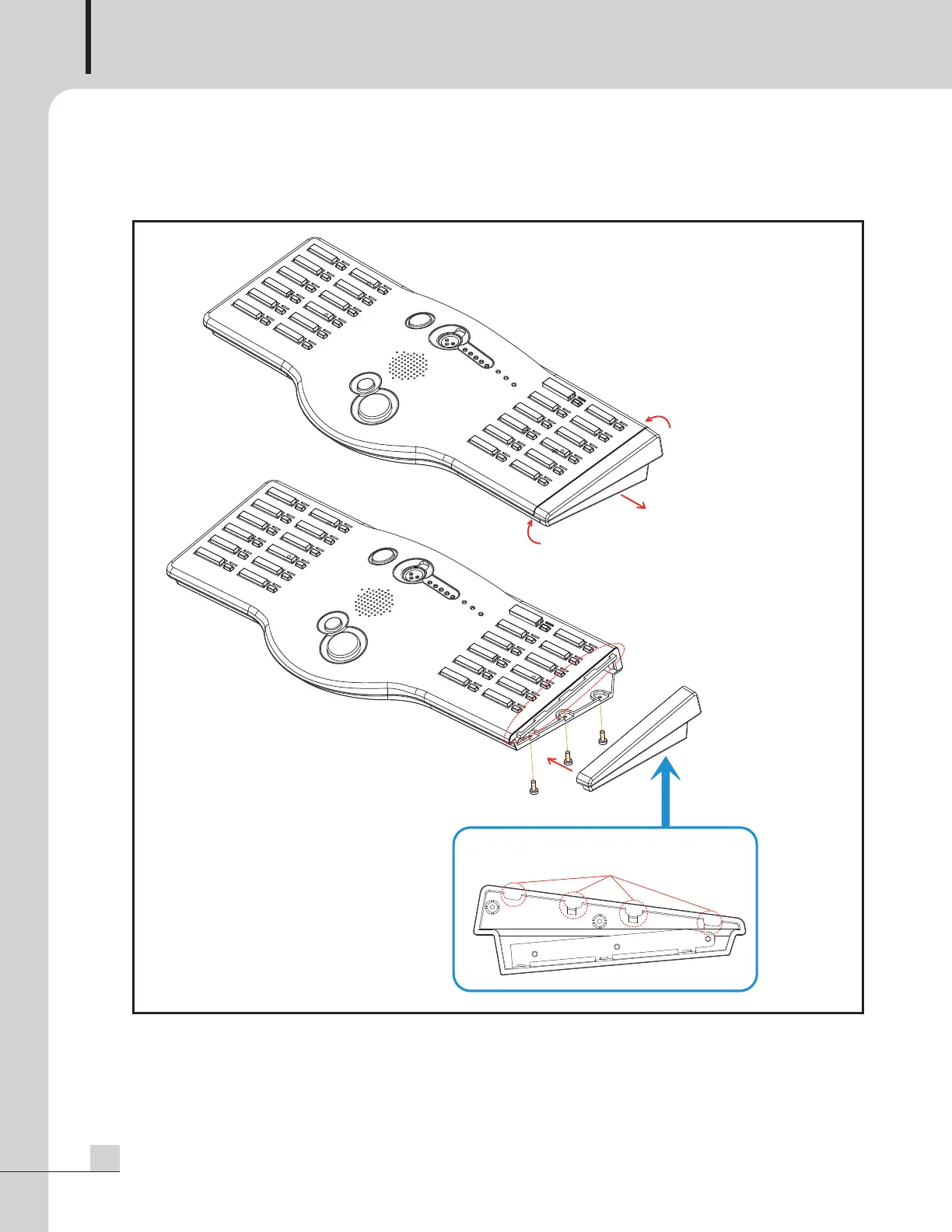

※Dissemble the side pad
1. Unfasten the 3 screws in bottom.
2. Slightly pull up ① and ②, side pad will be
separated from the main body.
3. Pull out to ③, and side pad and main body will
separate.
※Assemble the side pad
1. Insert ① (lock) into ②.
2. Pull the side pad downward.
3. Fasten screws in bottom, and then complete the
assembly.
To Next Page
