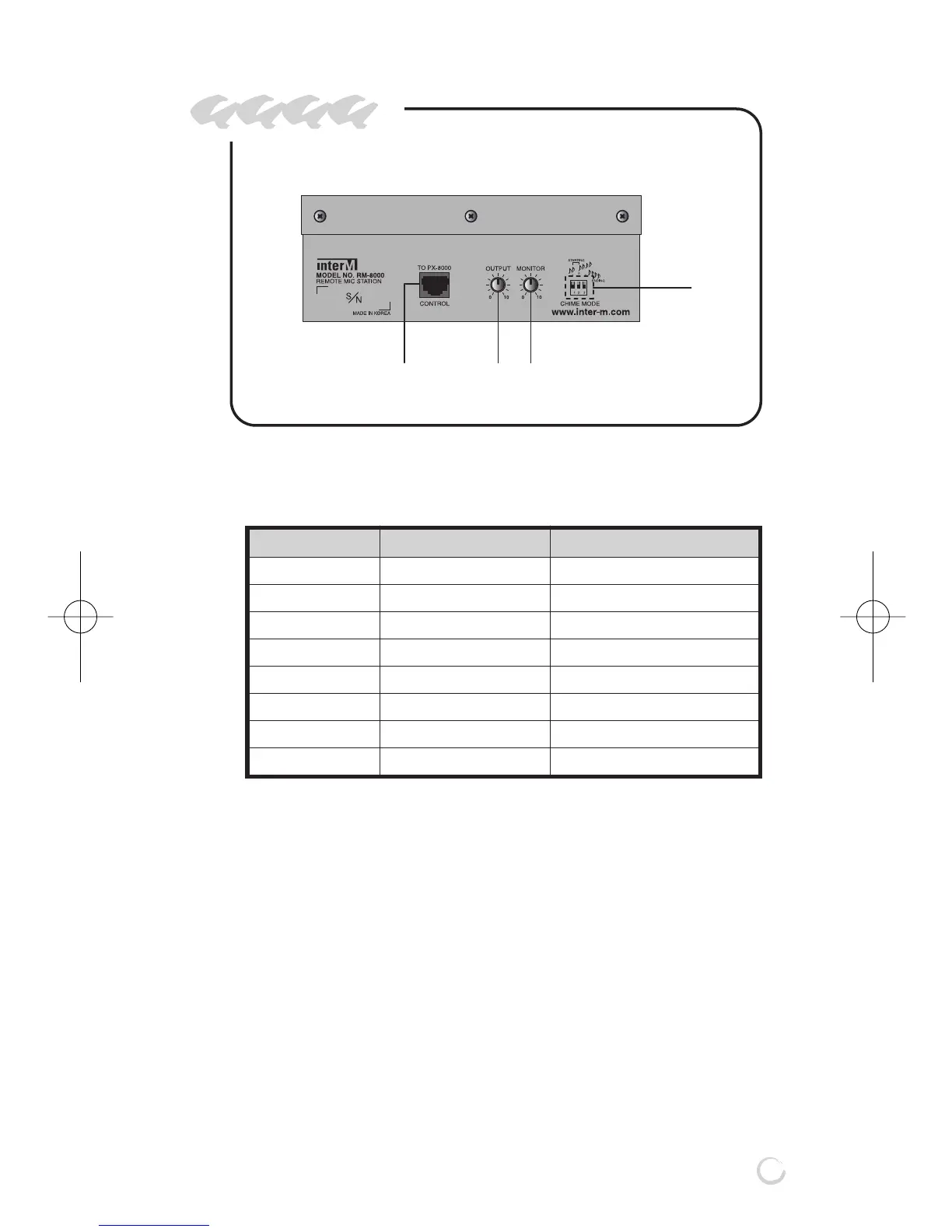

Inter-m RM-8000 - Rear Panel

11
11. MODULAR JACK
Terminal to connect to PX-8000 using CAT5.
22
22. OUTPUT VOLUME
Volume to adjust sound volume of MIC and chime
broadcasting.
33
33. MONITOR SPEAKER VOLUME
MON SPK (Monitor Speaker): Volume to adjust sound
volume of the built-in Monitor Speaker.
9
RM-8000(REMOTE MIC STATION)
4
321
Rear Panel
PIN Number
1
2
3
4
5
6
7
8
Functions Color
Tx- BLU
Tx+ BLU/WHT
Rx- GRN
Rx+ GRN/WHT
GND ORG
VCC ORG/WHT
Audio+ BRN
Audio- BRN/WHT
