Inter-m RMX-1426 Operating Manual

FRONT PANEL CONTROLS
33

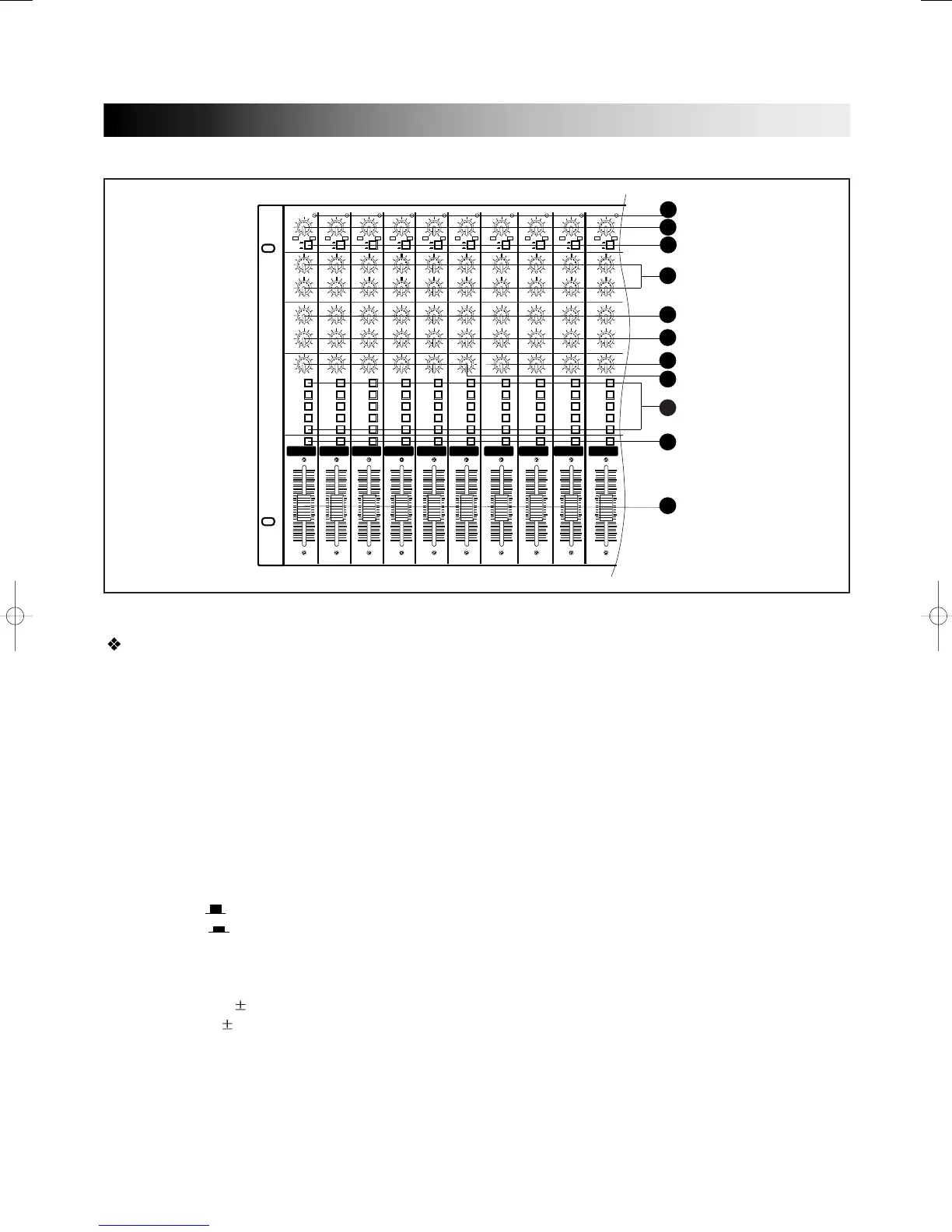

INPUT CONTROL PART
1. PEAK INDICATOR
This indicator detects peak level after the EQ.
It will light red at 3dB before clipping to warn that clipping level has nearly been reached.
2. TRIM [GAIN CONTROL]
The gain control adjusts the gain of the input according to the relevant input sound source.
Gain adjusting range of the this gain is 44dB.
For Mic input connected to the XLR connector, the range is -16dB~-60dB.
For Line input connected to the phone connector, the range is +24dB~-20dB.
3. INPUT SELECTOR
This switch selects the input connector for the channel.
When MIC( ) is selected, the input signal will be taken MIC connector. (balanced XLR type)
When LINE( ) is selected, the input signal will be taken LINE connector. (balanced XLR type)
4. EQ CONTROL
The equalizer section provides the high and low range at the following frequencies.
HIGH : 12KHz,
15dB, shelving type
LOW : 80Hz,
15dB, shelving type
5. AUX CONTROL
The volume control the level of the signal that is output to the AUX bus.
AUX is placed before the channel fader, it will be not affected by the channel fader.
6. EFX CONTROL
The volume control the level of the signal that is output to the EFX bus.
EFX is placed after the channel fader, it will be affected by the channel fader.
