Inter-m RMX-1426 Operating Manual

77

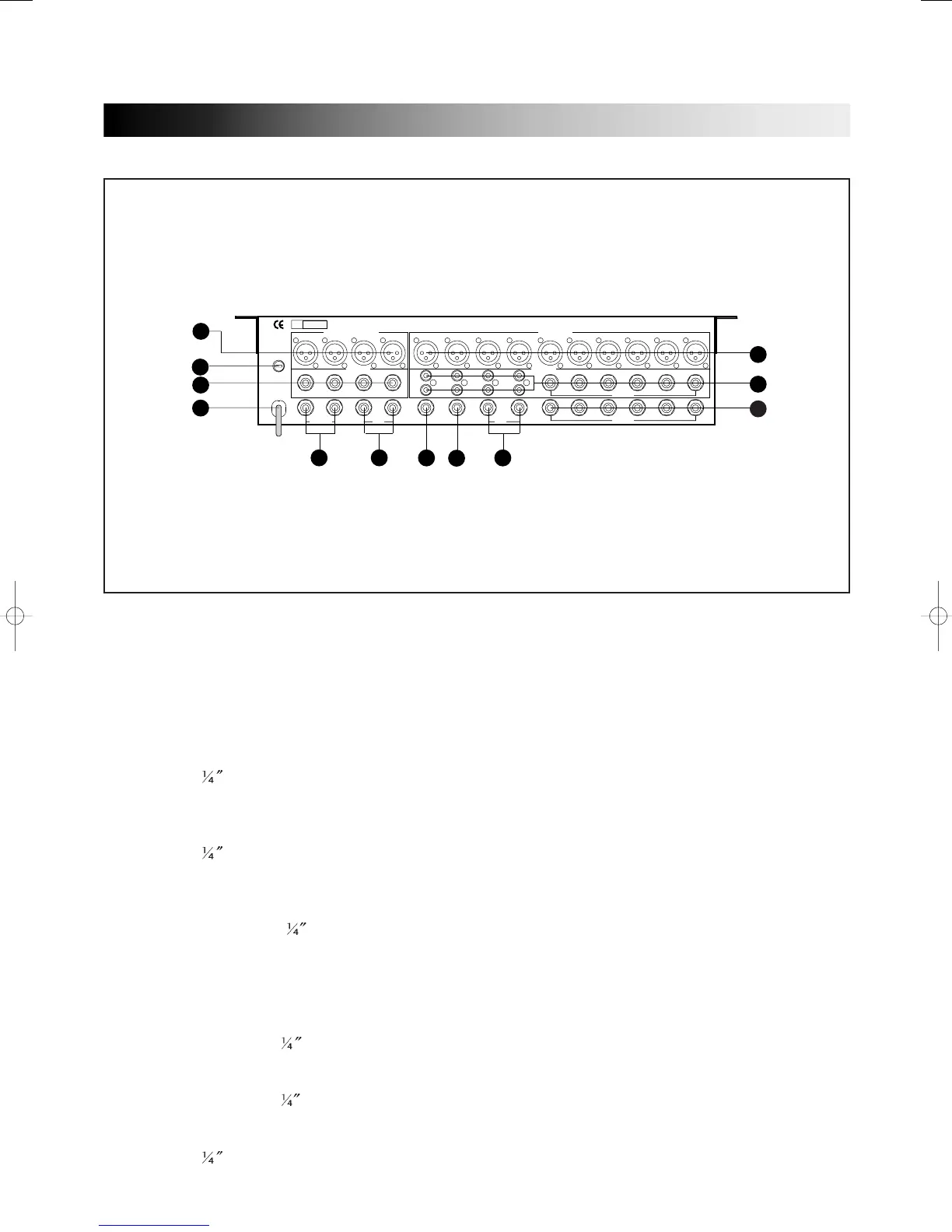

REAR PANEL CONTROLS
1. MIC INPUT
These are XLR-type connector. (1:sleeve, 2:hot, 3:cold)
Nominal input level is -60dB(mono channel) and -50dB(stereo channel).
Phantom power(+48V) can be supplied to these jack. Phantom power is turned on/off using by the
phantom power switch.
2. LINE INPUT
These are
phone jacks which input the signal for each input channel.
Nominal input level is -20dB.(tip:hot, ring:cold, sleeve:ground)
3. SUB IN
These are
phone jacks which input the signal from sub mixer or other device. Nominal input level is
+4dB.
4. EFX RETURN [L/MONO, R]
These are unbalanced
phone jacks.
The nominal input level and impedance is +4dB/10KΩ.
If only the L jack is used, the input signal will be mono and the same signal will be input to the R jack as
will.
5. AUX SEND
These are unbalanced
phone jack with a nominal output level and impedance is +4dB/600Ω.
6. EFX SEND
These are unbalanced
phone jack with a nominal output level and impedance is +4dB/600Ω.
7. INSERT I/O
These are
phone jacks patched in front of the output fader.
The nominal input level and impedance is 0dB/600Ω, and the nominal output level and impedance is
6
5
4
3
2
1
7/8
9/10
EFX
AUX
4
3
2
1
FUSE
T315mAL/250V
4
3
2
11/12
13/14
EFX SEND
+4dB
R
L
R
L
MIC INPUT/BAL
LINE INPUT
MONITOR
PROGRAM OUTPUT
1
STEREO
AC INPUT
230V 50Hz, 36W
~
L/MONO
AUX SEND
+4dB
SUB INPUT
+4dB
R
+4dB
EFX RETURN
+4dB / BAL
+4dB
+4dB/BAL
0dB
INSERT
S/N
4
3
2
1
13
14
11
12
9
10
7
8
6
5
4
3
2
1
BAL
3
1
9
2
5
6 4
7
8
12
11
10
