RMX-1426 Multichannel Audio Mixer

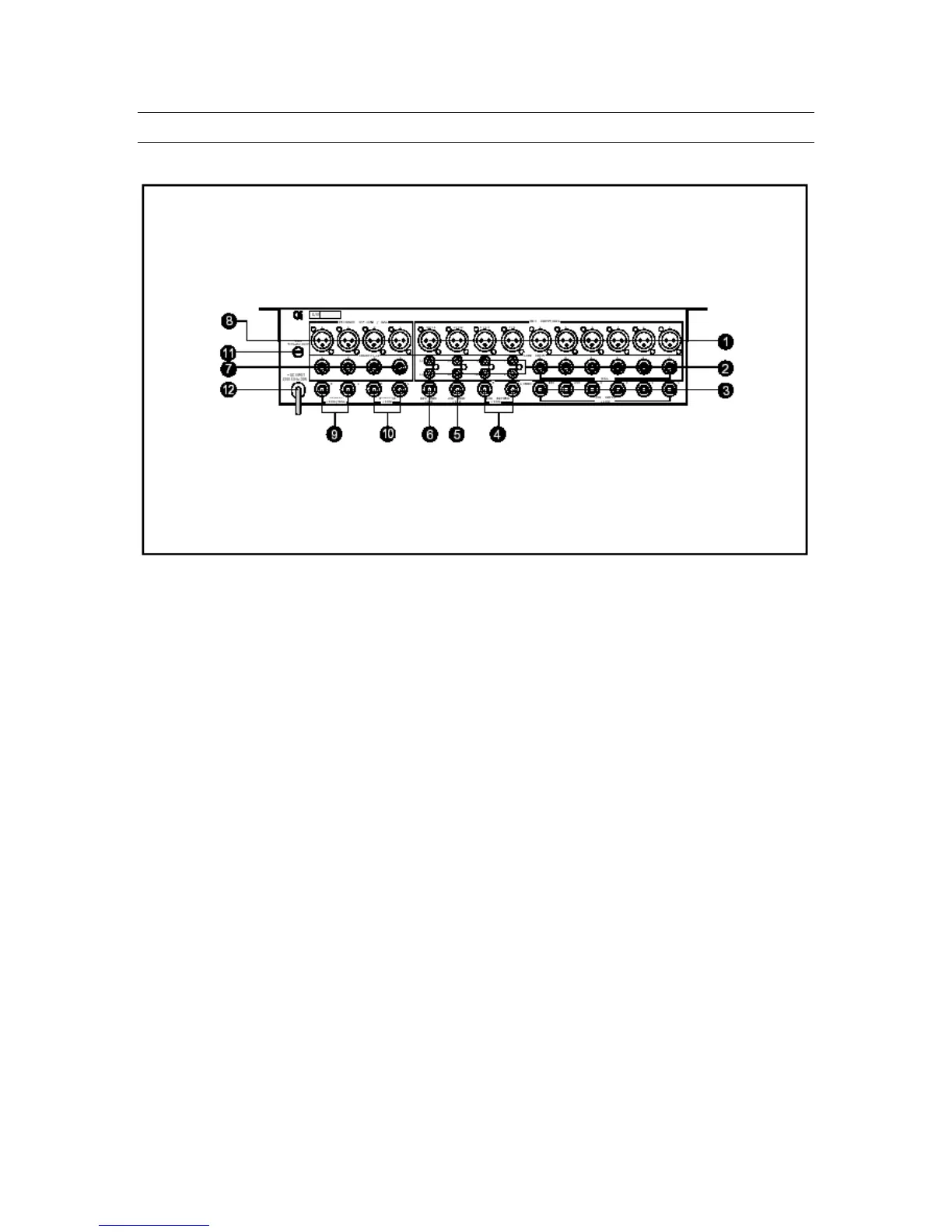

Rear Panel Controls
1. Mic Inputs 1-14
Mic-level inputs on balanced three-pin XLR connectors.
Channels 1-6 are provided at nominal input level of –60dB (mono).
Channels 7-10 are provided at nominal input level of –50dB (stereo).
2. Line Inputs 1-14
Line-level inputs.
Channels 1-6 are provided on balanced 1/4" phone connectors.
Channels 7-14 are provided on unbalanced RCA connectors.
3. Sub Inputs 1-6
Line-level inputs on unbalanced 1/4" phone connectors. These are provided for
input of signal from a sub-mixer or other external device.
4. EFX Return (L/MONO, R)
Line-level inputs on unbalanced 1/4" phone connectors. These are provided as
stereo inputs. If only the L jack is used, the input signal will be seen as mono and
sent equally to both L and R channels of the master buss.
5. Aux Send
Line-level outputs on unbalanced 1/4" phone connectors. These are provided for
connection to an external processor or other line-level input.
6. EFX Send
Line-level outputs on unbalanced 1/4" phone connectors. These are provided for
connection to an external processor or other line-level input.
