Operating Instructions
4/8-indent crimping tool CO.236.00
Rev.: 2015-10-16 6 / 12
EN
4 Changing the locator
Locator CO.244.00 (setting 1-6) and CO.245.00 (setting 7-12) are supplied with the crimping
tool.
The Range of the application can be retrieved from the matrix. The locator can be switched
by opening and removing the hex screws with an allen wrench:
· Unscrew the central socket-head screw on the mounted locator (3) using
an SW 2.5 mm Allen key, using another Allen key on the other side for countering
as necessary.
· Remove the locator (3).
· Fasten the locator (3) by the same sequence in reverse.
5 Changing the battery
A type 2025 battery for the digital display
will last around a year depending on how
often you use the crimper. You will need to
change the battery after this period. Open the
battery compartment upwards in the direction
of the arrow for easy battery removal and
replacement.
Info
Always set your crimper to the lower setting (reference setting) before you insert
a new battery.
Info
You will always need to recalibrate your crimper (CAL) after a battery change.
See 9. Calibration after a battery change, for how to proceed. Always dispose of batteries at
approved recycling collection points.

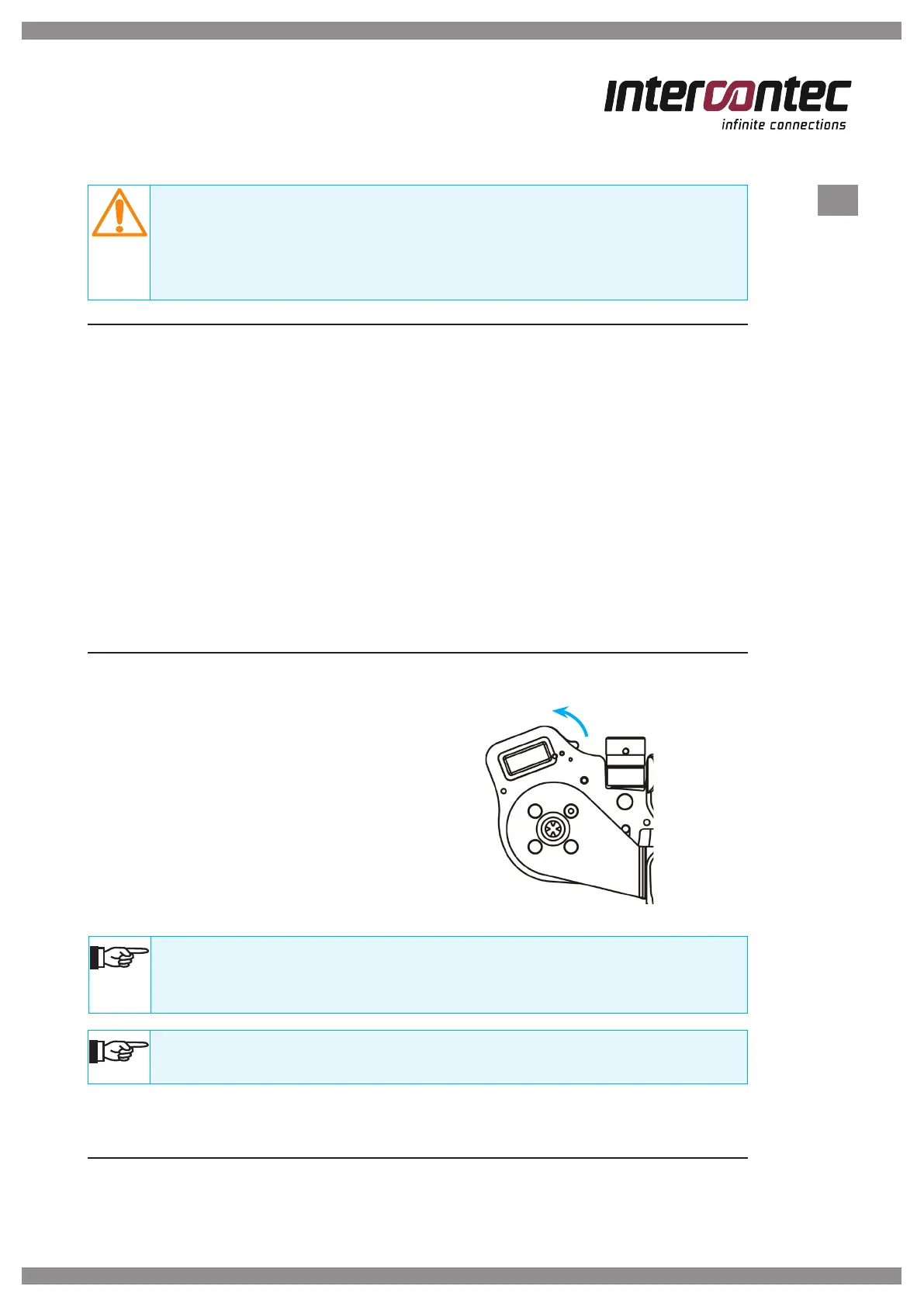

Figure 3
NOTE
Do not crimp the gauge or other similar objects as this may damage the crimper.
Always avoid crimping solid materials such as steel at hardness levels above
35 HRC.
