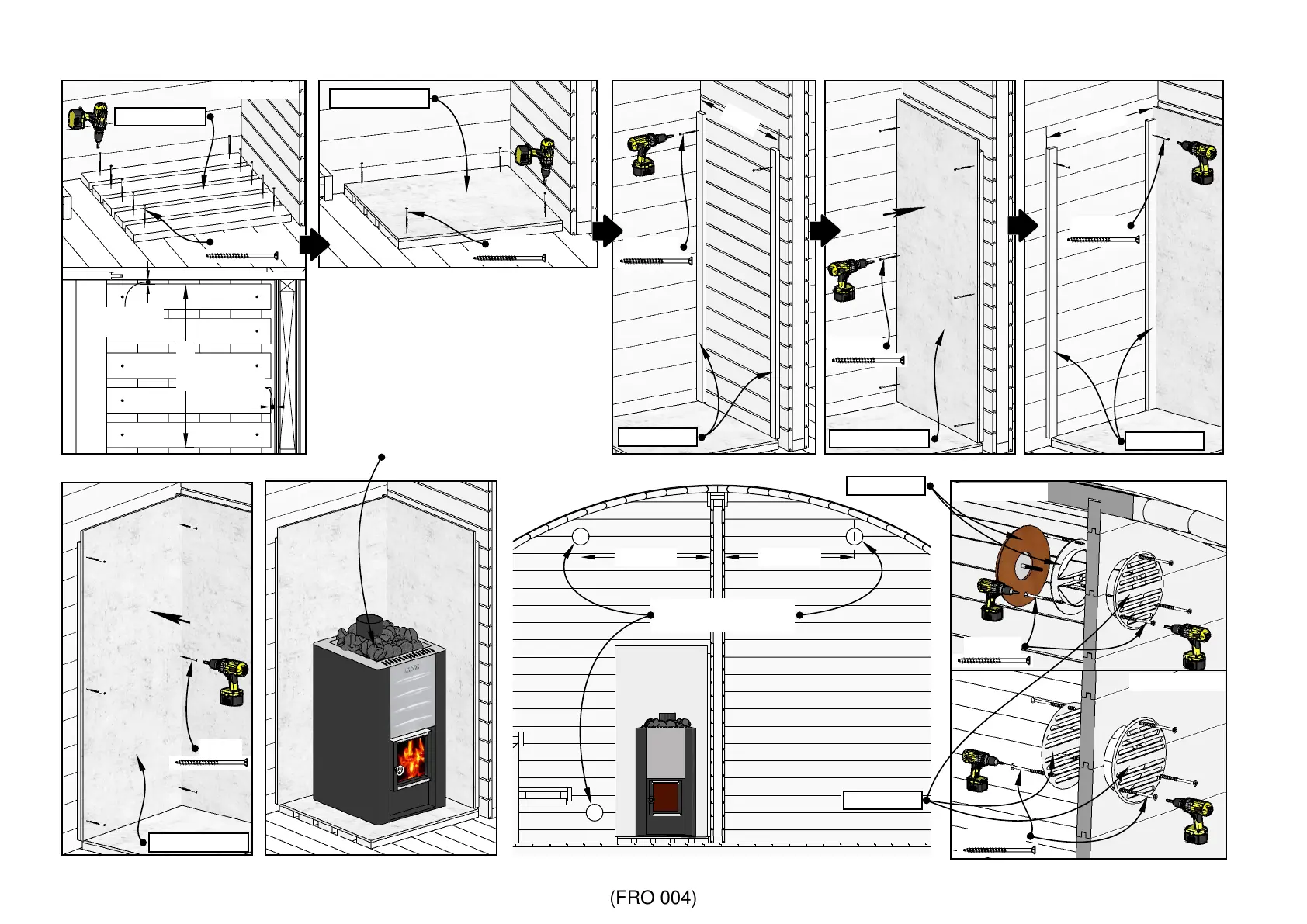

Frodo 195
12.
I
5xDET 20
10x I
Saunaroom
15 mm.
from wall
15 mm.
from wall
595
1xDET 20a
4x I
2xDET L
595
2x J
1xDET 20b
595
2x J
6x I
2xDET L
1xDET 20b
6x I
Place the sauna heater.
Check heater manual!
II
12x K
Upper vent
Lower vent
2xDET F
4xDET G
6x K
~850
~850
Make 3 holes Ø110
for ventilation.
(FRO 004)
