Please note:
The cylinder is delivered fully preassembled.
On delivery, the knob module is in the factory state and must be programmed before
initial operation/installation. In this regard, see the Service Device instructions for use.
All of the described proceedings always relate to a programmed knob module.
In the version for Mifare transponders, the knob must be "woken up" by turning it on
before every step.
Installation of the Cylinder Body
Important: Before assembling the knob module, always check the freedom of movement of
all components.
Step 1: Remove the fixing screw and dismantle the existing cylinder body.
Step 2: Insert the cylinder body and secure it with the fixing screw.

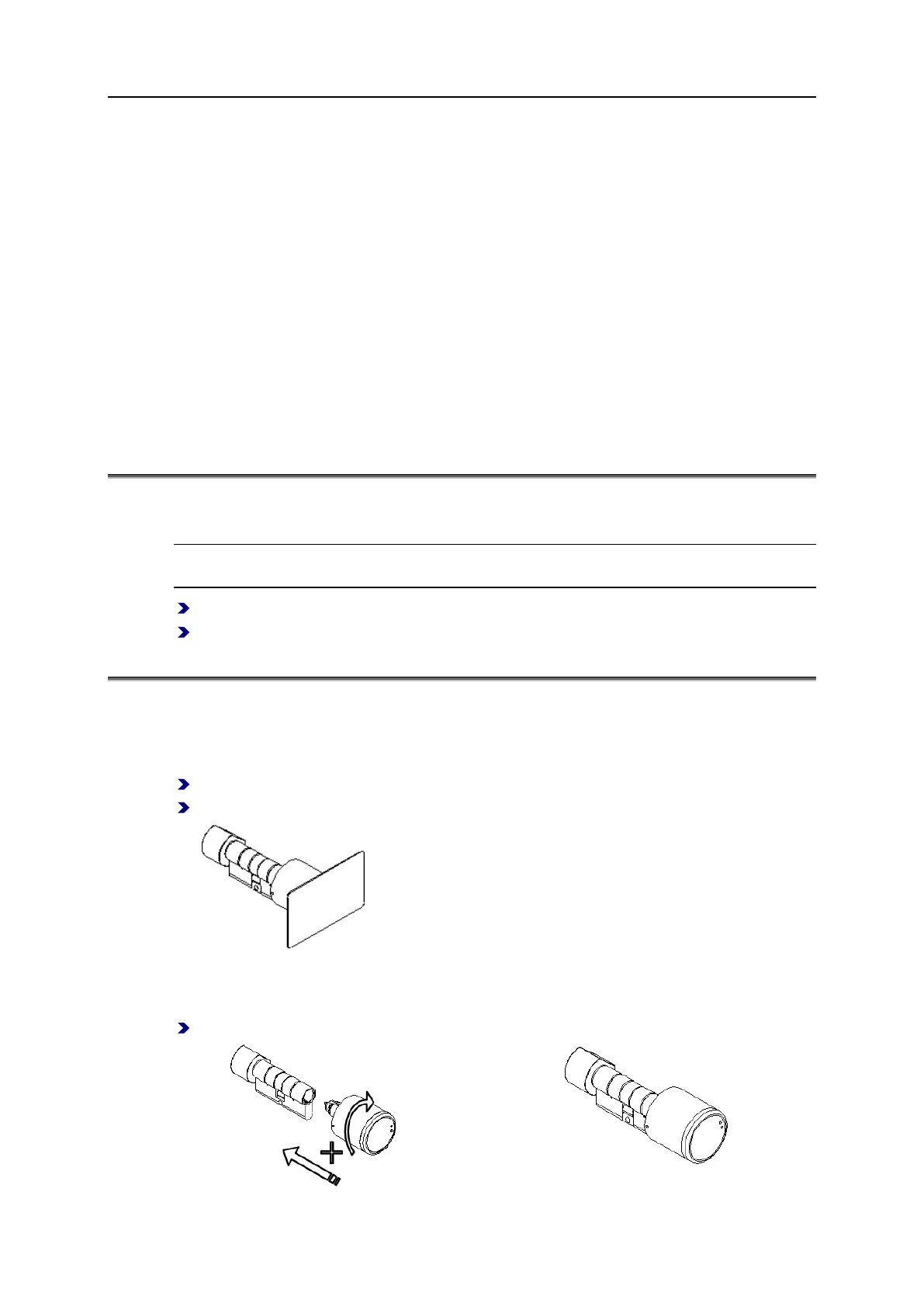

Installation of the Knob Module (with Disassembly
Card)
Step 1:"Wake up" the knob module by turning it.
Step 2: Hold the disassembly card in front of the knob module.
Knob module switches to disassembly mode.
Step 3: Insert the knob module into the cylinder body while turning it.
HAPTER
Installation/Dismantling
