067548-001

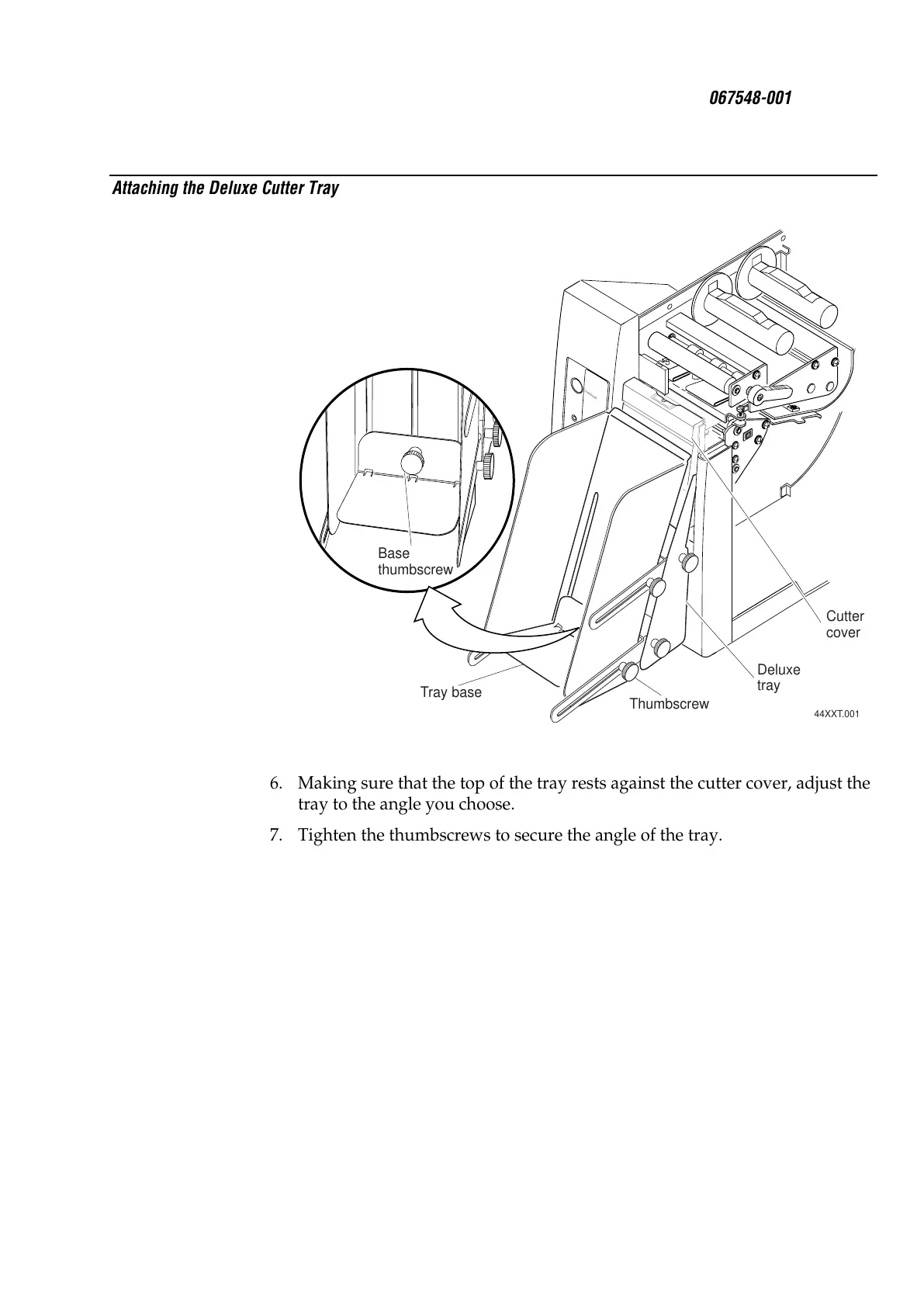

Attaching the Deluxe Cutter Tray
Feed/Pause
Power/Data
Alert
Empty/Pause
IntermecIntermec
4420
Cutter
cover
44XXT.001
Deluxe
tray
Tray base
Thumbscrew
Base
thumbscrew
6. Making sure that the top of the tray rests against the cutter cover, adjust the
tray to the angle you choose.
7. Tighten the thumbscrews to secure the angle of the tray.
