6 EasyCoder Printer (PX4i and PX6i) RFID Kit Installation Instructions

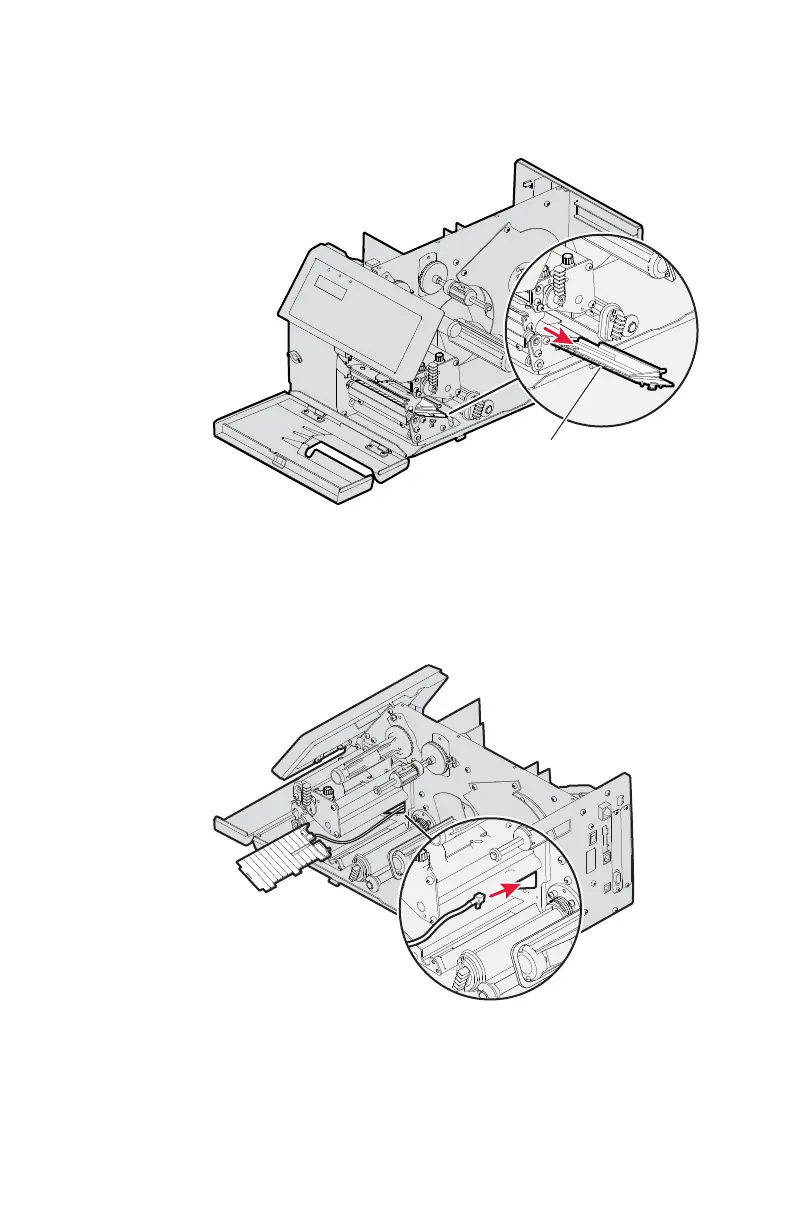

4 Carefully remove the lower media guide and upper media
guide assembly.
5 Remove the upper media guide from the lower media guide.
6 Route the antenna cable from the RFID lower media guide
through the opening in the print engine base. Make sure to
route the cable in front of the label stop sensor (LSS) guide
bar.
Upper and lower media
guide assembly
