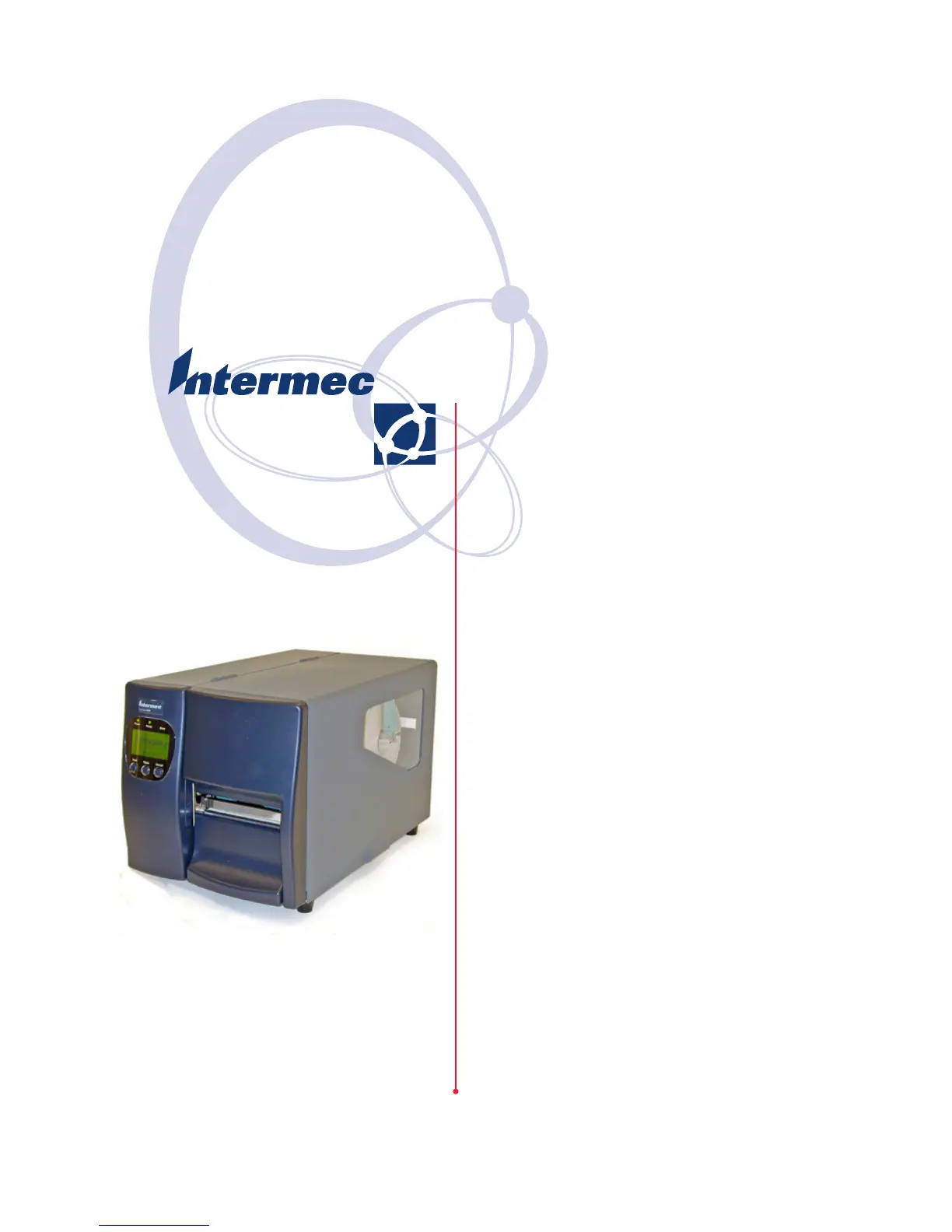

Intermec EasyCoder PD4

Other manuals for Intermec EasyCoder PD4

Service Manual114 pages

Programmer's Reference Manual162 pages

Installation Instructions12 pages

Quick Start Guide3 pages

Questions and Answers

S
Shannon VasquezAug 9, 2025
How to adjust print position on my Intermec EasyCoder PD4 Label Maker?
- S
  Sarah OconnorAug 9, 2025
  If the printout from your Intermec Label Maker is not in the desired position, consider these factors: * Check the application settings or ESim commands for possible errors. * Inspect the label gap sensor for disturbances caused by dust, stuck labels, or an incorrectly loaded transfer ribbon. Clear or clean as necessary. * Ensure the media is guided properly through the print mechanism, with the edge guide on the media supply post guiding the media flush with the guide plate. * Verify that the media characteristics match the specifications in the User’s Guide regarding the position and size of slots, black marks, or punched holes.
D
Dawn OwensAug 19, 2025
What to do if my Intermec EasyCoder PD4 Label Maker jams labels during printing?
- A
  Andrea NewtonAug 19, 2025
  If your Intermec Label Maker is jamming or tangling labels during printing, clear the media jam. If a label is stuck on the thermal printhead, remove it using a soft cloth soaked with isopropyl alcohol or a cleaning card.
K
Katherine DavisOct 29, 2025
What to do if the Error LED light turns solid red on my Intermec EasyCoder PD4?
- J
  James WalkerOct 29, 2025
  If the Error LED light on your Intermec Label Maker turns solid red after printing stops, it could be due to several reasons: * The printer may be out of media or transfer ribbon. In this case, check and load a new supply if necessary. * The printhead might not be properly locked. Engage the printhead and ensure the printhead lever is locked. * There could be jammed media or ribbon. Clear any obstructions and reload. Clean any exposed parts with isopropyl alcohol or a cleaning card. * The label gap sensor might be obstructed. Clean the light path between the upper and lower parts of the label gap sensor using isopropyl alcohol or a cleaning card. * There might be bad settings or program command errors. Consult the User’s Guide or the ESim v5.xx for EasyCoder PD4, Programmer’s Re...
V
Victoria SimmonsNov 3, 2025
Why my Intermec EasyCoder PD4 is printing blank labels?
- J
  jeffreysextonNov 3, 2025
  If your Intermec Label Maker isn't printing anything on the label, consider these potential causes: * The supplies might be loaded incorrectly. Ensure direct thermal media is loaded with the heat-sensitive side facing down; if not, reload the media. * The wrong printer driver may be in use. Verify that the correct printer driver is specified on your host computer. * The Media Type, Paper Type, and Option setup might be incorrect. Check that the printer is set for the correct media type, paper type, and print method, using either the Setup mode or program commands. * There might be a bad connection between the printhead and main board. Ensure the printhead is properly inserted into the print mechanism. * The main board could be faulty. Use an oscilloscope to examine the printhead...
N
nicholastaylorNov 13, 2025
How to troubleshoot power issues on my Intermec Label Maker?
- E
  Elizabeth AndersonNov 13, 2025
  If your Intermec Label Maker's power control lamp isn't shining and the LCD display shows no message after switching it on, here's what to check: * Ensure the AC wall socket has power by testing it with another electrical device or a voltage meter. * Verify that the power cord connectors are fully inserted into both the printer's power cord receptacle and the wall socket. Disconnect and firmly reconnect both ends of the power cord. * Try a different power cord to rule out a faulty cord. * Check the voltage between the black and white wire in the connector at the power module end of the cable harness using a voltage meter. This will help identify if the power switch or cables to the power module are defective. * Inspect the fuse F1 on the power module. If it's blown, replace it w...
M
Michael ThompsonNov 23, 2025
Why is my Intermec Label Maker missing parts of the print image?
- M
  Mr. Michael ConleyNov 23, 2025
  When your Intermec Label Maker is printing, and part of the print image is missing along the feed direction, consider the following: * If using thermal transfer printing, inspect the transfer ribbon for wrinkles and creases. Reload the ribbon if necessary. * Check the printhead for dirt, adhesive residue, contamination from the back side of the transfer ribbon, or stuck labels. Clean the printhead using isopropyl alcohol or a cleaning card. Never use sharp tools. If cleaning doesn't resolve the issue, replace the printhead. * One or more of the heat-sensitive resistors ('dots') on the printhead may be damaged or worn out, requiring printhead replacement. * If the printing is weak or non-existent on either the inner or outer part of the media, the printhead balance may need to be r...

Summary

Before You Begin

Safety Summary

Outlines critical safety information for handling and operating the printer.

Energized Equipment Safety

Warns against working on energized equipment without authorization and proper safety.

Safety Icons and Warnings

Explains the meaning of various safety icons and symbols used in the manual.

1 Introduction

Description of EasyCoder PD4

Provides a detailed description of the printer's features and capabilities.

Safety Warnings

Lists essential safety precautions to follow before operating the printer.

2 Installation

Connections

Covers power connection and various computer interface options like Parallel, RS-232, and USB.

Controls and Indicators

Explains the functions of control lamps, display, control keys, and beeper.

3 Starting Up

Switching on the Printer

Procedure for powering on the printer and initial startup messages.

Printing a Test Label

4 Loading Media

Tear-Off (Straight-through) Loading

Peel-Off (Self-strip) Loading

Thermal Transfer Printing and Ribbon Load

5 Printing

Controlling the Printing

Setup Methods and Navigation

Setup Options

6 Options

7 Troubleshooting

Error Handling and Codes

Explains printer error handling, LED indicators, beeper signals, and error codes.

Clearing Media Jams

Detailed procedures for clearing media jams in different printer areas.

Entering Dump Mode

8 Maintaining the Printer

Printhead Cleaning

Detailed steps and warnings for cleaning the printer's printhead.

External Cleaning

Printhead Replacement

Step-by-step guide for replacing the printer's printhead.

Media Jams

9 Adjustments

Printhead Adjustments

Printhead Dot Line Position

Label Gap Sensor Adjustments

Ribbon Tension and Shield Adjustment

D Firmware Upgrading

Firmware Upgrading Requirements

Firmware Upgrading Instructions

Intermec EasyCoder PD4 Specifications

General

Print Resolution	203 dpi
Print Speed	4 inches per second
Maximum Print Length	39 inches
Print Method	Direct Thermal
Maximum Print Width	4.1 in (104 mm)
Memory	8 MB SDRAM
Connectivity	USB, Serial, Ethernet
Supported Barcode Types	Code 39, Code 128, UPC, EAN, Interleaved 2 of 5, PDF417, Data Matrix, QR Code
Media Thickness	0.0025 in to 0.01 in (0.0635 mm to 0.254 mm)
