74 Intermec EasyCoder PD4—User’s Guide
Appendix B—Media Specifications

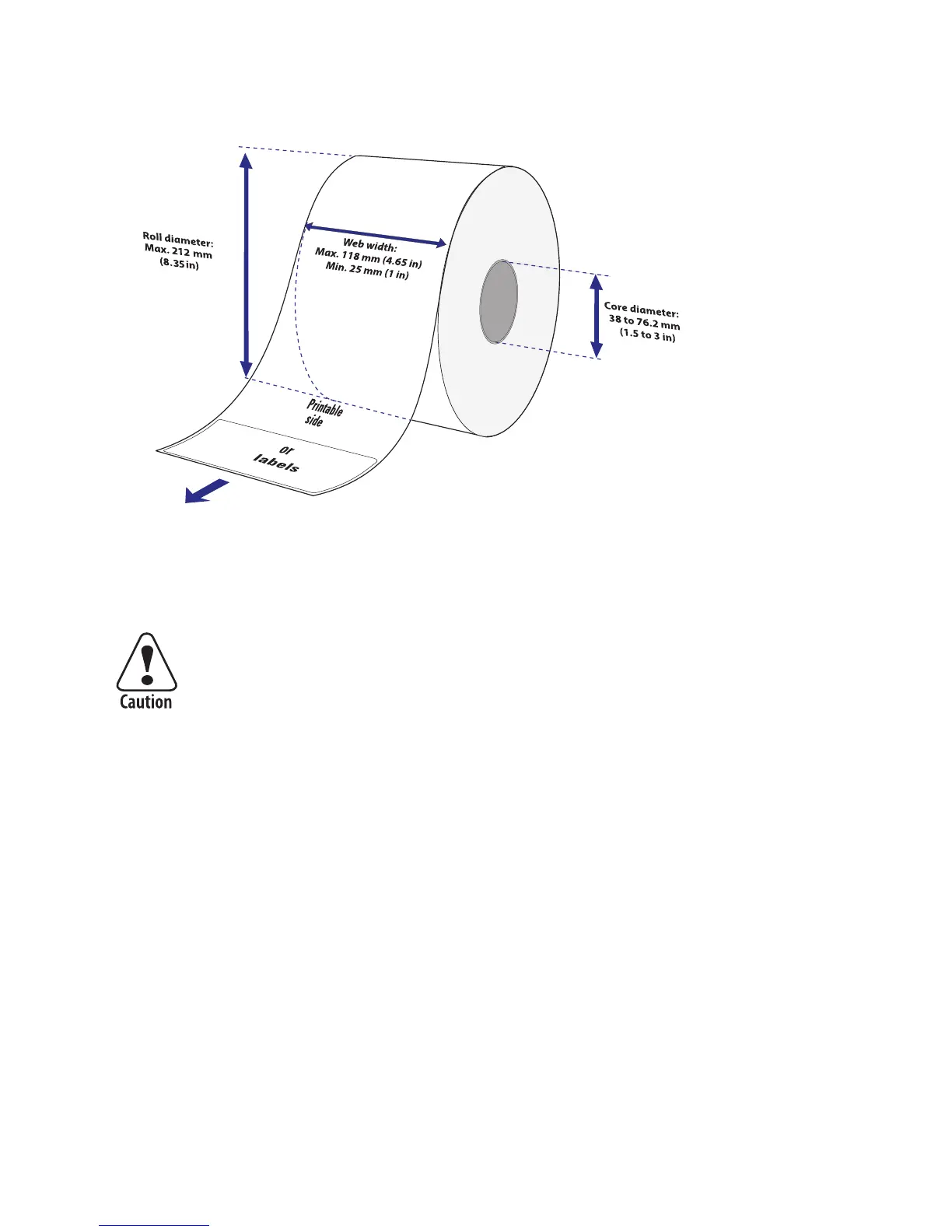

Media Roll Size
Core
Diameters: 38 to 76.2 mm (1.5 to 3 inches)
Width: Must not protrude outside the media.
e media must be wound up on the core in such a way that
the printer can pull the end free.
Internal Roll
Max. diameter: 212 mm (8.35 inches)
Max. width: 118 mm (4.65 inches)
Min. width: 25 mm (1.00 inches)
ickness: 6 to 250 µm (2.3 to 9.8 mils)
icker media may be used, but print quality will be reduced. e
stiffness is also important and must be balanced against thickness to
maintain print quality. Readjustment of the printhead alignment vs the
platen roll may be required (see Chapter 9).
Media rolls to be loaded inside the printer should be wound with the
printable side facing outwards.
e media supply must not be exposed to dust, sand, grit, etc. Any hard
particles, however small, can damage the printhead.
