Intermec EasyCoder PD4 - Ribbon Load

A
B
2
4a3
1
30 Intermec EasyCoder PD4—User’s Guide
Chapter 4—Loading Media

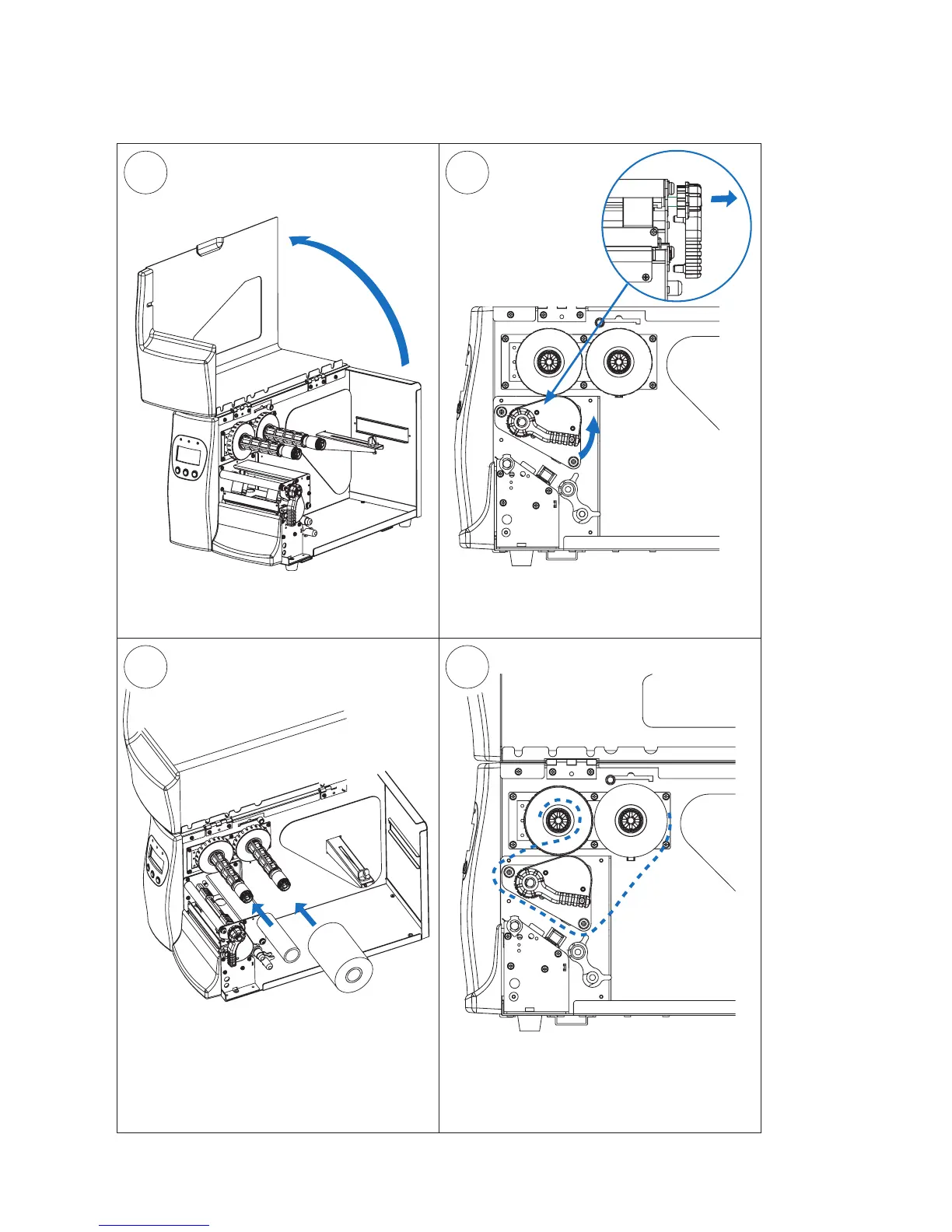

Open the side door.
Ink facing outward on ribbon roll:
Route the ribbon as illustrated and stick
it to the take-up core.
Load a fresh ribbon roll onto the ribbon
supply shaft (A) and an empty ribbon
core onto the ribbon rewind shaft (B).
Ribbon Load
Pull out the printhead lever and flip it
counterclockwise a quarter of a turn.
