10 Intermec EasyCoder PD4—User’s Guide
Chapter 2—Installation
Print Mechanism

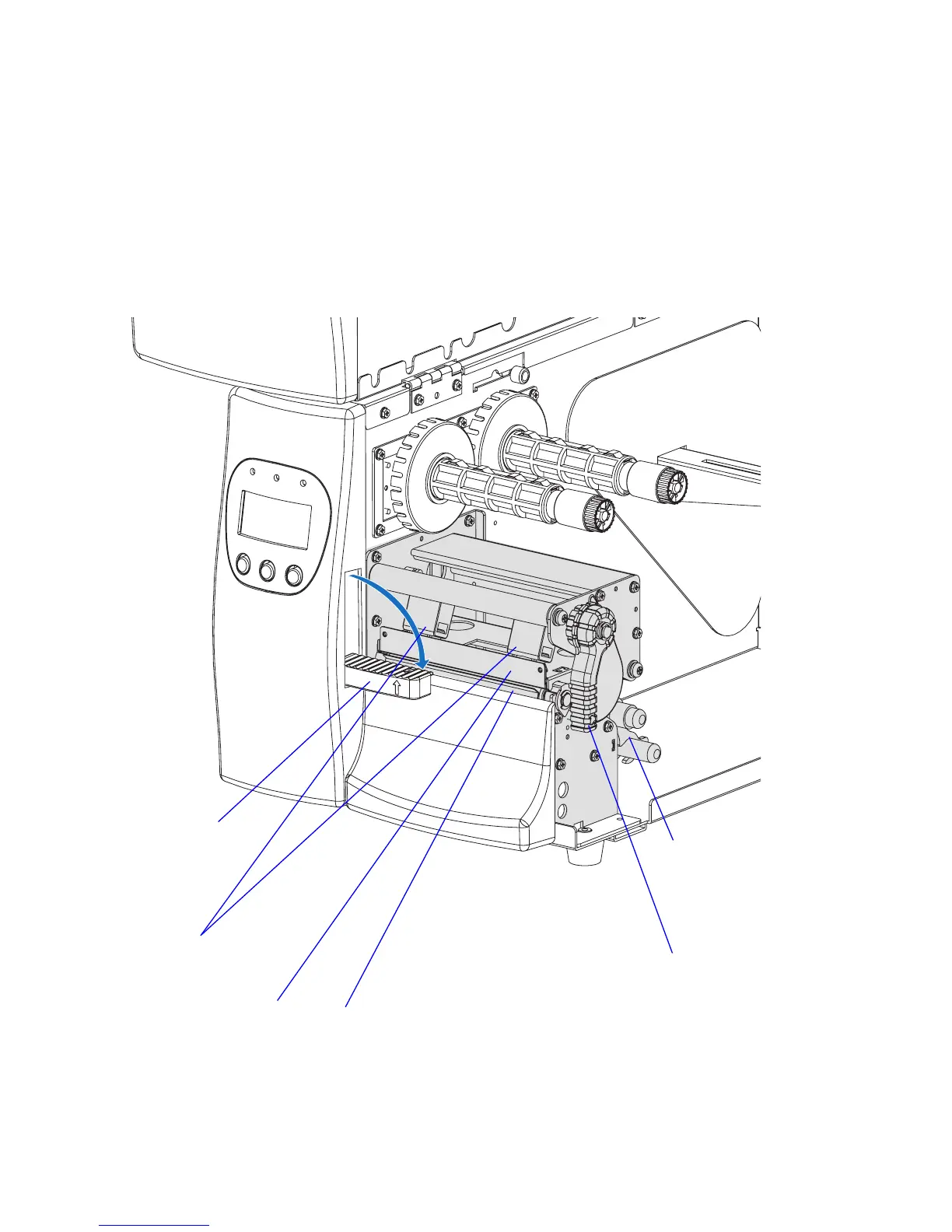

e print mechanism features either an 8 dot/mm (203.2 dots/inch) or
11.81 dots/mm (300 dots/inch) quick-mount thermal printhead.
In front of the print mechanism is a fold-out label taken sensor, which
can hold the printing of next label until the previous one has been
removed.
Printhead
pressure
adjusters
Tear bar
Printhead
lever
Label taken
sensor
Label
feed
guide
Thermal printhead
