62 Intermec EasyCoder PD4—User’s Guide
Chapter 9—Adjustments
Label Gap Sensor Position Adjustment
e label gap/black mark sensor is a photoelectric sensor that controls
the printer’s media feed by detecting gaps between labels, or slots or black
marks in continuous stock, depending on the printer’s setup in regard of
media type (see Chapter 5, “Printing”). An obvious prerequisite is that
the sensor must be aligned with the gaps, slots, or black marks. If using-
irregularly shaped labels, align the sensor with the front tips of the labels.
Use the lever at the rear side of the print mechanism to move the sensor
inward or outward. e point of detection can be seen from the front
when the printhead is lifted.

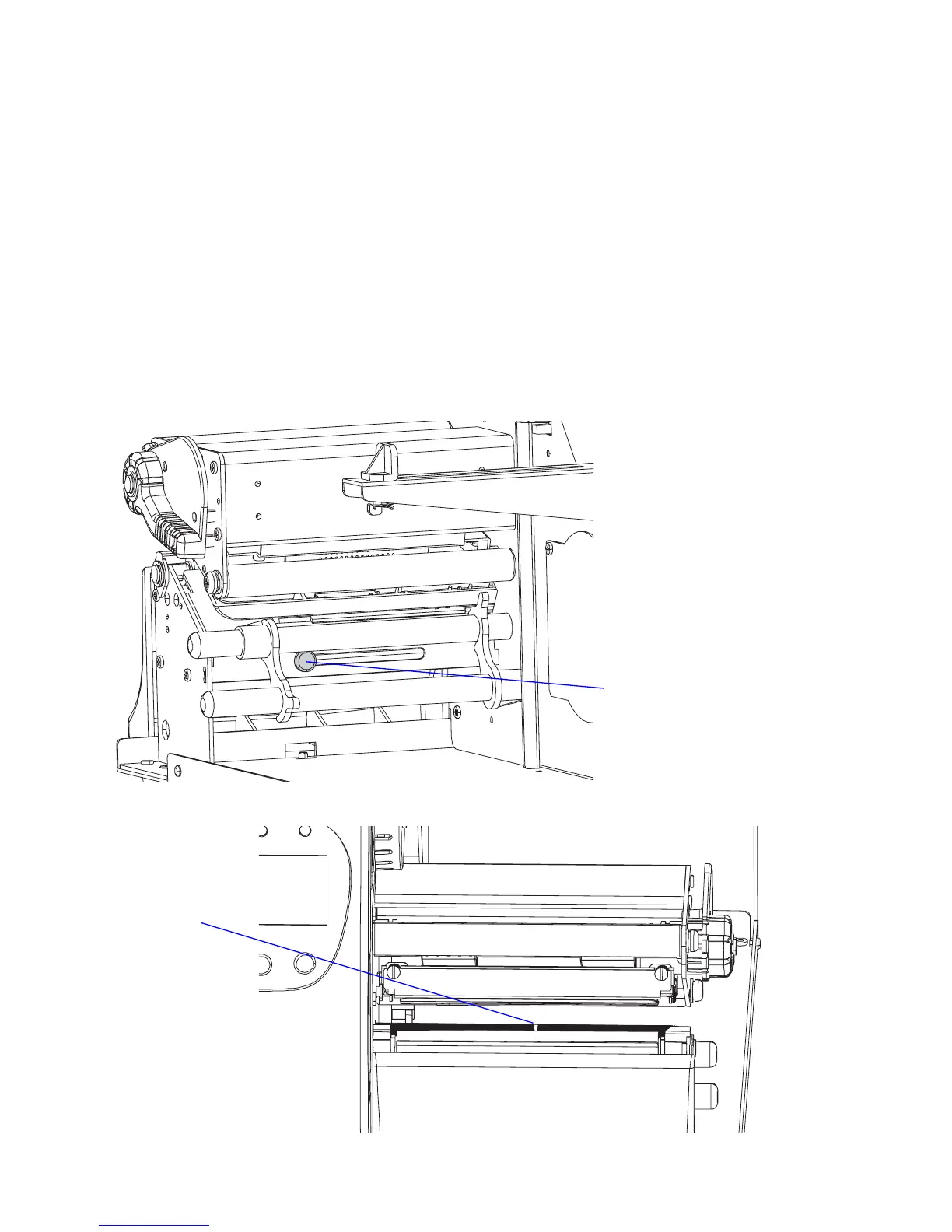

Point of
detection
Sensor lever
