Intermec EasyCoder PD4—User’s Guide 9
Chapter 2—Installation

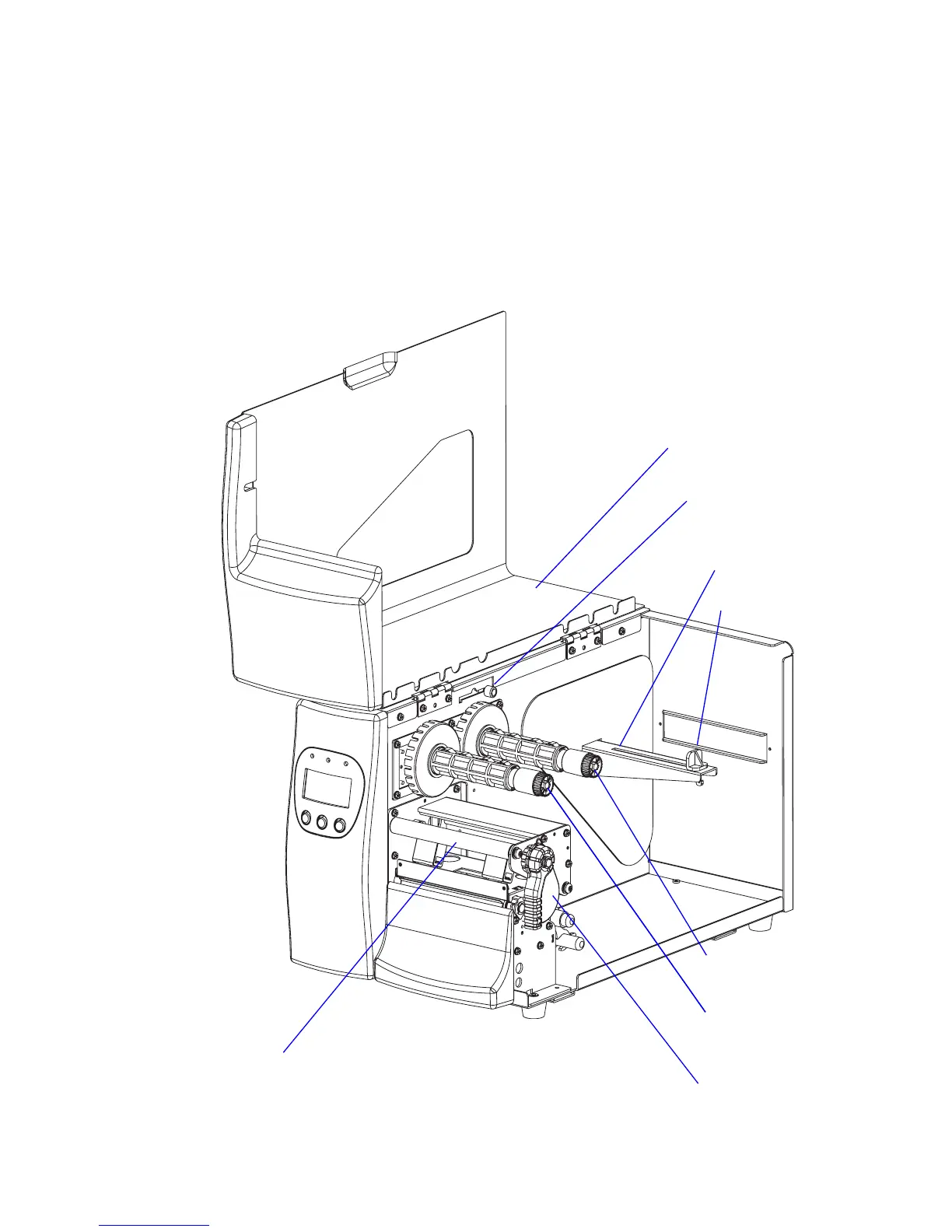

Media Compartment
e media compartment is covered by a side door that completely
encloses the print mechanism and media compartment. It can be opened
180° to provide full access to the media compartment. e inspection
window allows checking how much ribbon and media remains without
having to open the door. e media can be supplied from a supply post,
or from an external supply of fan folds behind the printer.
Ribbon rod
Printhead lever
Ribbon rewind
shaft
Ribbon supply
shaft
Supply post
Edge guide
Ink position lever
Side door (opened)
