76 Intermec EasyCoder PD4—User’s Guide
Appendix B—Media Specifications

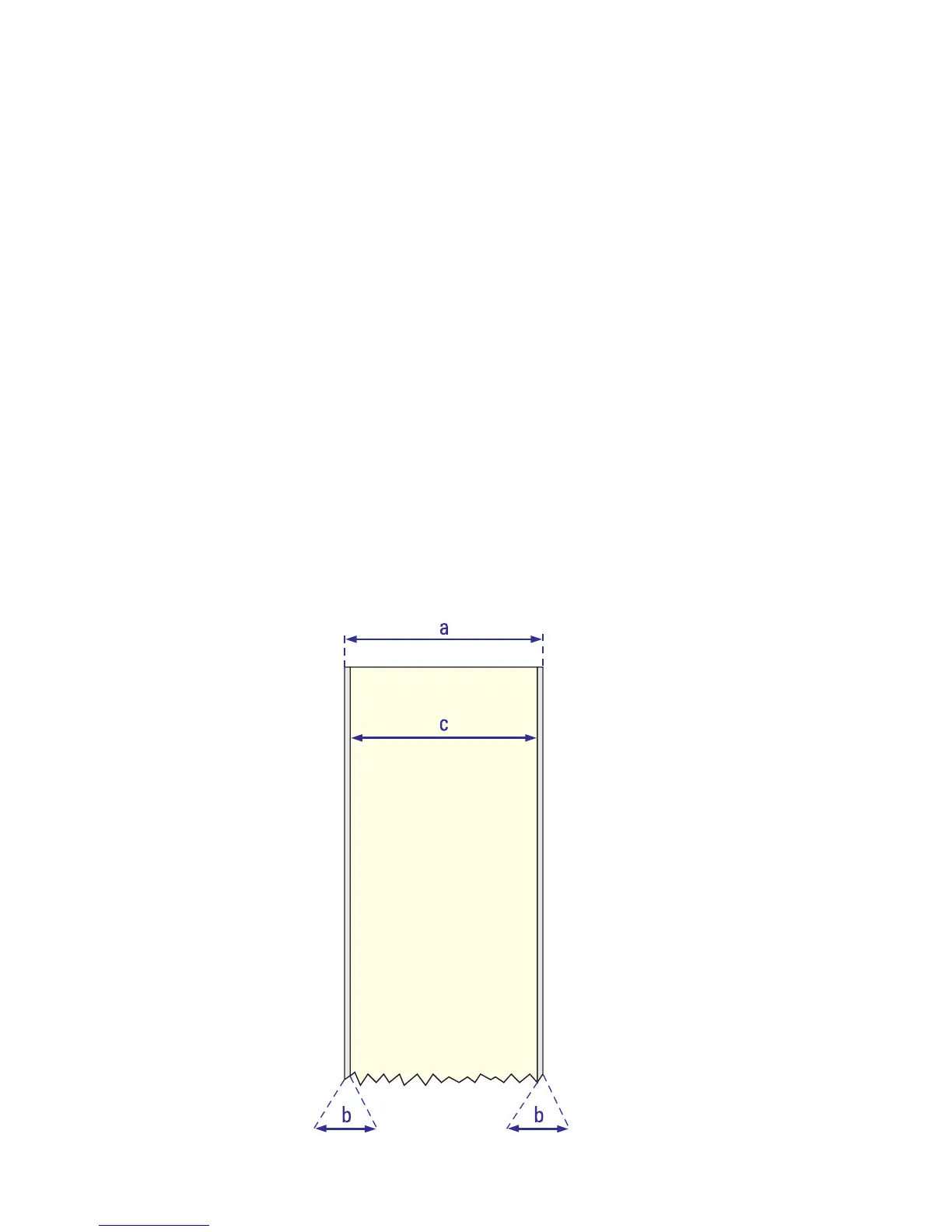

Self-Adhesive Strip
⇐ a ⇒ Media Width (including liner)
Maximum: 118.0 mm (4.65 inches)
Minimum: 25.0 mm (1.00 inches)
⇐ b ⇒ Liner
e liner must not extend more than a total of 1.6 mm (0.06 inches)
outside the face material and should protrude equally on both sides.
⇐ c ⇒ Media Width (excluding liner)
Maximum: 116.4 mm (4.58 inches)
Minimum: 23.8 mm (0.94 inches)
Paper Type Setup
• Plain paper
