EasyCoder Printer (PX4i and PX6i) RFID Kit Installation Instructions 7

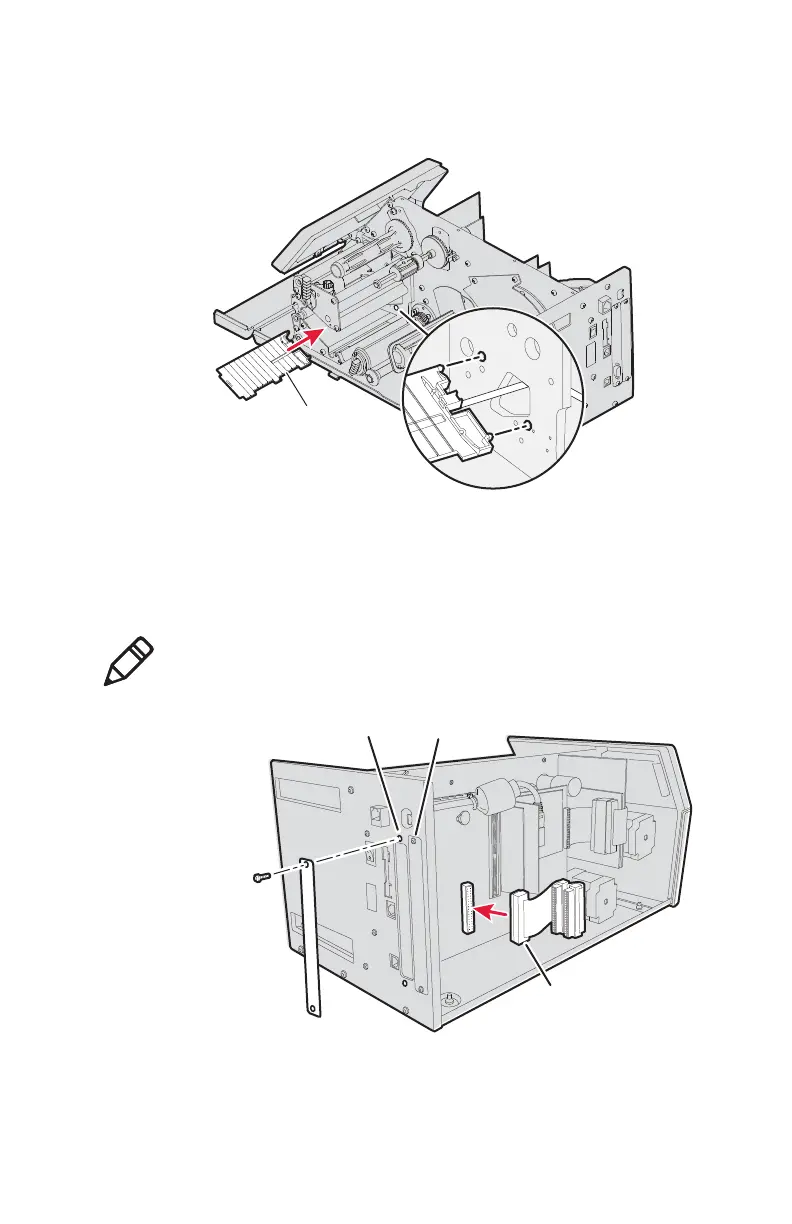

7 Slide the RFID lower media guide into the printer. Insert the
pins on the guide into the holes on the print engine base.
8 Snap the RFID lower media guide into place.
9 Insert the upper media guide.
10 On the back of the printer, remove the two screws that secure
the cover plate to slot 1 or slot 2, and remove the cover plate.
11 Connect the dual slot I/O cable to the main board.
RFID lower
media guide
Note: You need to use the first available slot on the printer
starting from the left (slot 1).
Screw
(2 places)
Slot 1
Slot 2
Dual slot I/O cable
