Chapter 1 — Using the PF8 Printers
6 PF8d and PF8t Desktop Printer User’s Guide

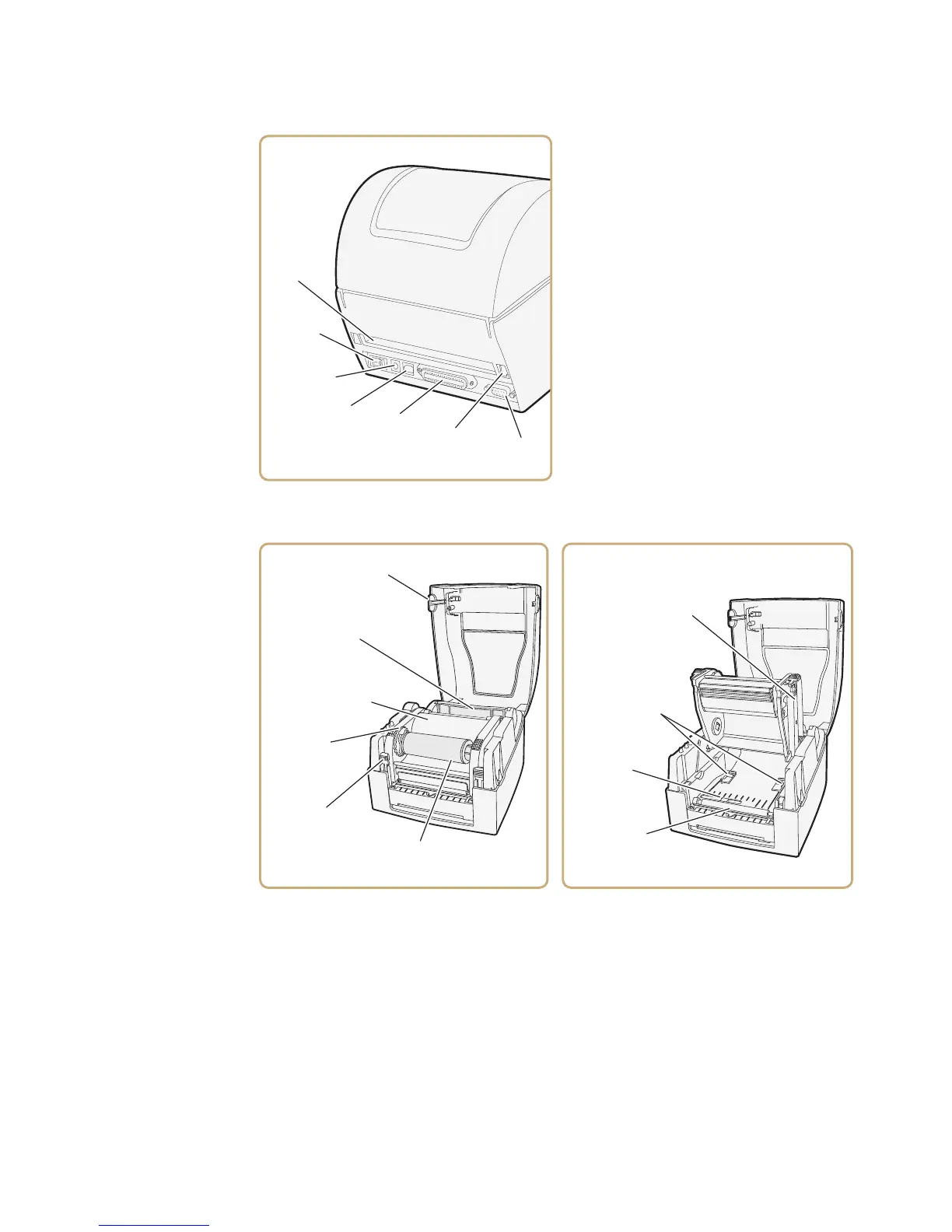

PF8t Rear View
PF8t Media Compartment: The PF8t is a thermal transfer or direct thermal
capable printer. The media compartment accommodates the media supply and
the transfer ribbon supply.
Serial
port
Power
switch
USB
port
Ethernet
port
Power
socket
Parallel
port
Fanfold
label slot
Cover open
button
(2 places)
Print
mechanism
Locking
mechanism
(2 places)
Label roll
core
Rewind shaft and empty
ribbon take up core
Label guide
(2 places)
Platen
roller
Black mark
sensor
Ribbon
rewind
wheel
Print line
adjustment
gear

Intermec PF8D Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Flash memory	4 MB
Certification	CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
Internal memory	8 MB
Built-in barcodes	MaxiCode, PDF417
Page description languages	EPL
Form factor	Desktop
Dimensions (WxDxH)	168 x 218 x 116 mm
Compatible operating systems	Windows 98/Me/2000/XP Pro/Server 2003/Vista
Core diameter	25.4 mm
Ribbon length	274.32 m
Maximum media length	1727 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Maximum media length (imperial)	68 \
Supported paper width (imperial)	4.1 \
Power requirements	100–240 V AC/50–60 Hz, 1.9 A
AC adapter output current	3 A
AC adapter output voltage	24 V
Storage temperature (T-T)	40 - 104 °F
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
