Intermec PF8D User Manual

Chapter 1 — Using the PF8 Printers
PF8d and PF8t Desktop Printer User’s Guide 27
Loading Thermal Transfer Ribbon (PF8t Only)
You need to use thermal transfer ribbon to print on thermal transfer
(non-heat-sensitive) media. Make sure to select ribbon that matches
the face materials of the media to obtain the best durability and print
quality.
To load a thermal transfer ribbon roll

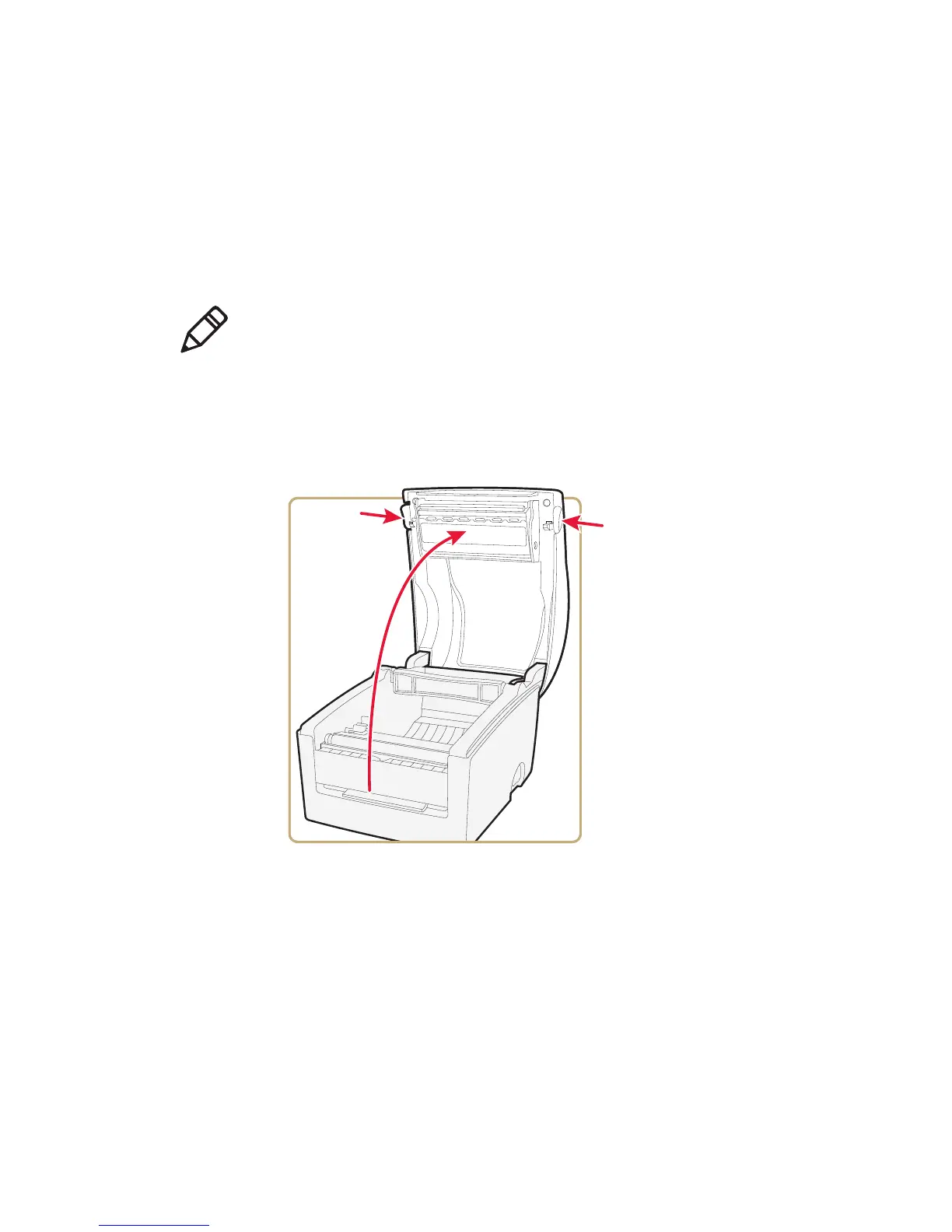

1 Press the cover open buttons on both sides, and open the cover.
Note: The PF8t can use only ribbon that is “wind direction out,”
which means that the ribbon is loaded with the inked side (dull side)
facing out. Using thermal transfer ribbon that is “wind direction in,”
may damage the rewind motor.

Intermec PF8D Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Flash memory	4 MB
Certification	CE, FCC Class A, cULus, UL, GS, TUVGS, CCC, C-TICK, BSMI
Internal memory	8 MB
Built-in barcodes	MaxiCode, PDF417
Page description languages	EPL
Form factor	Desktop
Dimensions (WxDxH)	168 x 218 x 116 mm
Compatible operating systems	Windows 98/Me/2000/XP Pro/Server 2003/Vista
Core diameter	25.4 mm
Ribbon length	274.32 m
Maximum media length	1727 mm
Maximum roll diameter	127 mm
Supported paper width	104 mm
Maximum media length (imperial)	68 \
Supported paper width (imperial)	4.1 \
Power requirements	100–240 V AC/50–60 Hz, 1.9 A
AC adapter output current	3 A
AC adapter output voltage	24 V
Storage temperature (T-T)	40 - 104 °F
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
