PM23c, PM43, PM43c UART+Industrial Interface Installation Instructions 7

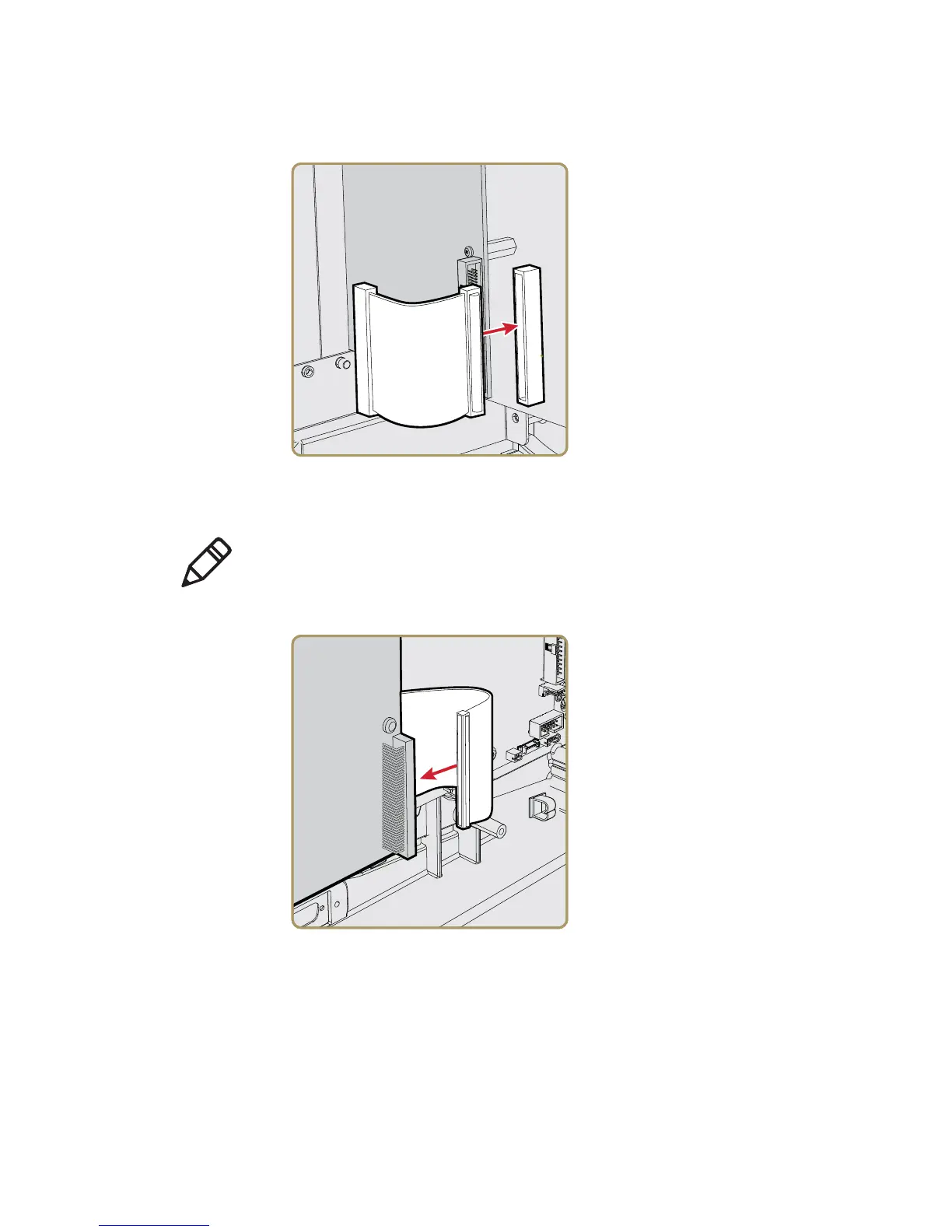

5 Insert the single or dual option board cable into the 80-pin
connector on the printer main board.
6 Insert the other end of the option cable into the 80-pin
connector on the UART+Industrial interface board.
Note: You may need to use the dual option cable to connect
to the main board depending on which slot you use for the
UART+Industrial interface option board.
