9
DANGER: Removal of any connector, disassembly of
transducer, shortening of any cable or use of any cable
other than that supplied by Interphase will void your
warranty. NO EXCEPTIONS.

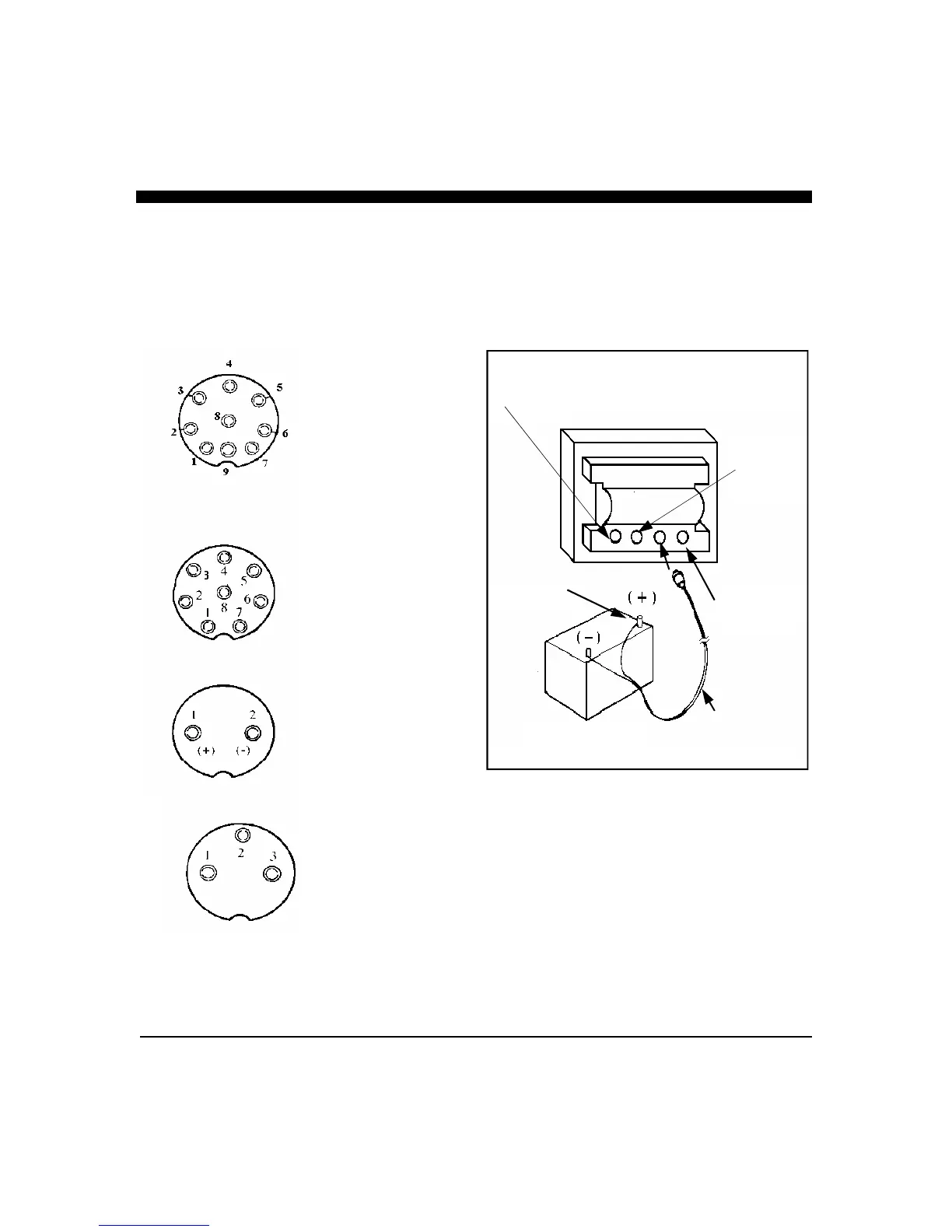

Cable Connectors (view from front of female plug)
Transducer:
1 White 1st element
2 Brown 2nd element
3 Orange 3rd element
4 Yellow 4th element
5 Green 5th element
6 Blue 6th element
7 Violet 7th element
8 Gray 8th element
9 Shield Ground/Return
Speed/Temperature Input
1 Speed Data
2 +5VDC
3 N/C
4 N/C
5 N/C
6 +Temp. Sensor
7 -Temp. Sensor
8 Shield/Ground
Power Connector
1 +12 vdc
2 - (Ground)
NMEA Input
1 Data
2 Return ( Ground)
3 N/C
N/C = No Connection
12 Volt Battery
Red Wire NMEA 0183
Input (3-pin)
Transducer
(9-pin)
Speed/
Temp.
(8-pin)
12 VDC
Power Cable
(2-pin)
