5
1. Use your thumb to press the
HANDSET RETAINER
2. Push the HANDSET RETAINER
out of the slot
4. Insert the HANDSET RETAINER
back into it's slot

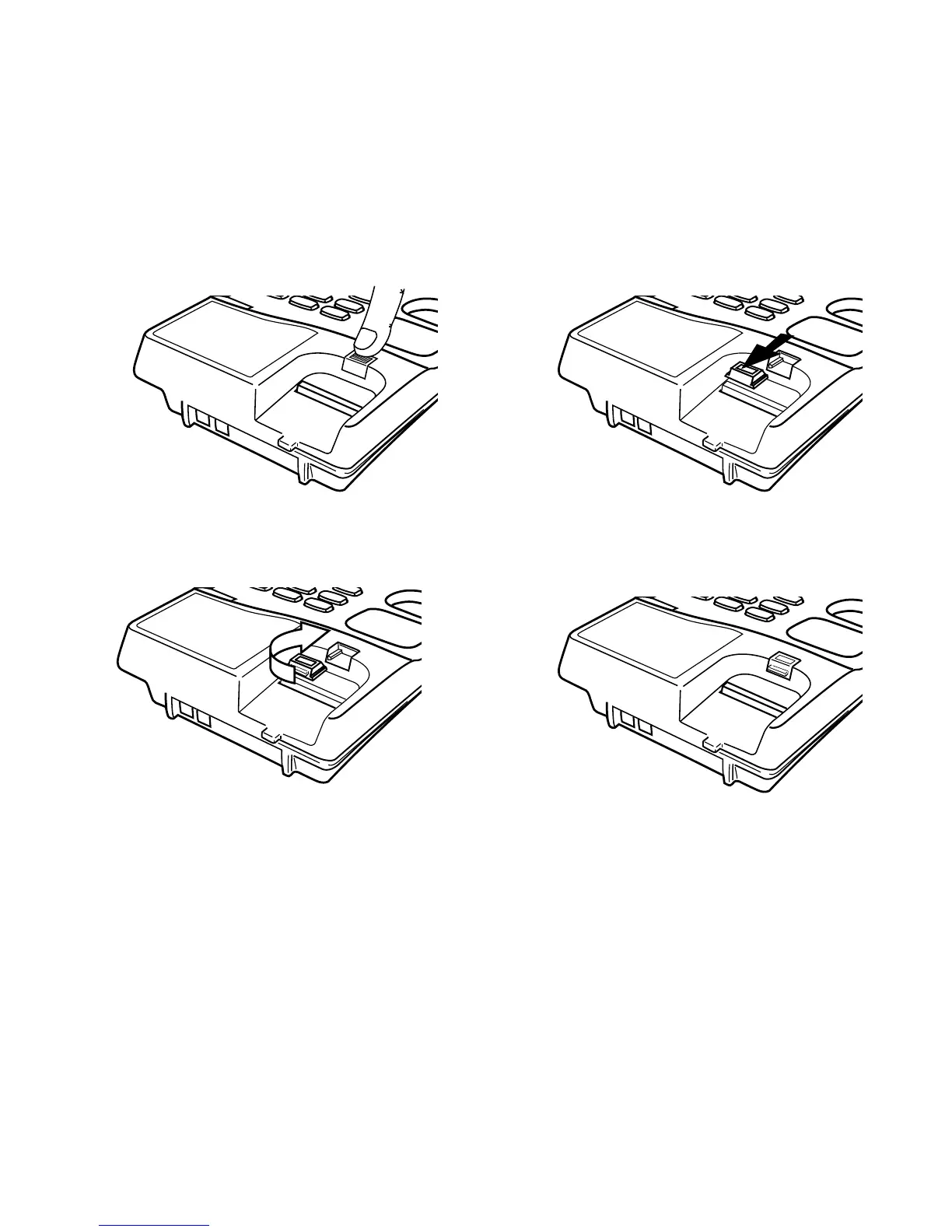

Figure 3 Handset Retainer for Wall Mounting
To enable the handset to be supported in the cradle when the phone is mounted
on the wall, follow the procedure shown in Figure 3 to reverse the HANDSET
RETAINER.
3. Turn the HANDSET
RETAINER 180°
To Next Page
