5
To enable the handset to be supported in the cradle when the phone is
mounted on the wall, follow the procedure shown in Figure 2 to reserve the
HANDSET RETAINER.
1. Use your thumb to press the
HANDSET RETAINER
2. Push the HANDSET RETAINER
out of the slot
4. Insert the HANDSET RETAINER
back into it's slot
3. Turn the HANDSET
RETAINER 180°

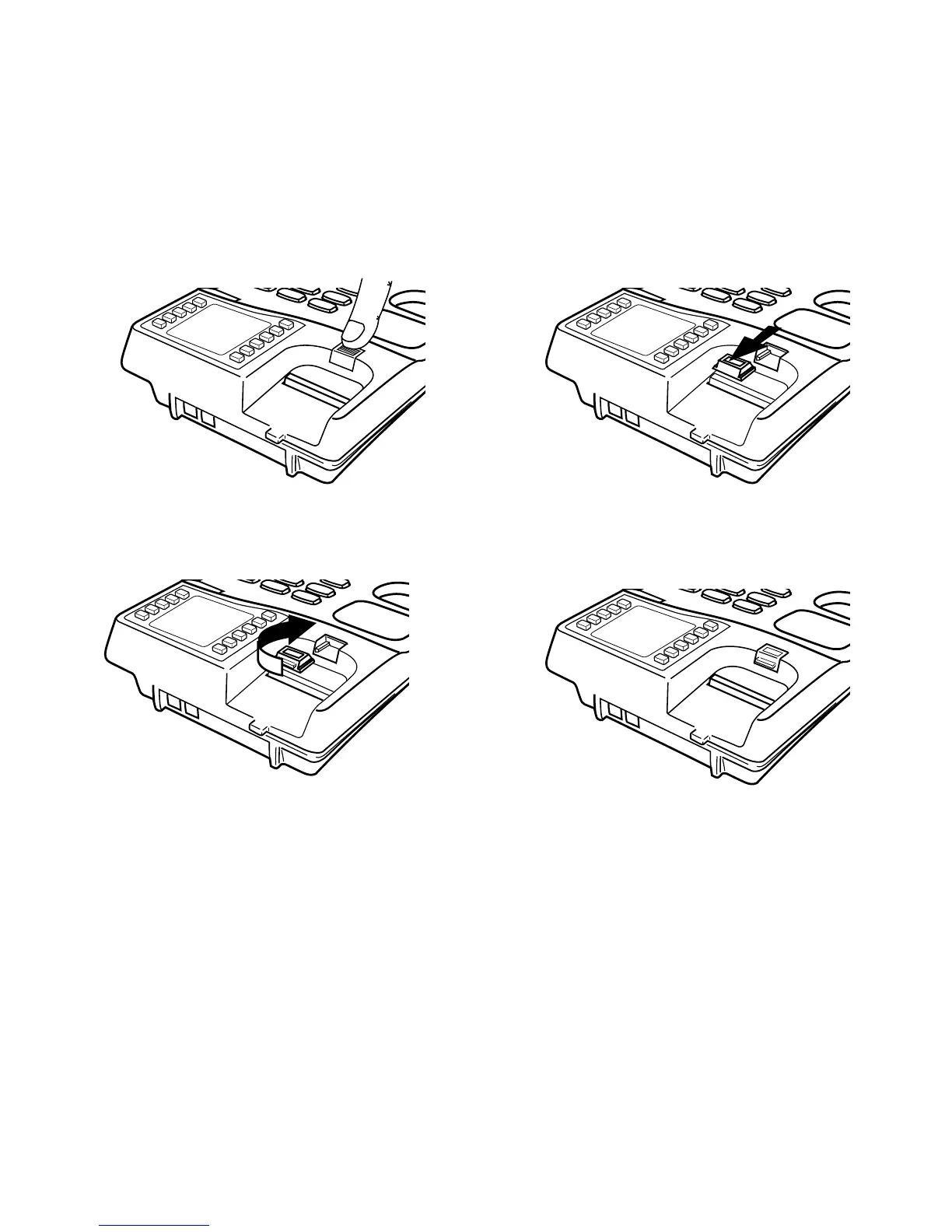

Figure 2 Handset Retainer for Wall Mounting
