4

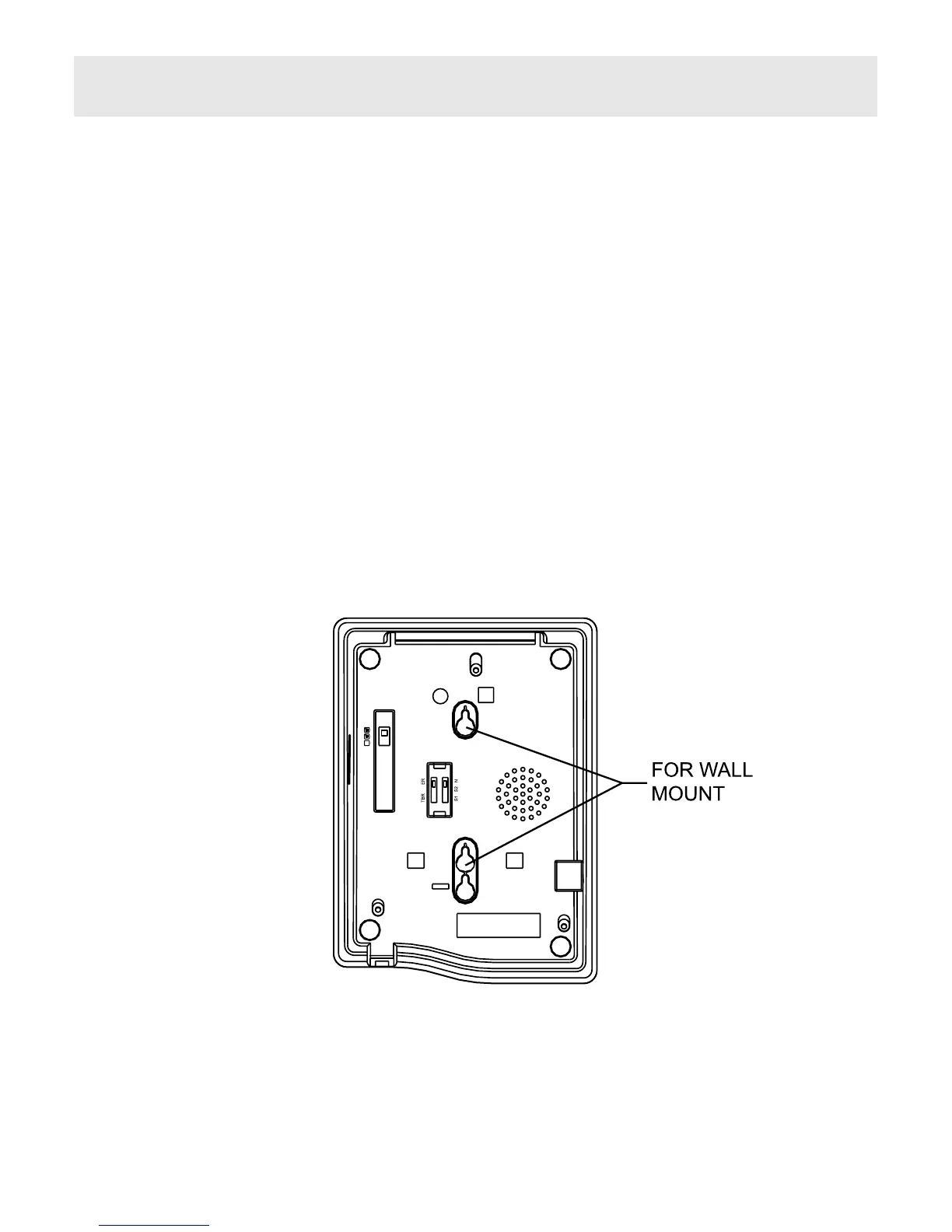

Figure 1 Wall Mounting
2. INSTALLATION
This telephone is designed to plug straight into a modular style socket. If you
do not have one of these sockets, they can be obtained from your Network
Supplier.
Connection
Insert the line cord into the socket. Set the ringer volume control, as desired.
Wall mounting
Using the template supplied, position the telephone where you want to wall
mount. Drill two holes and fix roundheaded screws, leaving them slightly
proud of the surface. Position the telephone over the screws and slide
downwards into place.
