Ringer Pitch Control
On the base of the unit. Allows the pitch of the ringer to be altered from a high
pitch to a low pitch.
Recall Button
For PABX use, to carry out call transfers and access other PABX facilities.
Memory Stores
There are 10 buttons able to retrieve 10 memory locations, each able to store 32
digits.
Redial / Pause Button
If pressed once the dial tone is heard, the last number dialled with capacity of 32
digits will be redialled.
Otherwise , it serves as a pause button inserting a 3.6 second pause in the
number sequence.
UNPLUG THE CONNECTION
TO THE NETWORK BEFORE
OPENING THIS COVER
RINGER
PITCH
HEADSET
MIC ADJUST
S1 S2 N
TBR ER
RINGER PITCH
ADJUST SWITCH
TIMED BREAK /
EARTH RECALL
SWITCH
VOICE
MESSAGING
( N / S2 / S1 )
SWITCH

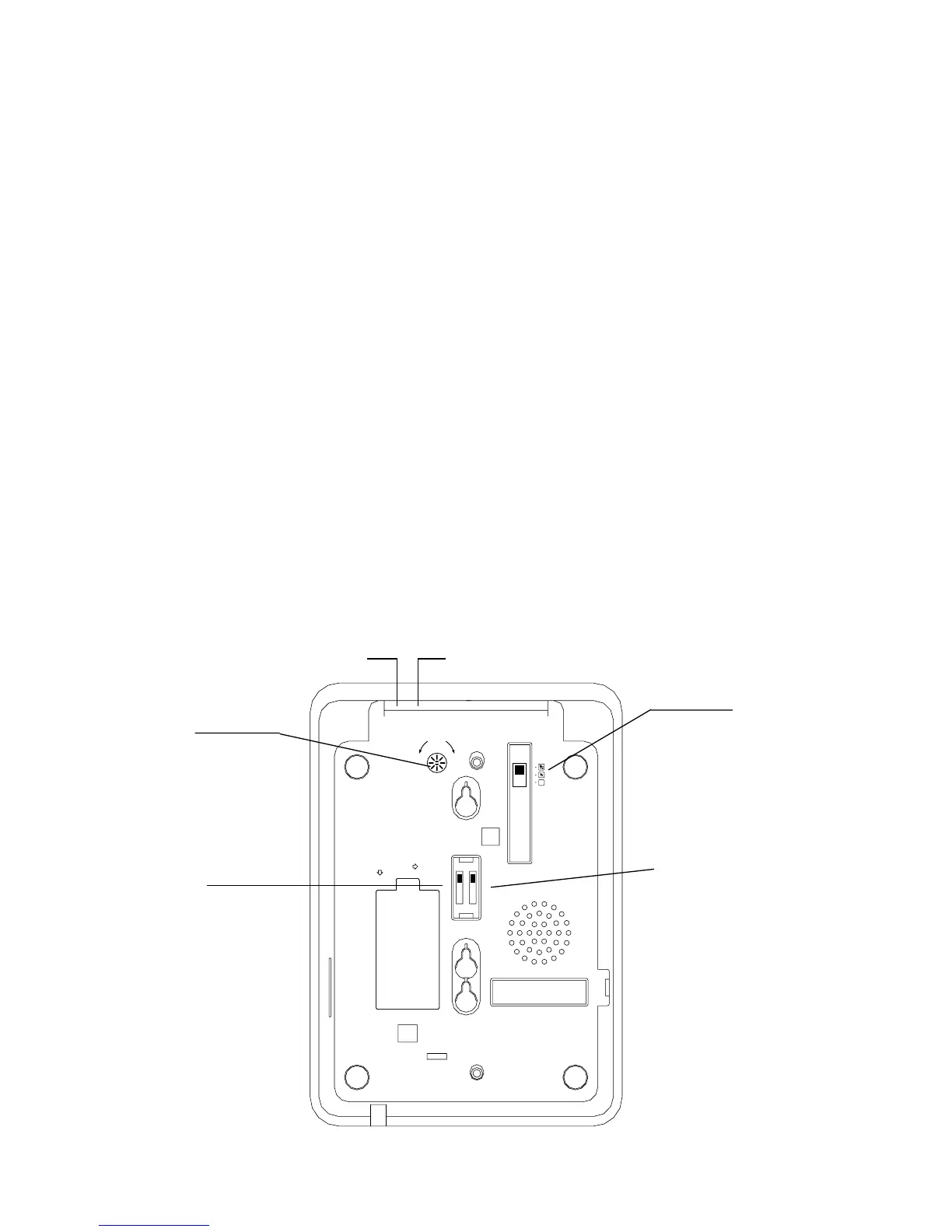

Figure 4 Bottom View
LINE JACK DATA JACK
RINGER HI / LOW / OFF
To Next Page
