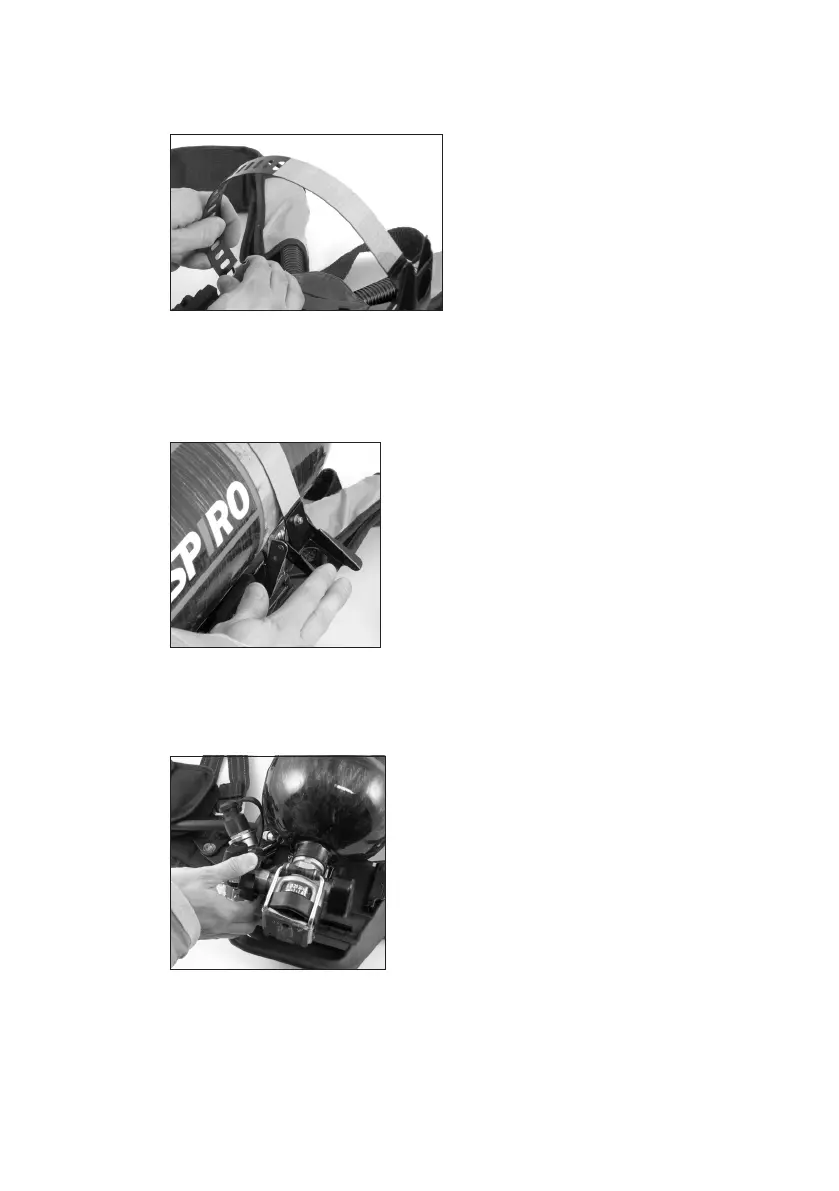

2. Open the toggle link on the harness and check that the strap loop is big enough
for the cylinder to be used. If not, press the small locking hook and enlarge the
diameter of the loop.
3. Slide the cylinder into the strap loop and push it in until the valve snaps into its
holder and locks (The cylinder valve connection thread should be on the opposite
side of the toggle link). Adjust the strap loop by pushing the strap into the guide
plate until it ts snugly around the cylinder making sure that the hook on the side
engages in one of the oblong holes.
4. Close the toggle link.
FOR VERSION WITH HAND WHEEL CONNECTOR:
5. Connect the regulator unit to the cylinder valve. Tighten the handwheel connector
by hand.
