(257IO) MODEL 602 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 04/15/2022
257
A
SAVE THESE INSTRUCTIONS
English
Page 4

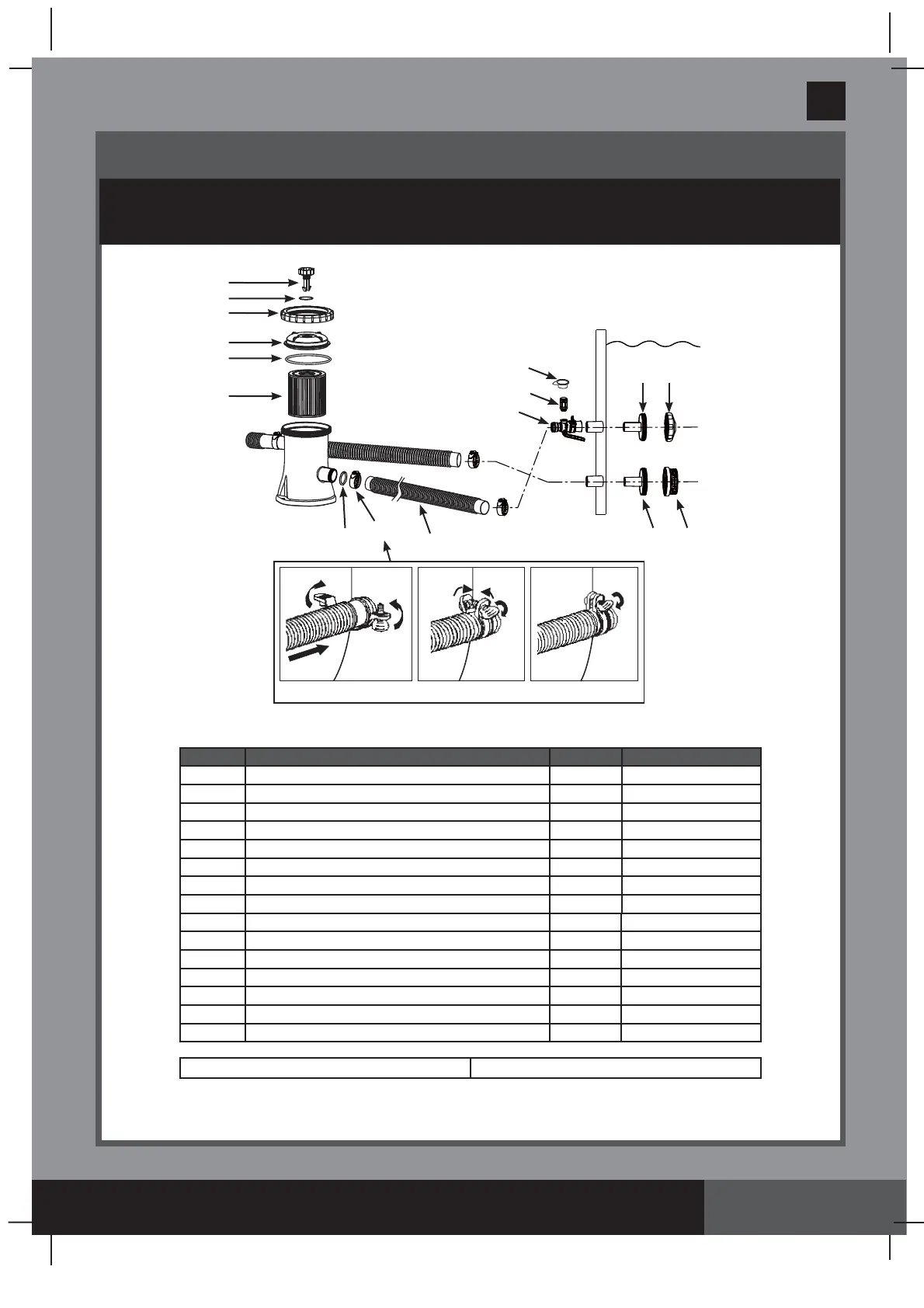

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
Type of fi lter medium Synthetic cartridge #29007
When ordering parts, be sure to quote the model number and part numbers. No tools are
required for the assembly.
NOTE:
Drawings for illustration purpose only. May not refl ect actual product. Not to scale.
1
2
12
3
4
5
910
119
14
15
8
7
6
ABC
13
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 AIR RELEASE VALVE 1 10460
2 VALVE O-RING 1 10264
3 FILTER HOUSING COVER 1 11917
4 COVER SEAL 1 11919
5 FILTER CARTRIDGE 1 29007
6 HOSE SEAL 2 10134
7 HOSE CLAMP 4 11489
8 HOSE 2 10399
9 STRAINER CONNECTOR 2 11070
10 POOL INLET JET NOZZLE 1 13162
11 STRAINER GRID 1 12197
12 THREADED FILTER HOUSING COLLAR 1 11918
13 AIR JET VALVE CAP 1 12373
14 AIR JET VALVE 1 12363
15 POOL INLET AIR ADAPTOR 1 12366
