(93IO) “ISO” BOAT W/O MOTOR MOUNTING (TYPE I) ENGLISH 4.875” X 7.25” 04/08/2020
SAVE THESE INSTRUCTIONS
Page 7
93A

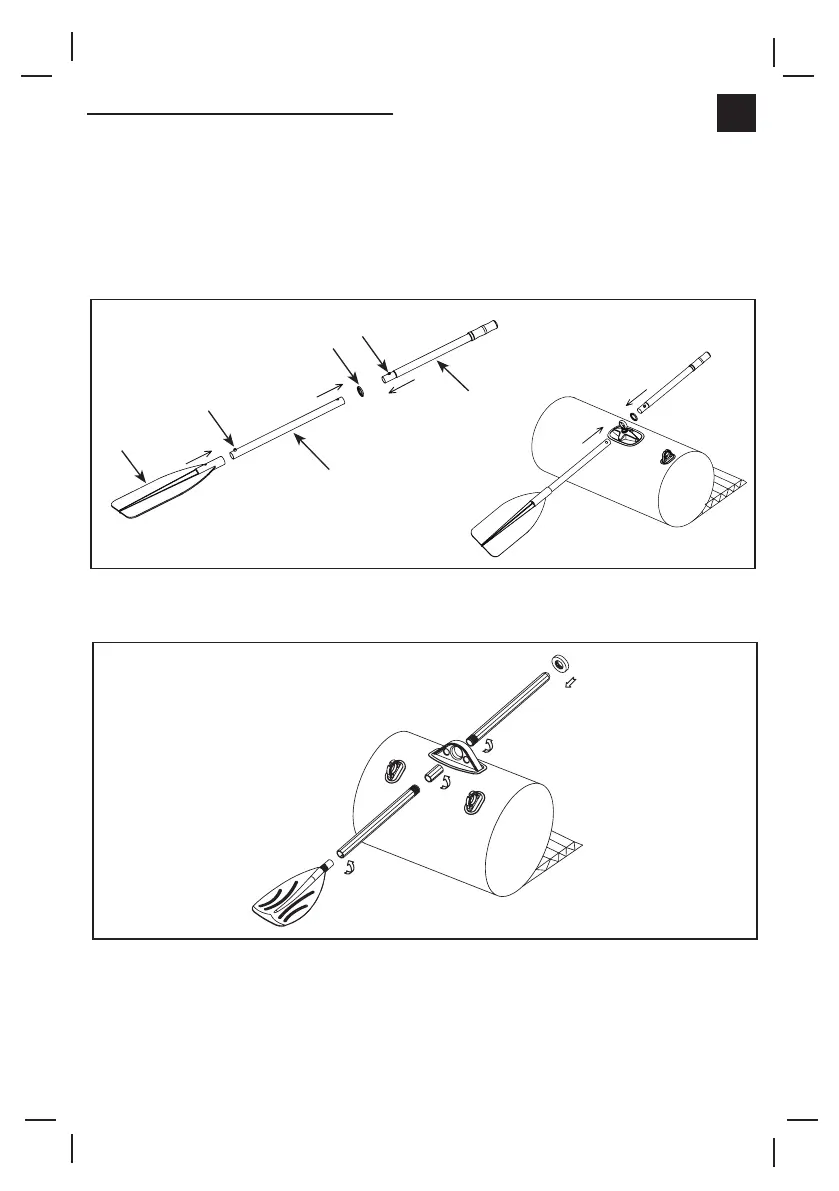

1. Insert “Shaft A” with the pin end first into the blade. Make sure the pin is securely
fastened to the blade.
2. Insert the assembled “Shaft A” through the oar-lock with the blade towards outboard
(water).
3. Place the retainer ring onto the other end of “Shaft B”, from inside of the boat.
4. Press the pin and insert shaft B into shaft A, make sure the pin is securely snapped into
the hole.
5. When the oars are not in use secure the oars onto the oar holders located on each side
of the boat.
FRENCH OARS:
Oar Assembly (Certain Models):
Pin
Pin
Shaft B
Shaft A
Blade
Retainer Ring
To Next Page
