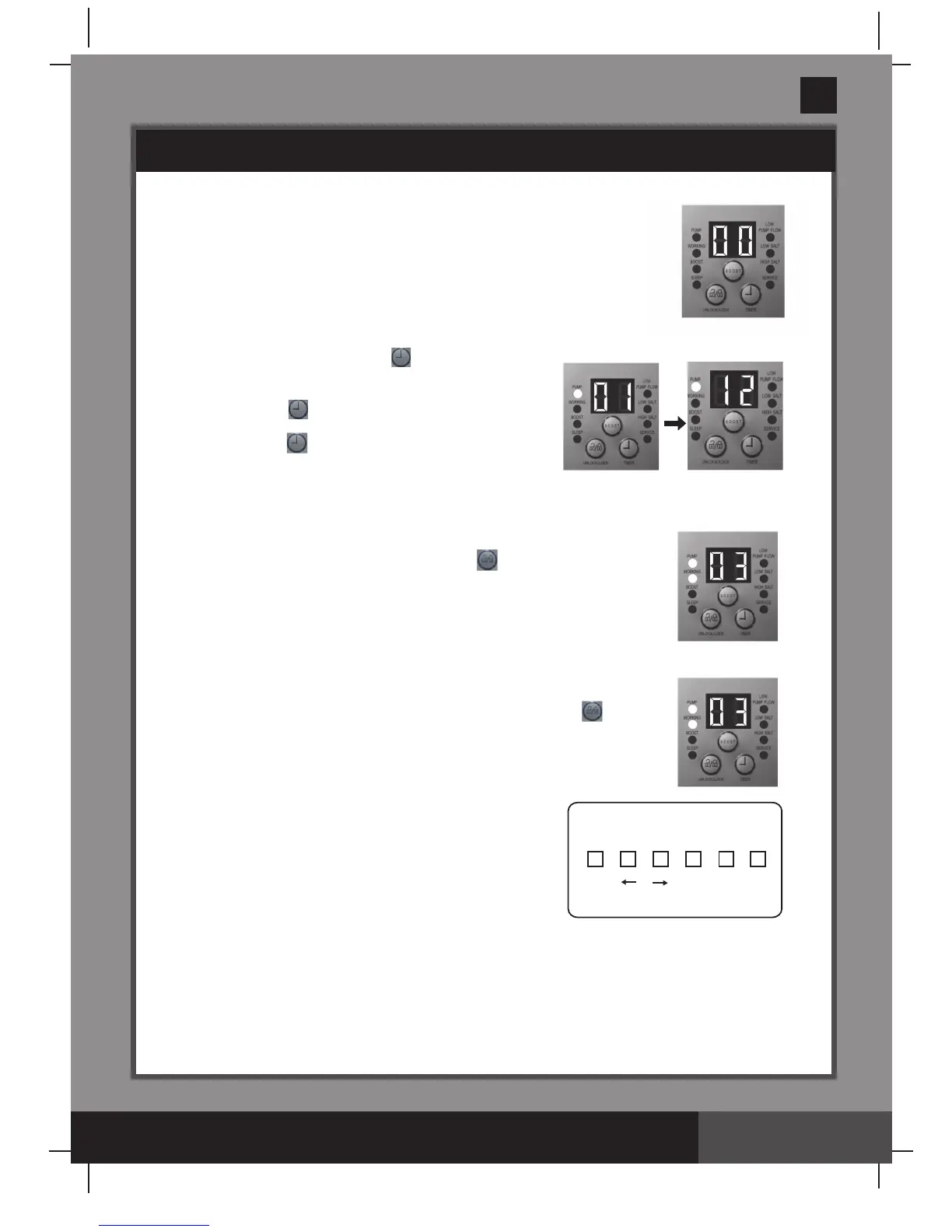

SALTWATER SYSTEM OPERATION
1. Start up the unit:
PlugthepowercordintotheelectricaloutletandtesttheGFCI/RCD
(circuitbreaker).Switchontheunit.WiththeFilterPumpturned“ON”
and operating. The green "Pump" light on the control panel will be on
and flashing code “00” appears on the electronic control station’s
LED, indicating that the unit is ready to be programmed. This is
normal.
2. Set operating hours for Saltwater System:
With code “00” flashing, press button to set the
desired operating hours. See the “Operating Time Table”
for the required operating hours related to each pool
size. Pressing will increase the time from 01 to 12
hours maximum. If you have selected too many hours
keep pressing to repeat the cycle. The built-in timer
will now activate your Saltwater System, at the same
time each day, for the number of hours you have set.
NOTE: The Saltwater System will not operate if the filter
pump is not operating.
3. Lock keypad controls:
With the desired hour value showing, press button until you hear a
“beep”.Thegreen“WORKING”indicatoronthecontrolpanelwilllight
up within a few seconds to indicate that the saltwater system has started
sanitizer production. Locking the control buttons into this setting pre
vents unauthorized changing of the operating cycle.
NOTE: If you forget to lock the keypad controls, the system will
automatically lock it and start working 1 minute later.
4.
Unlock & Readjust operating time if necessary:
The operating hours can be re-adjusted if necessary. Press button
until you hear a “beep” to unlock the keypad and the current
programmedtimewillflash.Repeatsteps2to3.
5. Test the copper concentration in the pool water.
The Saltwater System recommends a copper level
of 0.1 to 0.2 ppm.
This is easily tested by the copper ion
test strips provided. If the test result is 0.1~0.2ppm, go
directly to step 7.
(1 to 12 hours max per cycle)
OK
0
Copper (ppm)
0.1 0.2 0.5 0.9 1.3
